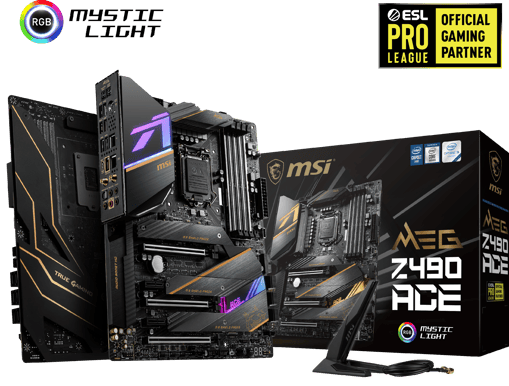

MSI Z490 MEG ACE

Moderkort för Intel 10th Gen

Intel Z490-chipset är en modern plattform för högpresterande Intel10th Gen-system. Stöd för överklockning och gott om anslutningsmöjligheter.

Se vår genomgång av MSI Z490


MEG Z490 ACE
OUTSTANDING COOLING SOLUTION
MSI MEG Z490 ACE CORNERSTONE overview
MSI Frozr Heatsink Design with Zero Frozr Technology Frozr Heatsink Design with Zero Frozr Technology
Exclusive to MEG class models, the active cooling solution is ready to release the maximum performance.
MSI MOSFET Baseplate MOSFET Baseplate
These backplate cool down the MOSFET temperature with solid metal design.
MSI Enlarged Heatsink with 7W/mK Thermal Pad Enlarged Heatsink with 7W/mK Thermal Pad
Enlarged MOS heatsink increases the heat dissipation surface, 7W/mK thermal pad provide better heat transfer to the heat sink.
MSI Heat-pipe Design Heat-pipe Design
Connecting two MOS heatsinks to enlarge the surface of heat dissipation.
MSI M.2 Shield Frozr M.2 Shield Frozr
Onboard M.2 thermal solution keep M.2 SSDs safe while preventing throttling, making them run cooler and faster.
MEG Z490 ACE
UNLIMITED CONNECTIVITY
MSI MEG Z490 ACE LIGHTNING overview
MSI Lightning USB 20G Lightning USB 20G
Lighting ASmedia 3241 USB 3.2 Gen 2x2 controller providing transfer speeds up to 20Gb/s through the Rear USB Type-C port.
MSI Latest Wi-Fi 6 Solution Latest Wi-Fi 6 Solution
The latest wireless solution supports MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.
MSI 2.5G plus Gigabit LAN 2.5G plus Gigabit LAN
Onboard 2.5G, Gigabit LAN and latest Wi-Fi 6 solution deliver the best online experience without lag.
MSI Triple Turbo M.2 Connectors Triple Turbo M.2 Connectors
Turbo M.2 delivers PCI-E Gen3 x4 performance with transfer speeds up to 32 Gb/s for the latest SSDs.
MEG Z490 ACE
STABLE CORNERSTONE OF YOUR SYSTEM
MSI MEG Z490 ACE THERMAL overview
MSI Chest Plate Chest Plate
MSI 6-Layer PCB Design 6-Layer PCB Design
MSI ISL Digital PWM,16 Phases with 90A SPS ISL Digital PWM,16 Phases with 90A SPS
MSI DDR4 Steel Armor & PCIe Steel Armor DDR4 Steel Armor & PCIe Steel Armor
MSI Smart Button Smart Button
ESL PRO LEAGUE PARTNERSHIP
MSI MEG Z490 ACE & MPG SEKIRA 500G
MSI MEG Z490 ACE GAMING RIG
CUSTOMIZE YOUR GAMING RIG
Personalize your PC with 16.8 million colors and 29 effects through Mystic Light RGB LED. Controlled in one click with the Mystic Light APP or a mobile device.
  • Customize colors
  • Customize effects
MSI MEG Z490 ACE THERMAL SOLUTION
THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE
VRM Heatpipe, Frozr Heatsink and MOSFET Baseplate ensure extreme performance with low temp.
MSI MEG Z490 ACE TRIPLE TURBO M.2 WITH SHIELD FROZR
TRIPLE TURBO M.2 WITH SHIELD FROZR
Turbo M.2 delivers PCI-E Gen3 x4 performance with transfer speeds up to 32 Gb/s for the latest SSDs. Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster.
MSI MEG Z490 ACE EXTREME POWER DESIGN
EXTREME POWER DESIGN
MEG Z490 ACE features ISL Digital PWM, 16+1 phases with 90A Smart Power Stage and dual CPU power connectors. Exclusive to MEG class models is Mirrored Power Arrangement for releasing true power.
MSI Lightning USB 20G
4X Faster Lightning USB 20G
The transmission speed of the latest USB 3.2 Gen 2x2 reaches up to 20Gbps, which is four times faster than USB 3.2 Gen 1 solution. Powered by ASMedia 3241 chip, MEG Z490 ACE provides stable high speed transmission to save time for better gaming experience.
MSI MEG Z490 ACE CHEST PLATE
CHEST PLATE
MEG Z490 ACE features a rigid metal backplate that reinforces the motherboard’s edges along the connectors, preventing bending and twisting during installation that could potentially damage or dislodge surface mounted components.

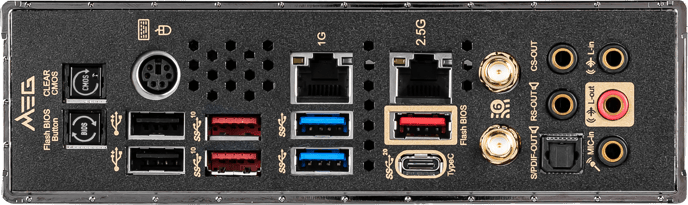

MSI MEG Z490 ACE PRE-INSTALLED IO
PRE-INSTALLED IO SHIELDING
Featuring the pre-installed IO shielding, makes your installation process easier and safer. The patent-pending design protect your IO ports also prevent electrostatic discharge damage, makes your motherboard a strong gaming foundation.
MSI MEG Z490 ACE DUAL LAN WITH 2.5G LAN
DUAL LAN WITH 2.5G LAN
MEG Z490 ACE features high-bandwidth and low-latency 2.5G plus Gigabit LAN for demanding creators and power users. Onboard 2.5Gbps connectivity provides incredible data transfer speed faster than ever before. MSI LAN Manager automatically classifies and prioritizes the latency-sensitive for your applications, giving you the best online experience with low latency.

Specifikationer

Allmänt

Chipset
Intel Z490
Överklockningsstöd
Ja
Processorsocket
Intel 1200
Formfaktor
ATX

Minne

Internminnestyp
DDR4
Minneshastighet (Standard)
2 933 MHz
Minneshastighet (OC)
4 800 MHz
Antalet platser
4 st
Maximalt minne
128 GB
Kanaler
Dual channel

Expansionsplatser

PCI Express generation
PCIe 3.0
PCI Express x16
3 st
PCI Express x1
2 st
CrossFire
Ja
SLI
Ja

USB bakpanel

USB 2.0
2 st
USB 3.0/3.1 Gen1
2 st
USB 3.1 Gen 2
3 st
USB 3.1 Gen 2 Type-C
1 st

SATA

SATA 6.0 Gbit/s
6 st

M.2

Antal M.2
3 st
M.2 storlek plats 1
2242, 2260, 2280, 22110
M.2 gränssnitt plats 1
SATA, PCIE
M.2 key plats 1
M
M.2 storlek plats 2
2242, 2260, 2280
M.2 gränssnitt plats 2
SATA, PCIE
M.2 key plats 2
M
M.2 storlek plats 3
2242, 2260, 2280
M.2 gränssnitt plats 3
PCIE
M.2 key plats 3
M

Övrig lagring

Thunderbolt (Intern)
Ja
Intel Smart Response Technology
Ja
Intel Optane Memory Ready
Ja

RAID

RAID-stöd
Ja
RAID nivå
RAID 0, RAID 1, RAID 10

Nätverk

Trådat nätverk
2 st
Trådad hastighet
10/100/1000 Mbit/s + 2.5Gbit/s
Nätverkskontroller
Intel I219V + Realtek 8125B 2.5G
Trådlöst nätverk
Ja
Trådlös standard
802.11 a/b/g/n/ac/ax
Bluetooth
Ja
Bluetooth standard
5.1

Grafik

Integrerad grafik
Nej

Ljud

Ljudkort
Realtek ALC1220 + ESS SABRE9018Q2C DAC
Analoga utgångar
3st
Analoga ingångar
Ja
Optisk S/PDIF
Ja

Interna kontakter

USB 2.0
4 st, 2 st interna kontakter
USB 3.0/3.1 Gen1
2 st, 1 st interna kontakter
USB 3.1 Gen2 Type-C
1 st, 1 st interna kontakter
4-pin fläkt
8 st
RGB-Header
Ja
Strömkontakter ATX/EPS 12V
2 st 8-pin

Övrigt

LED-belysning
Ja
Medföljande SATA 6 Gb/s
3 st
Längd
305 mm
Bredd
244 mm
Garanti
3 år

Artikelnummer

Paketbredd
26.9 cm
Pakethöjd
6.5 cm
Paketlängd
34.6 cm
Paketvikt
2.327 kg
Vårt ArtNr
1903151
Tillverkarens ArtNr
MEG Z490 ACE
Upplagd
2020-05-06 09:00
Releasedatum
2020‑05‑20
Produktblad

Frågor och Svar

Här kan du ställa frågor du har om produkten. Vi bevakar och svarar själva de frågor som kommer in, men alla är välkomna att svara på frågor och vi uppmuntrar vårt kunniga community att hänga på!

Anderss avatarbild
Anders

Hej Inet. Om jag beställer detta nu under MSI veckan när det inte finns i lager, gäller priset 3699kr efter 2020-10-05? När på ett ungefär beräknar ni få in detta? MVH

0

Inet Kundservices avatarbild
Inet Kundservice

Hej! Priset kommer kvarstå så länge du har kvar din order. Vänligen,

1

Ny fråga

Hittar du inte svaret på din fråga? Ställ din egen här!
