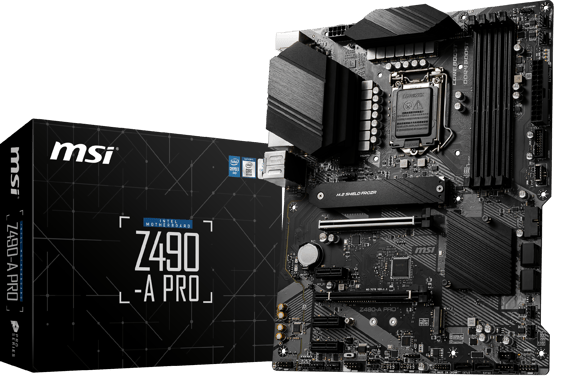

MSI Z490 A PRO

Moderkort för Intel 10th Gen

Intel Z490-chipset är en modern plattform för högpresterande Intel10th Gen-system. Stöd för överklockning och gott om anslutningsmöjligheter.

Se vår genomgång av MSI Z490

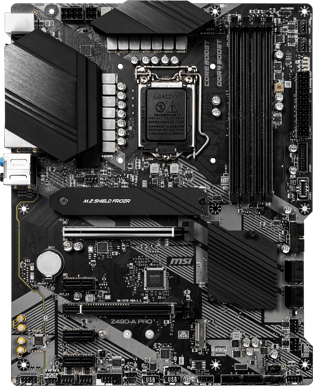

Z490-A PRO
EXCLUSIVE FEATURE
MSI Z490-A PRO CORNERSTONE overview
MSI Core Boost Technology Core Boost Technology
Combining 8+4 pin power connectors and premium layout design, that is ready for unleashing the maximum performance.
MSI 6 layer PCB 6 layer PCB
6 layer PCB provides higher performance and long-lasting system stability without any compromise.
MSI Digital PWM Digital PWM
Highest quality component digital power IC makes sure your system runs smoothly under the most extreme conditions.
MSI PCIe Steel Armor PCIe Steel Armor
Protecting VGA cards against bending and EMI for better performance, stability and strength.
Z490-A PRO
PREMIUM THERMAL SOLUTION
MSI Z490-A PRO THERMAL overview
MSI Extended Heatsink Extended Heatsink
MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.
MSI M.2 Shield Frozr M.2 Shield Frozr
Build-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.
MSI Pump Fan Support Pump Fan Support
Control watercooling pump speeds for best flow and noise control.
Z490-A PRO
HIGH-SPEED TRANSMISSION
MSI Z490-A PRO LIGHTNING overview
MSI Turbo USB Turbo USB
Featuring the TURBO USB 3.2 GEN 2 10Gbps, with reversible Type-C connector.
MSI 2.5G Network Solution 2.5G Network Solution
Featuring premium 2.5G LAN with LAN manager delivers better network experience.
MSI DDR4 Boost DDR4 Boost
The Fully isolated DIMM slots to deliver pure data signals for the best gaming and overclocking performance.
MSI Turbo M.2 Turbo M.2
With 2 x M.2 slots . Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.
MSI Z490-A PRO & 7G07R
MSI Z490-A PRO CORE BOOST
Core Boost
Core Boost technology combines MSI’s premium layout and digital power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, but creating the perfect conditions for your CPU overclocking.
MSI Z490-A PRO Double Power Connectors
Double Power Connectors
8 + 4-pin connectors delivering adequate power supply for multi-core CPU, unleash the ultimate performance with the most reliable motherboard for best gaming experience and extreme overclocking.
MSI Z490-A PRO EXTENDED HEATSINK
EXTENDED HEATSINK
Metal extended heatsink enlarge the surface of heat dissipation, ensures even high-end processors to run in full speed.
MSI Z490-A PRO USB Type-C ready in both Front case panel & Rear IO
USB Type-C ready in both Front case panel & Rear IO
Get all the performance benefits from the USB Type-C connector. This reversible USB connector allows for effortless connecting of USB devices.
MSI Z490-A PRO TWIN TURBO M.2 and M.2 SHIELD FROZR
TWIN TURBO M.2 and M.2 SHIELD FROZR
Cooling your NVMe SSD delays throttling which results in higher overall performance. Part of the motherboards heatsink design which helps avoid SSD throttling by offering the best thermal protection.
MSI Z490-A PRO UNMATCHED MEMORY PERFORMANCE
UNMATCHED MEMORY PERFORMANCE
MSI motherboards are crammed with features to fuel your system’s memory with more speed, higher overclockability and increased stability. Optimized traces and a fully isolated memory circuitry ensures perfect stability and performance, so you never have to worry about your system crashing.
MSI Z490-A PRO MAXIMIUM DATA TRANSFER WITH 2.5G LAN
MAXIMIUM DATA TRANSFER WITH 2.5G LAN
Z490-A PRO features high-bandwidth and low-latency dual Ethernet networks for demanding creators and power users. Onboard 2.5Gbps connectivity provides incredible data transfer speed faster than ever before. MSI LAN Manager automatically classifies and prioritizes the latency-sensitive for your applications, giving you the best online experience with low latency.
MSI Z490-A PRO EASY TO ARRANGE YOUR CABLES
EASY TO ARRANGE YOUR CABLES
Not clever at cable arrangement? MSI Atypical PCB design not only the identity of stylish but also makes SATA and USB cable routing easier. Arranges cable neatly even you are not familiar with system build.
MSI Z490-A PRO MULTIPLE GPU SUPPORTS AND STEEL ARMOR
MULTIPLE GPU SUPPORTS AND STEEL ARMOR

Z490-A PRO supports multiple GPU solution. Optimal PCI-Express slot placement allows for better fitting and airflow. That way, you can enjoy the best graphics at the highest framerate jumping from your screen when running an AMD® CrossFire setup

Steel Armor has more solder points on the PCB for more strength and protects the PCI-Express signals against electromagnetic interference for a stutter-free user experience.

Specifikationer

Allmänt

Chipset
Intel Z490
Överklockningsstöd
Ja
Processorsocket
Intel 1200
Formfaktor
ATX

Minne

Internminnestyp
DDR4
Minneshastighet (Standard)
2 933 MHz
Minneshastighet (OC)
4 800 MHz
Antalet platser
4 st
Maximalt minne
128 GB
Kanaler
Dual channel

Expansionsplatser

PCI Express generation
PCIe 3.0
PCI Express x16
2 st
PCI Express x1
3 st
CrossFire
Ja
SLI
Nej

USB bakpanel

USB 2.0
2 st
USB 3.0/3.1 Gen1
2 st
USB 3.1 Gen 2
1 st
USB 3.1 Gen 2 Type-C
1 st

SATA

SATA 6.0 Gbit/s
6 st

M.2

Antal M.2
2 st
M.2 storlek plats 1
2242, 2260, 2280, 22110
M.2 gränssnitt plats 1
SATA, PCIE
M.2 key plats 1
M
M.2 storlek plats 2
2242, 2260, 2280
M.2 gränssnitt plats 2
PCIE
M.2 key plats 2
M

Övrig lagring

Intel Optane Memory Ready
Ja

RAID

RAID-stöd
Ja
RAID nivå
RAID 0, RAID 1, RAID 5, RAID 10

Nätverk

Trådat nätverk
1 st
Trådad hastighet
2.5 Gbit/s
Nätverkskontroller
Realtek RTL8125-CG 2.5G
Trådlöst nätverk
Nej
Bluetooth
Nej

Grafik

Integrerad grafik
Ja
Grafikmodell
Intel HD Graphics
HDMI-utgång
1 st
DisplayPort-utgång
1 st

Ljud

Ljudkort
Realtek ALC892
Analoga utgångar
4st
Analoga ingångar
Ja
Optisk S/PDIF
Nej

Interna kontakter

USB 2.0
4 st, 2 st interna kontakter
USB 3.0/3.1 Gen1
4 st, 2 st interna kontakter
USB 3.1 Gen1 Type-C
1 st, 1 st interna kontakter
4-pin fläkt
7 st
RGB-Header
Ja
Seriellport
Ja
Strömkontakter ATX/EPS 12V
1 st 8-pin, 1 st 4pin

Övrigt

Medföljande SATA 6 Gb/s
2 st
Längd
305 mm
Bredd
244 mm
Garanti
3 år

Artikelnummer

Paketbredd
26.9 cm
Pakethöjd
6.5 cm
Paketlängd
34.6 cm
Paketvikt
1.319 kg
Vårt ArtNr
1903154
Tillverkarens ArtNr
Z490-A PRO
Upplagd
2020-05-09 09:00
Releasedatum
2020‑05‑20
Produktblad

Frågor och Svar

Här kan du ställa frågor du har om produkten. Vi bevakar och svarar själva de frågor som kommer in, men alla är välkomna att svara på frågor och vi uppmuntrar vårt kunniga community att hänga på!

Samuels avatarbild
Samuel

Om det nätaggregatet man har inte har en 8+4 pin CPU kontakt går det bra att bara koppla in 8 pin om man tänker köra en 10600k.

0

Inet Kundservices avatarbild
Inet Kundservice

Hej, Ja detta kommer att fungera bra. Men om du skall börja med att överklocka in processor så är det rekommenderat att koppla in alla tre kontakter. Vänliga hälsningar!

0

Eriks avatarbild
Erik

Är detta bra till ett intel i5 10600k och ett asus rtx tuf 3080 oc

0

Inet Kundservices avatarbild
Inet Kundservice

Hej! Det skulle fungera utmärkt i den kombinationen. Vänligen,

0
