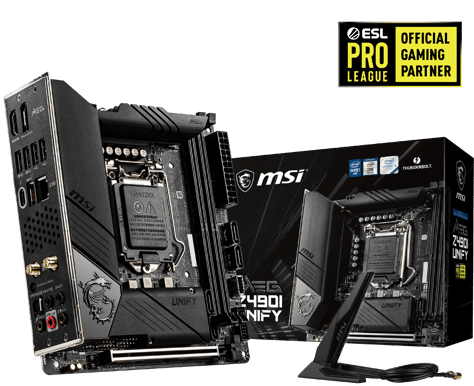

MSI Z490I MEG UNIFY

Moderkort för Intel 10th Gen

Intel Z490-chipset är en modern plattform för högpresterande Intel10th Gen-system. Stöd för överklockning och gott om anslutningsmöjligheter.

Se vår genomgång av MSI Z490


MEG Z490I UNIFY
OUTSTANDING COOLING SOLUTION
MSI MEG Z490I UNIFY CORNERSTONE overview
MSI Frozr Heatsink Design with Zero Frozr Technology Frozr Heatsink Design with Zero Frozr Technology
Exclusive to MEG class models, the active cooling solution is ready to release the maximum performance.
MSI M.2 Shield Frozr M.2 Shield Frozr
Onboard M.2 thermal solution keep M.2 SSDs safe while preventing throttling, making them run cooler and faster.
MSI Aluminum Cover with 7W/mK Thermal Pad Aluminum Cover with 7W/mK Thermal Pad
Fully aluminum IO cover and extended heatsink design provide the maximum surface of heat dissipation.
MSI Heat-pipe Design Heat-pipe Design
Connecting two MOS heatsinks to enlarge the surface of heat dissipation.
MEG Z490I UNIFY
UNLIMITED CONNECTIVITY
MSI MEG Z490I UNIFY LIGHTNING overview
MSI Thunderbolt™ 3 port Thunderbolt™ 3 port
Brings Thunderbolt to USB-C at speeds up to 40 Gb/s, creating one compact port that does it all.
MSI Latest Wi-Fi 6 Solution Latest Wi-Fi 6 Solution
The latest wireless solution supports MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.
MSI 2.5G LAN 2.5G LAN
Onboard 2.5G LAN with LAN manager and latest Wi-Fi 6 solution deliver the best online experience without lag.
MSI Twin Turbo M.2 Connectors Twin Turbo M.2 Connectors
Turbo M.2 delivers PCI-E Gen3 x4 performance with transfer speeds up to 32 Gb/s for the latest SSDs.
MEG Z490I UNIFY
STABLE CORNERSTONE OF YOUR SYSTEM
MSI MEG Z490I UNIFY THERMAL overview
MSI 10-Layer PCB Design 10-Layer PCB Design
Multilayer printed circuit boards design optimized the efficient of power delivers, makes your system runs stable and cool.
MSI PCIe Steel Armor PCIe Steel Armor
Protecting VGA cards against bending and EMI for better performance, stability and strength.
MSI ISL Digital PWM,16 Phases with 90A SPS ISL Digital PWM, Direct 8 Phases Design with 90A SPS
Highest quality components with ISL digital power, 90A Smart Power Stage and titanium choke III make sure your system runs smoothly under the most extreme conditions.
ESL PRO LEAGUE PARTNERSHIP
MSI MEG Z490I UNIFY & MPG SEKIRA 500P
MSI MEG Z490I UNIFY THERMAL SOLUTION
THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE
Aluminum Cover, VRM Heatpipe, and Frozr Heatsink ensure extreme performance with low temp.
MSI MEG Z490I UNIFY TWIN TURBO M.2 WITH SHIELD FROZR
TWIN TURBO M.2 WITH SHIELD FROZR
Turbo M.2 delivers PCI-E Gen3 x4 performance with transfer speeds up to 32 Gb/s for the latest SSDs. Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster.
MSI MEG Z490I UNIFY EXTREME POWER DESIGN
EXTREME POWER DESIGN
MEG Z490I UNIFY features INTERSIL digital PWM, direct 8 phases with 90A Smart Power Stage to unleash the true power of your processors.
MSI MEG Z490I UNIFY ONBOARD THUNDERBOLT™ 3 PORTS
ONBOARD THUNDERBOLT™ 3 PORTS
Experience Thunderbolt 3 with unprecedented interface bandwidth speeds up to 40Gbp and support for up to six daisy-chained devices. Additionally, built in DisplayPort 1.4 output allows for compatible display devices to be attached.

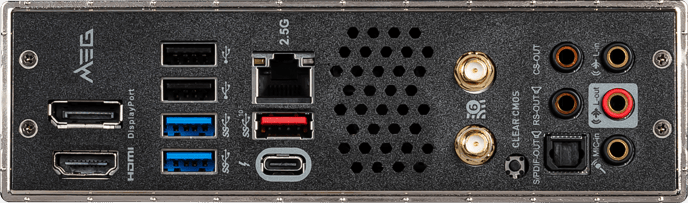

MSI MEG Z490I UNIFY PRE-INSTALLED IO
PRE-INSTALLED IO SHIELDING
Featuring the pre-installed IO shielding, makes your installation process easier and safer. The patent-pending design protect your IO ports also prevent electrostatic discharge damage, makes your motherboard a strong gaming foundation.
MSI MEG Z490I UNIFY MAXIMIUM DATA TRANSFER WITH 2.5G LAN
MAXIMIUM DATA TRANSFER WITH 2.5G LAN
MEG Z490I UNIFY features high-bandwidth and low-latency networks for demanding gamers and power users. Onboard 2.5Gbps connectivity provides incredible data transfer speed faster than ever before. MSI LAN Manager automatically classifies and prioritizes the latency-sensitive for your applications, giving you the best online experience with low latency.
MSI MEG Z490I UNIFY WI-FI 6 & BLUETOOTH
WI-FI 6 & BLUETOOTH
Use your LAN port for online gaming while using WiFi for other online applications. The Wi-Fi 6 adopts latest OFDMA and two-way MU-MIMO technologies, delivering wireless transmission speeds up to 2.4Gbps.
MSI MEG Z490I UNIFY UNMATCHED MEMORY PERFORMANCE
UNMATCHED MEMORY PERFORMANCE
MSI motherboards are crammed with features to fuel your system’s memory with more speed, higher overclockability and increased stability. Optimized traces and a fully isolated memory circuitry ensures perfect stability and performance, so you never have to worry about your system crashing.
MSI MEG Z490I UNIFY AUDIO BOOST 4
AMPLIFY YOUR GAME WITH AUDIO BOOST 4
Like a dedicated sound card, Audio Boost 4 offers a HD audio processor, dedicated amplifier and high quality audio capacitors, all physically isolated from the rest of the motherboard circuitry to ensure the purest audio signal to locate enemies with pin-point accuracy.

Specifikationer

Allmänt

Chipset
Intel Z490
Överklockningsstöd
Ja
Processorsocket
Intel 1200
Formfaktor
Mini-ITX

Minne

Internminnestyp
DDR4
Minneshastighet (Standard)
2 933 MHz
Minneshastighet (OC)
5 000 MHz
Antalet platser
2 st
Maximalt minne
64 GB
Kanaler
Dual channel

Expansionsplatser

PCI Express generation
PCIe 3.0
PCI Express x16
1 st
CrossFire
Nej
SLI
Nej

USB bakpanel

USB 2.0
2 st
USB 3.0/3.1 Gen1
2 st
USB 3.1 Gen 2
1 st
USB 3.1 Gen 2 Type-C
1 st

SATA

SATA 6.0 Gbit/s
4 st

M.2

Antal M.2
2 st
M.2 storlek plats 1
2280
M.2 gränssnitt plats 1
SATA, PCIE
M.2 key plats 1
M
M.2 storlek plats 2
2280
M.2 gränssnitt plats 2
PCIE
M.2 key plats 2
M

Övrig lagring

Intel Smart Response Technology
Ja
Intel Optane Memory Ready
Ja

RAID

RAID-stöd
Ja
RAID nivå
RAID 0, RAID 1, RAID 5, RAID 10

Nätverk

Trådat nätverk
1 st
Trådad hastighet
2.5 Gbit/s
Nätverkskontroller
Realtek RTL8125 2.5G
Trådlöst nätverk
Ja
Trådlös standard
802.11 a/b/g/n/ac/ax
Bluetooth
Ja
Bluetooth standard
5.1

Grafik

Integrerad grafik
Ja
Grafikmodell
Intel HD Graphics
HDMI-utgång
1 st
DisplayPort-utgång
1 st

Ljud

Ljudkort
Realtek ALC1220
Analoga utgångar
3st
Analoga ingångar
Ja
Optisk S/PDIF
Ja

Interna kontakter

USB 2.0
2 st, 1 st interna kontakter
USB 3.0/3.1 Gen1
2 st, 1 st interna kontakter
USB 3.1 Gen2 Type-C
1 st, 1 st interna kontakter
4-pin fläkt
2 st
RGB-Header
Ja
TPM-kontakt
Ja
Strömkontakter ATX/EPS 12V
1 st 8-pin

Övrigt

Medföljande SATA 6 Gb/s
2 st
Längd
170 mm
Bredd
170 mm
Garanti
3 år

Artikelnummer

Paketbredd
26.9 cm
Pakethöjd
6.5 cm
Paketlängd
34.6 cm
Paketvikt
1.2 kg
Vårt ArtNr
1903157
Tillverkarens ArtNr
MEG Z490I UNIFY
Upplagd
2020-05-06 09:00
Releasedatum
2020‑05‑20
