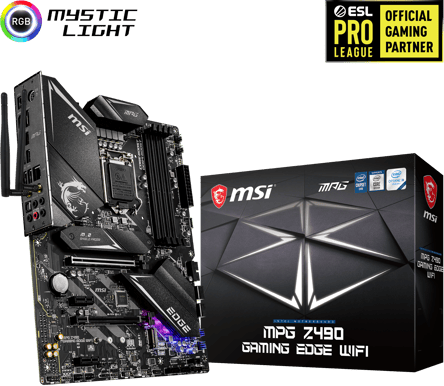

MSI Z490 MPG GAMING EDGE WIFI

Moderkort för Intel 10th Gen

Intel Z490-chipset är en modern plattform för högpresterande Intel10th Gen-system. Stöd för överklockning och gott om anslutningsmöjligheter.

Se vår genomgång av MSI Z490


MPG Z490 GAMING EDGE WIFI
EXCLUSIVE FEATURE
MSI MPG Z490 GAMING EDGE WIFI CORNERSTONE overview
MSI Core Boost Technology Core Boost Technology
Combining 8+4 pin power connectors and premium layout design, that is ready for unleashing the maximum performance.
MSI 6 layer PCB 6 layer PCB
6 layer PCB provides higher performance and long-lasting system stability without any compromise.
MSI Digital PWM Digital PWM
Highest quality component digital power IC makes sure your system runs smoothly under the most extreme conditions.
MSI PCIe Steel Armor PCIe Steel Armor
Protecting VGA cards against bending and EMI for better performance, stability and strength.
MPG Z490 GAMING EDGE WIFI
PREMIUM THERMAL SOLUTION
MSI MPG Z490 GAMING EDGE WIFI THERMAL overview
MSI Aluminum Cover Aluminum Cover
All-metal extended heatsink cover enlarges the surface of heat dissipation, ensuring even high-end processors to run in full speed.
MSI M.2 Shield Frozr M.2 Shield Frozr
Build-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.
MSI Pump Fan Support Pump Fan Support
Control watercooling pump speeds for best flow and noise control.
MPG Z490 GAMING EDGE WIFI
HIGH-SPEED TRANSMISSION
MSI MPG Z490 GAMING EDGE WIFI LIGHTNING overview
MSI Lightning 20G Lightning USB 20G
Built-in USB 3.2 Gen 2x2 port, offers the 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1.
MSI 2.5G Network Solution 2.5G Network Solution
Featuring premium 2.5G LAN with LAN manager delivers better network experience.
MSI Intel Wi-Fi 6 Intel Wi-Fi 6
The latest wireless solution supports MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.
MSI DDR4 Boost DDR4 Boost
The Fully isolated DIMM slots to deliver pure data signals for the best gaming and overclocking performance.
MSI Turbo M.2 Turbo M.2
With 2 x M.2 slots . Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.
ESL PRO LEAGUE PARTNERSHIP
MSI MPG Z490 GAMING EDGE WIFI & MPG SEKITA 500X
MSI MPG Z490 GAMING EDGE WIFI GAMING RIG
CUSTOMIZE YOUR GAMING RIG
Personalize your PC with 16.8 million colors and 29 effects through Mystic Light RGB LED. Controlled in one click with the Mystic Light APP or a mobile device.
  • Customize colors
  • Customize effects
MSI MPG Z490 GAMING EDGE WIFI ALUMINUM COVER
ALUMINUM COVER
All-metal extended heatsink cover enlarge the surface of heat dissipation for even high-end processors to run in full speed.

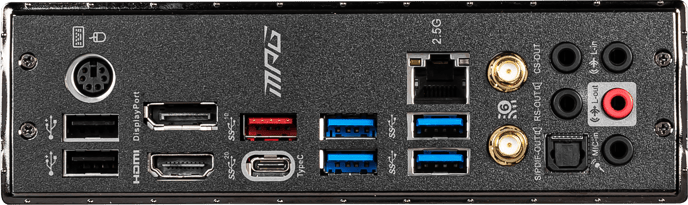

MSI MPG Z490 GAMING EDGE WIFI PRE-INSTALLED IO SHIELDING
PRE-INSTALLED IO SHIELDING
Featuring the pre-installed IO shielding, makes your installation process easier and safer. The patent-pending design protect your IO ports also prevent electrostatic discharge damage, makes your motherboard a strong gaming foundation.
MSI MPG Z490 GAMING EDGE WIFI TWIN TURBO M.2 and M.2 SHIELD FROZR
TWIN TURBO M.2 and M.2 SHIELD FROZR
Cooling your NVMe SSD delays throttling which results in higher overall performance. Part of the motherboards heatsink design which helps avoid SSD throttling by offering the best thermal protection.
MSI Lightning USB 20G
4X Faster Lightning USB 20G
The transmission speed of the latest USB 3.2 Gen 2x2 reaches up to 20Gbps, which is four times faster than USB 3.2 Gen 1 solution. Powered by ASMedia 3241 chip, MPG Z490 GAMING EDGE WIFI provides stable high speed transmission to save time for better gaming experience.
MSI MPG Z490 GAMING EDGE WIFI 12+1+1 DUET RAIL POWER SYSTEM
12+1+1 DUET RAIL POWER SYSTEM
Unleash and sustain maximum performance with an aggressive VRM design with concurrent stable power delivery. Combining 8 + 4-pin power connectors and exclusive Core Boost technology, MPG series motherboard is ready to sustain heavy daily work.
  • CPU Power
  • 1 phases SA Power
  • 1 phases GT Power
  • Digital PWM IC
MSI MPG Z490 GAMING EDGE WIFI 8+4 POWER CONNECTORS
8+4 POWER CONNECTORS
8+4 pin connectors delivering adequate power supply for multi-core CPU, unleash the ultimate performance with the most reliable motherboard for best gaming experience and extreme overclocking.
MSI MPG Z490 GAMING EDGE WIFI MAXIMIUM DATA TRANSFER WITH 2.5G LAN
MAXIMIUM DATA TRANSFER WITH 2.5G LAN
MPG Z490 GAMING EDGE WIFI features high-bandwidth and low-latency Ethernet networks for demanding gamers and power users. Onboard 2.5Gbps connectivity provides incredible data transfer speed faster than ever before. MSI LAN Manager automatically classifies and prioritizes the latency-sensitive for your applications, giving you the best online experience with low latency.
MSI WI-FI 6 & BLUETOOTH
WI-FI 6 & BLUETOOTH
Use your LAN port for online gaming while using WiFi for other online applications. The Wi-Fi 6 adopts latest OFDMA and two-way MU-MIMO technologies, delivering wireless transmission speeds up to 2.4Gbps.
MSI MPG Z490 GAMING EDGE WIFI CORE BOOST
Core Boost
Core Boost technology combines MSI’s premium layout and digital power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. This creates the perfect conditions for multi-core CPU while doing.
MSI MPG Z490 GAMING EDGE WIFI DDR4 BOOST
UNMATCHED MEMORY PERFORMANCE
MSI motherboards are crammed with features to fuel your system’s memory with more speed, higher overclockability and increased stability. Optimized traces and a fully isolated memory circuitry ensures perfect stability and performance, so you never have to worry about your system crashing.
MSI MPG Z490 GAMING EDGE WIFI MULTIPLE GPU SUPPORTS AND STEEL ARMOR
MULTIPLE GPU SUPPORTS AND STEEL ARMOR
MPG Z490 GAMING EDGE WIFI supports multiple GPU solution. Optimal PCI-Express slot placement allows for better fitting and airflow. That way, you can enjoy the best graphics at the highest framerate jumping from your screen when running an AMD® CrossFire setup Steel Armor has more solder points on the PCB for more strength and protects the PCI-Express signals against electromagnetic interference for a stutter-free user experience.

Specifikationer

Allmänt

Chipset
Intel Z490
Överklockningsstöd
Ja
Processorsocket
Intel 1200
Formfaktor
ATX

Minne

Internminnestyp
DDR4
Minneshastighet (Standard)
2 933 MHz
Minneshastighet (OC)
4 800 MHz
Antalet platser
4 st
Maximalt minne
128 GB
Kanaler
Dual channel

Expansionsplatser

PCI Express generation
PCIe 3.0
PCI Express x16
2 st
PCI Express x1
2 st
CrossFire
Ja
SLI
Nej

USB bakpanel

USB 2.0
2 st
USB 3.0/3.1 Gen1
4 st
USB 3.1 Gen 2
1 st
USB 3.1 Gen 2 Type-C
1 st

SATA

SATA 6.0 Gbit/s
6 st

M.2

Antal M.2
2 st
M.2 storlek plats 1
2242, 2260, 2280, 22110
M.2 gränssnitt plats 1
SATA, PCIE
M.2 key plats 1
M
M.2 storlek plats 2
2242, 2260, 2280
M.2 gränssnitt plats 2
SATA, PCIE
M.2 key plats 2
M

Övrig lagring

Intel Optane Memory Ready
Ja

RAID

RAID-stöd
Ja
RAID nivå
RAID 0, RAID 1, RAID 5, RAID 10

Nätverk

Trådat nätverk
1 st
Trådad hastighet
2.5 Gbit/s
Nätverkskontroller
Realtek RTL8125-CG 2.5G
Trådlöst nätverk
Ja
Trådlös standard
802.11 a/b/g/n/ac/ax
Bluetooth
Ja
Bluetooth standard
5.1

Grafik

Integrerad grafik
Ja
Grafikmodell
Intel HD Graphics
HDMI-utgång
1 st
DisplayPort-utgång
1 st

Ljud

Ljudkort
Realtek ALC1200-VD1
Analoga utgångar
3st
Analoga ingångar
Ja
Optisk S/PDIF
Ja

Interna kontakter

USB 2.0
4 st, 2 st interna kontakter
USB 3.0/3.1 Gen1
2 st, 1 st interna kontakter
USB 3.1 Gen1 Type-C
1 st, 1 st interna kontakter
4-pin fläkt
7 st
RGB-Header
Ja
TPM-kontakt
Ja
Strömkontakter ATX/EPS 12V
1 st 8-pin, 1 st 4pin

Övrigt

LED-belysning
Ja
Medföljande SATA 6 Gb/s
2 st
Längd
305 mm
Bredd
244 mm
Garanti
3 år

Artikelnummer

Paketbredd
26.9 cm
Pakethöjd
6.5 cm
Paketlängd
34.6 cm
Paketvikt
2.035 kg
Vårt ArtNr
1903158
Tillverkarens ArtNr
MPG Z490 GAMING EDGE WIFI
Upplagd
2020-05-06 09:00
Releasedatum
2020‑05‑20
