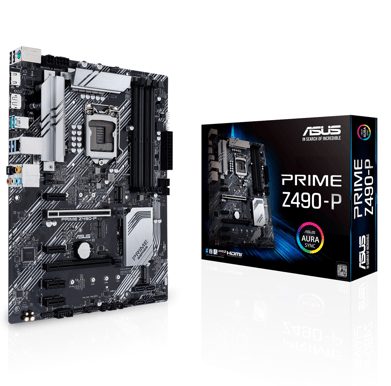

ASUS PRIME Z490-P

Moderkort för Intel 10th Gen

Intel Z490-chipset är en modern plattform för högpresterande Intel10th Gen-system. Stöd för överklockning och gott om anslutningsmöjligheter.

Prime Z490-P

Zenbook 14


• Intel® LGA 1200 socket: Ready for 10th Gen Intel® Core™ processors

• Enhanced power solution: 10+1 DrMOS power stages, 6-layer PCB, ProCool Connector, alloy chokes and durable capacitors for stable power delivery

• Comprehensive cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 4

• ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking

• Ultrafast connectivity: Dual M.2, 1 Gb Ethernet, USB 3.2 Gen 2 Type-A ® and Thunderbolt™ 3 support


Zenbook 14

Prime Z490-P

ASUS Prime series is expertly engineered to unleash the full potential of 10th Gen Intel® Core™ processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime Z490 series motherboards provide daily users and DIY PC builders a range of performance tuning options via included software and hardware.


Zenbook 14

Tune It Your Way

Comprehensive controls form the foundation of the ASUS Prime series. The Prime Z490 motherboard packs flexible tools to tune every aspect of your system, enabling you to tweak performance settings to perfectly match the way you work – maximizing your productivity.

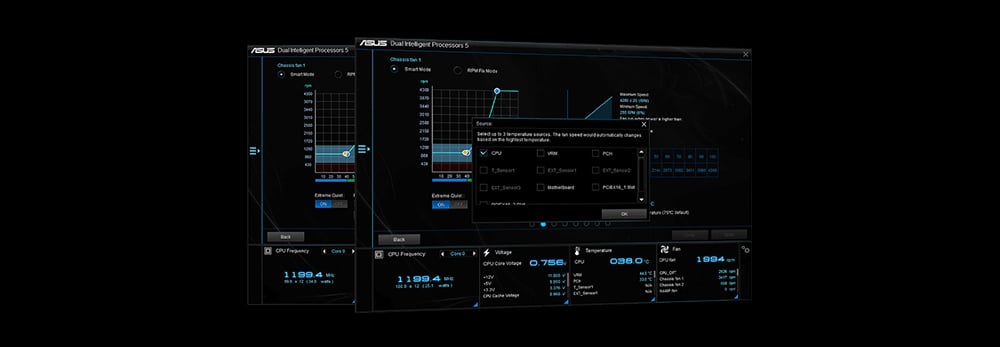

Flexible Air- and Liquid-Cooling Controls

Fan Xpert 4 software provides comprehensive control over fans, and all-in-one (AiO) coolers. Whether cooling with air or water, an Auto-Tuning mode intelligently configures all parameters with a single click. There’s also an Extreme Quiet mode that reduces all fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans, and AiO coolers can also be controlled via the UEFI BIOS.


Zenbook 14

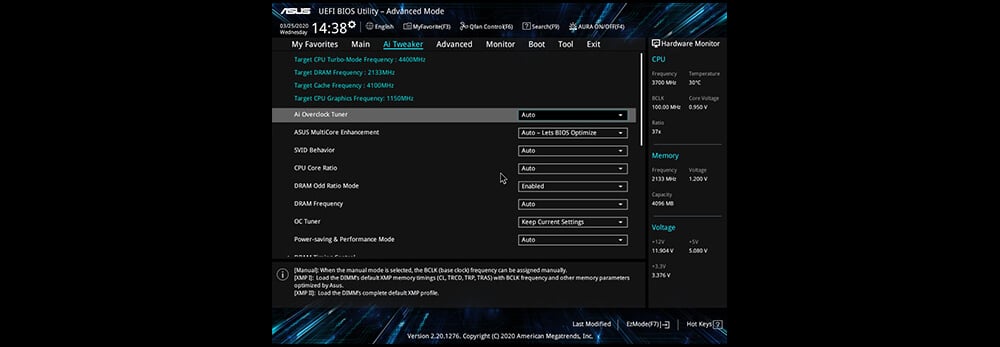

Advanced Tuning for Serious Tweakers

An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various Advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.

Search Function: Quickly and easily find the option or setting you need.

ASUS User Profile: Port configuration settings between different BIOS versions or share them with friends.

FlexKey: Remap the reset button on the chassis to toggle Aura lighting, activate the DirectKey to go straight to the UEFI BIOS, or reset the system.


Zenbook 14

Cool to the Core

Prime Z490 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.

VRM Heatsink and Thermal Pads

Two massive VRM heatsinks with underneath thermal pads improve heat transfer from the MOSFETs and chokes for better cooling performance.


Zenbook 14

Robust Power Design

Stable power is essential to extract every last bit of performance out of 10th Generation Intel Core processors, Prime Z490 motherboard is geared to cater to the demands of these high-core count CPUs.

Multiple Temperature Sources: Each header can dynamically reference three thermal sensors. Fan Xpert 4 allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.

AiO Pump Headers: A dedicated PWM/DC header for self-contained water-cooling setups.

4-Pin PWM/DC Fan: Each onboard header supports auto-detection of PWM or DC fans.

Build on a Solid Foundation

Prime Z490 series is built to handle the additional cores and increased bandwidth of 10th Generation Intel® Core™ processors. A Z490 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.


Zenbook 14

Robust Power Design

Stable power is essential to extract every last bit of performance out of 10th Generation Intel Core processors, Prime Z490 is geared to cater to the demands of these high-core count CPUs.

1. ProCool Connectors: Proprietary connectors augment the motherboard's link to the PSU with 8+4 pin connectors that pass 12 volts of power directly to the processors. The 8-pin connector features solid pins that can handle more current than hollow-pin connectors.

2. 10+1 DrMOS Power Stages: A VRM with 10+1 DrMOS power stages delivers the power and efficiency that the latest Intel processors demand.


Zenbook 14

Dual M.2 (up to 32 Gbps)

Dual M.2 slots support data-transfer speeds of up to 32 Gbps via x4 PCI Express® 3.0 bandwidth, enabling quicker boot-up and app load times with OS or application drives.

* Actual transmission speeds will be lower than the theoretical maximum speed.


Zenbook 14

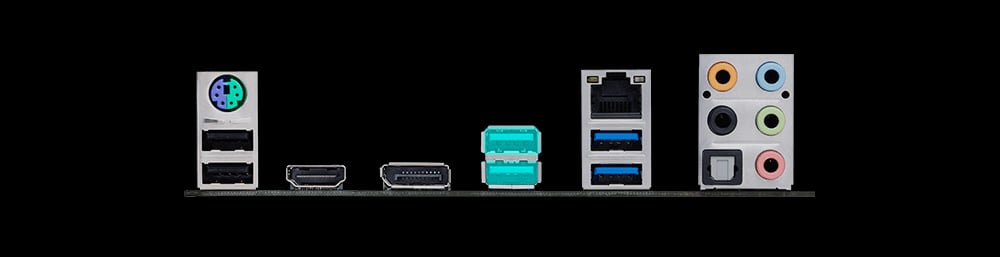

USB 3.2 Gen 2 Type-A

Numerous USB ports support high-end rigs loaded with peripherals, including a rear-panel USB Type-A connectors with fast USB 3.2 Gen 2 connectivity for compatible cases.


Zenbook 14

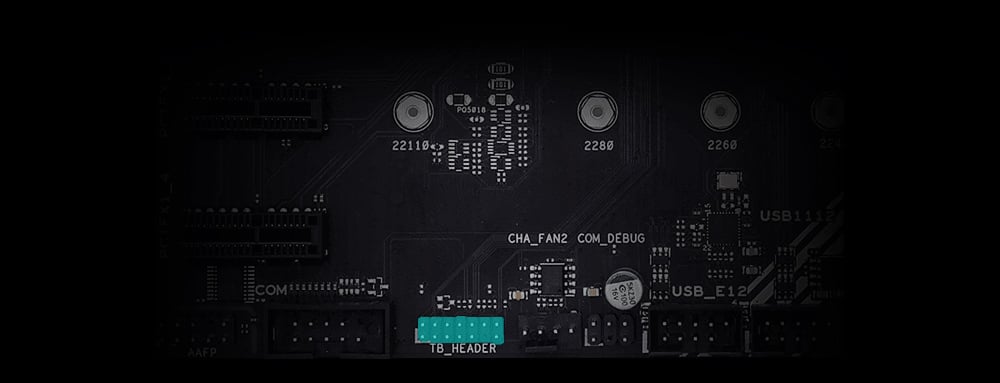

Thunderbolt™ 3 Support

Prime Z490-P supports ThunderboltEX 3-TR, an Intel certified Thunderbolt™ 3 add-on card that enables bi-directional speeds of up to 40 Gbps via a single cable. Additionally, an integrated Thunderbolt 3 header can support up to six devices in a daisy-chain and provide up to 100 watts of power to fast-charge devices.

• Strengthened solder points around the PCIe and DIMM pins.

• Metal inserts keep graphics cards properly aligned during installation.

• The metal side-panels feature hooks that firmly clasp the slot body.


Zenbook 14

SafeSlot Core+

SafeSlot Core+ is the ASUS-exclusive PCIe slot fortified with a one-piece stainless-steel brace that shields the slot to protect it from damage. The metal cover is tightly secured to the slot with hooks, and the entire assembly is firmly anchored to the PCB with strengthened solder points to provide a secure foundation for heavyweight graphics cards.

• Strengthened solder points around the PCIe and DIMM pins.

• Metal inserts keep graphics cards properly aligned during installation.

• The metal side-panels feature hooks that firmly clasp the slot body.


Specifikationer

Allmänt

Chipset
Intel Z490
Överklockningsstöd
Ja
Processorsocket
Intel 1200
Formfaktor
ATX

Minne

Internminnestyp
DDR4
Minneshastighet (Standard)
2 933 MHz
Minneshastighet (OC)
4 600 MHz
Antalet platser
4 st
Maximalt minne
128 GB
Kanaler
Dual channel

Expansionsplatser

PCI Express generation
PCIe 3.0
PCI Express x16
2 st
PCI Express x1
4 st
CrossFire
Ja
SLI
Nej

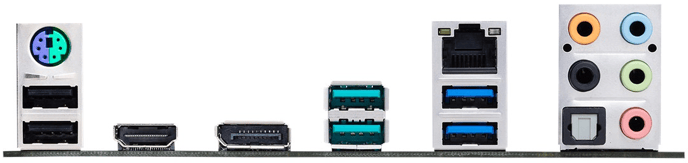

USB bakpanel

USB 2.0
2 st
USB 3.0/3.1 Gen1
2 st
USB 3.1 Gen 2
2 st

SATA

SATA 6.0 Gbit/s
4 st

M.2

Antal M.2
2 st
M.2 storlek plats 1
2242, 2260, 2280
M.2 gränssnitt plats 1
SATA, PCIE
M.2 key plats 1
M
M.2 storlek plats 2
2242, 2260, 2280, 22110
M.2 gränssnitt plats 2
SATA, PCIE
M.2 key plats 2
M

Övrig lagring

Intel Optane Memory Ready
Ja

RAID

RAID-stöd
Ja
RAID nivå
RAID 0, RAID 1, RAID 5, RAID 10

Nätverk

Trådat nätverk
1 st
Trådad hastighet
10/100/1000 Mbit/s
Nätverkskontroller
Realtek RTL811H
Trådlöst nätverk
Nej
Bluetooth
Nej

Grafik

Integrerad grafik
Ja
Grafikmodell
Intel HD Graphics
HDMI-utgång
1 st
DisplayPort-utgång
1 st

Ljud

Ljudkort
Realtek ALC887
Analoga utgångar
3st
Analoga ingångar
Ja
Optisk S/PDIF
Ja

Interna kontakter

USB 2.0
4 st, 2 st interna kontakter
USB 3.0/3.1 Gen1
4 st, 2 st interna kontakter
4-pin fläkt
4 st
RGB-Header
Ja
Seriellport
Ja
Strömkontakter ATX/EPS 12V
1 st 8-pin, 1 st 4pin

Övrigt

LED-belysning
Ja
Medföljande SATA 6 Gb/s
3 st
Längd
305 mm
Bredd
244 mm
Garanti
3 år

Artikelnummer

Paketbredd
7 cm
Pakethöjd
26.3 cm
Paketlängd
29.1 cm
Paketvikt
1.23 kg
Vårt ArtNr
1903192
Tillverkarens ArtNr
90MB12V0-M0EAY0
Upplagd
2020-05-06 09:00
Releasedatum
2020‑05‑20
