ASUS ROG STRIX Z490-A GAMING

Moderkort för Intel 10th Gen

Intel Z490-chipset är en modern plattform för högpresterande Intel10th Gen-system. Stöd för överklockning och gott om anslutningsmöjligheter.

Vi spanar in intressanta ASUS Z490-modeller

Z490-A Gaming motsvarar Z490-F, men har annat utseende


Zenbook 14


ROG Strix Z490-A Gaming

Zenbook 14


• Intel® LGA 1200 socket: Ready for 10th Gen Intel® Core™ processors

• Optimal Power Solution: 12+2 power stages with ProCool II power connector, high-quality alloy chokes and durable capacitors to support multi-core processors

• High-performance Networking: M.2 socket with E-key and Intel® 2.5 Gb Ethernet with ASUS LANGuard

• Best Gaming Connectivity: Features USB 3.2 Gen 2 Type-A and Type-C® connectors, and supports HDMI™ 1.4 and DisplayPort 1.4

• Intelligent Control: ASUS-exclusive tools including AI Overclocking, AI Cooling and AI Networking, helping you configure your gaming build easily

• DIY Friendly Design: Pre-mounted I/O shield, BIOS FlashBack™, Q-LEDs and FlexKey

• Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including RGB headers and Gen 2 addressable headers

• Industry-leading Gaming Audio: High fidelity audio with SupremeFX S1220A, DTS® Sound Unbound and Sonic Studio III to draw you deeper into the action


Zenbook 14

Power Delivery Enhancements

Digital power control and an array of power stages ensure ROG Strix Z490-A Gaming has the muscle to control the latest Intel CPUs.

1. The ProCool II socket is built to tight specifications to ensure flush contact with the PSU power lines and have a metal armour for improved heat dissipation. The connector's lower impedance helps prevent hotspots and improves reliability.

2. ROG Strix Z490-A Gaming utilizes 12+2 DrMOS power stages to combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that the latest Intel processors demand.

3. Superior chokes and durable capacitors are engineered to resist extreme temperatures and provide up to 110% better performance than the industry standard.


Zenbook 14

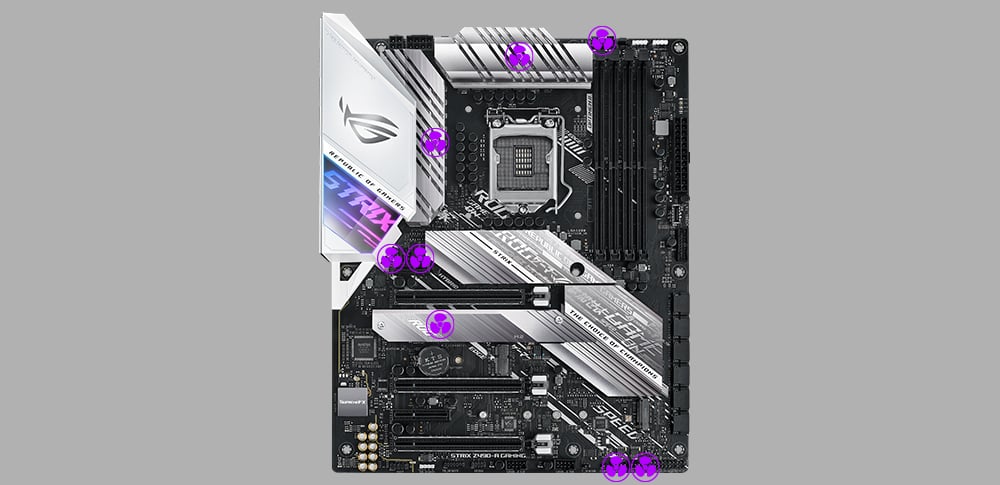

Cooler By Design

Multiple temperature sources: Each header can be set to monitor and react to three user-configurable thermal sensors for workload-based cooling. And all settings can be easily managed by Fan Xpert 4 or UEFI.

4-pin PWM/DC Fan Header: Every onboard header supports auto-detection of PWM or DC fans.

AIO Pump Fan Header: A dedicated PWM/DC header for self-contained water-cooling setups.

CPU Fan Header: A dedicated pair of PWM/DC fan headers for CPU coolers.


Zenbook 14

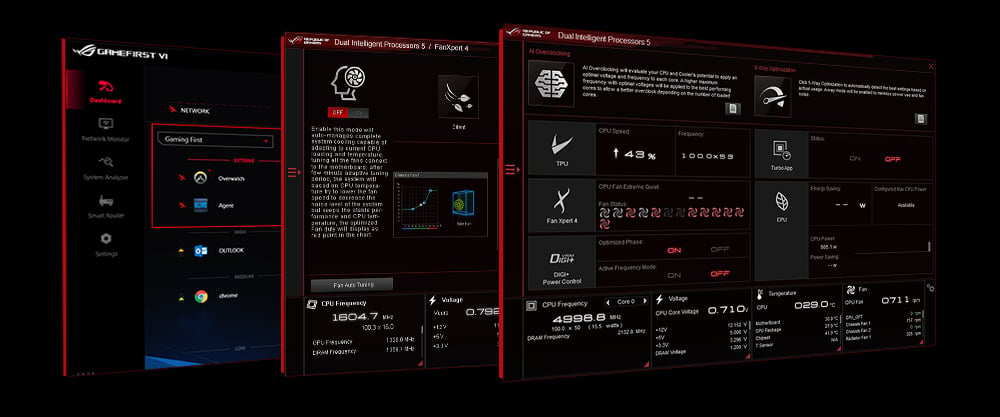

Intelligent Control

Our ROG engineers developed and extensively-tested intelligent software solutions to ensure your system stays in optimal condition.

AI Overclocking: Tuning is now faster and smarter than ever before. AI Overclocking profiles the CPU and cooling to predict the optimal configuration for each system.

AI Cooling: AI Cooling automatically manages and controls motherboard connected fans, ensuring the most efficient settings depending on the current system load and temperature.

AI Networking: GameFirst VI optimizes and organizes network bandwidth, effectively reducing jitter and eliminating spike lag to ensure smooth online gameplay.


Zenbook 14

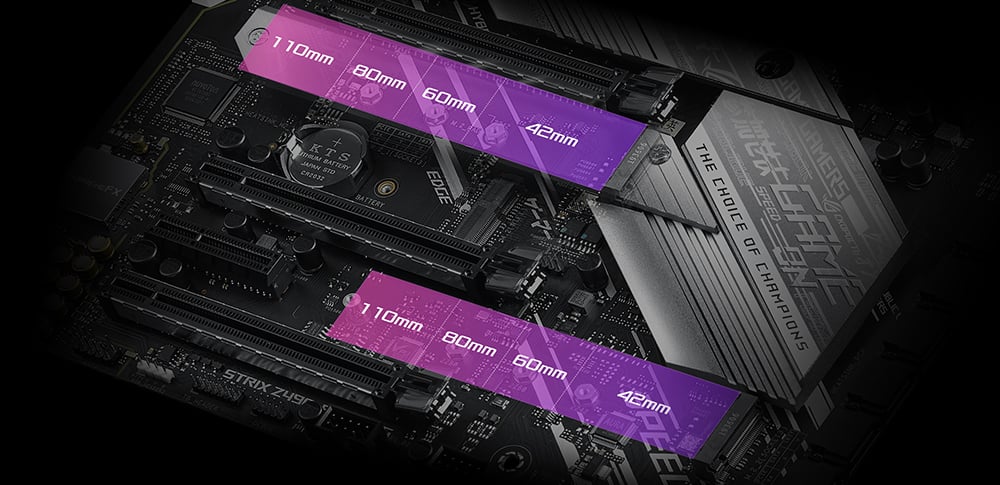

Dual PCIe 3.0 M.2

Two M.2 slots are available, with one supporting both SATA and PCIe 3.0 x4 modes, and the other supporting PCIe 3.0 x4 for NVMe. Together, they give you the fastest and most-flexible M.2 interface available.


Zenbook 14

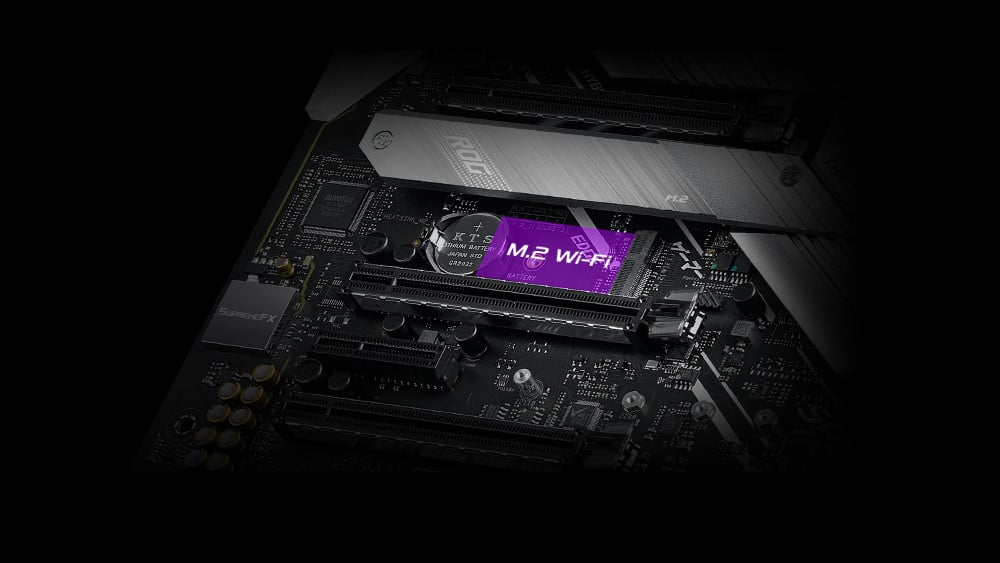

Next-gen Connectivity

M.2 Socket with E Key: Integrated with Intel® wireless-AX/AC technology, M.2 supports CNVi/PCIe/USB mode to build a faster and more cost-effective WiFi and Bluetooth® 5.1 solution.

Intel 2.5G Ethernet: Onboard 2.5G Ethernet gives your wired connection a boost, with up to a 2.5X improvement over standard Ethernet connections for faster file transfers, smoother lag-free gaming and high-res video streaming.


Zenbook 14

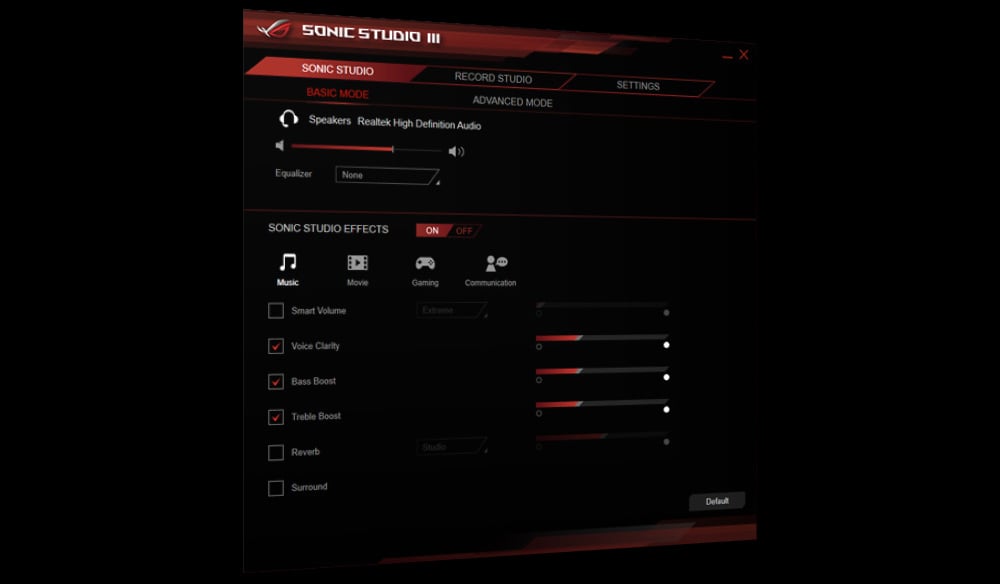

Sonic Studio III

Sonic Studio supports HRTF-based (head-related transfer function*) virtual surround for VR headsets, casting an immersive aural landscape that draws you deeper into the action. The intuitive Sonic Studio interface also offers a range of EQ options and one-click presets, allowing you to tailor acoustics to suit personal preferences or the characteristics of your headset.

Sonic Studio Link

The new Sonic Studio Link now allows you to apply Sonic Studio effects on all playback devices. Simply press the Sonic Studio Link button to enjoy the effect on any playback devices.

Sonic Studio Virtual Mixer

A virtual audio device that lets streamers combine sound output and output from different apps. This allows you to mix your voice and video game audio within streaming software. A variety of adjustment and monitoring tools provide a high level of digital control.


Zenbook 14

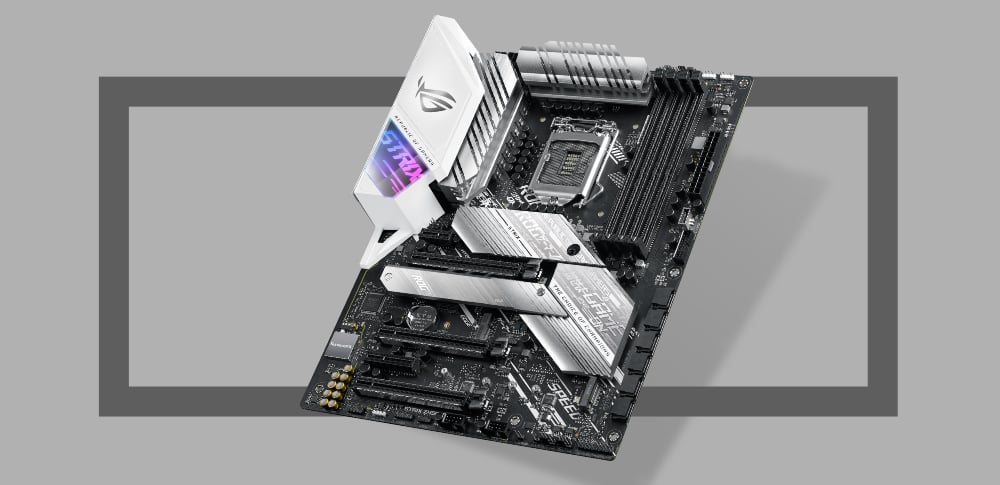

Undeniably ROG Strix

ROG Strix Z490-A Gaming embodies the Strix spirit, with its white and silver color scheme and cyberpunk-inspired markings across its stainless steel I/O shroud. It’s perfect for builds with stand-out aesthetics.


Zenbook 14

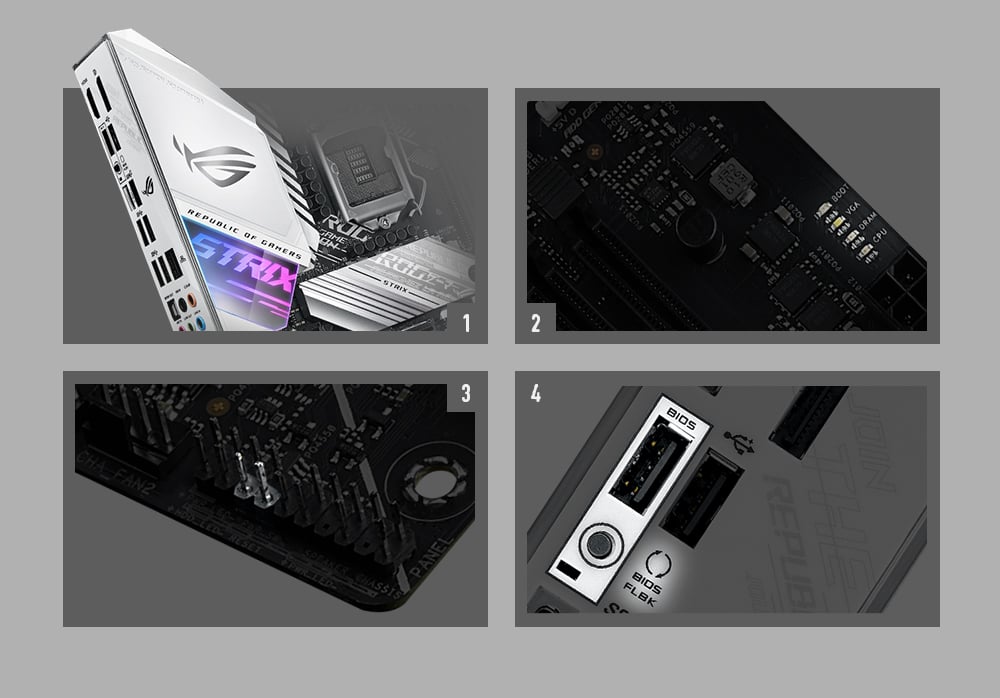

DIY Friendly

1. Pre-mounted I/O shield: ROG’s patented I/O shield is finished in sleek matte black and comes pre-mounted to make it easy to install the motherboard.

2. Q-LEDS: Four onboard LEDs indicate power status, and any problem with the CPU, memory, graphics card or boot device for quick diagnosis.

3. FlexKey: The front-panel header lets you customize the reset button on the front-panel of your chassis to provide quick access to your choice of Aura lighting controls, DirectKey or system reset.

4. BIOS FlashBack™: BIOS FlashBack™ is the simplest and safest (UEFI) BIOS update method. Simply drop the (UEFI) BIOS file onto a FAT32 formatted USB stick, plug it into the USB BIOS FlashBack™ port and press the button. Updates can even be performed without having memory or a CPU installed.


Specifikationer

Allmänt

Chipset
Intel Z490
Överklockningsstöd
Ja
Processorsocket
Intel 1200
Formfaktor
ATX

Minne

Internminnestyp
DDR4
Minneshastighet (Standard)
2 933 MHz
Minneshastighet (OC)
4 600 MHz
Antalet platser
4 st
Maximalt minne
128 GB
Kanaler
Dual channel

Expansionsplatser

PCI Express generation
PCIe 3.0
PCI Express x16
3 st
PCI Express x4
1 st
PCI Express x1
1 st
CrossFire
Ja
SLI
Nej

USB bakpanel

USB 2.0
2 st
USB 3.0/3.1 Gen1
4 st
USB 3.1 Gen 2
1 st
USB 3.1 Gen 2 Type-C
1 st

SATA

SATA 6.0 Gbit/s
6 st

M.2

Antal M.2
2 st
M.2 storlek plats 1
2242, 2260, 2280, 22110
M.2 gränssnitt plats 1
SATA, PCIE
M.2 key plats 1
M
M.2 storlek plats 2
2242, 2260, 2280
M.2 gränssnitt plats 2
SATA, PCIE
M.2 key plats 2
M

Övrig lagring

Intel Optane Memory Ready
Ja

RAID

RAID-stöd
Ja
RAID nivå
RAID 0, RAID 1, RAID 5, RAID 10

Nätverk

Trådat nätverk
1 st
Trådad hastighet
2.5 Gbit/s
Nätverkskontroller
Intel I225-V
Trådlöst nätverk
Nej
Bluetooth
Nej

Grafik

Integrerad grafik
Ja
Grafikmodell
Intel HD Graphics
HDMI-utgång
1 st
DisplayPort-utgång
1 st

Ljud

Ljudkort
ROG SupremeFX S1220A
Analoga utgångar
3st
Analoga ingångar
Ja
Optisk S/PDIF
Ja

Interna kontakter

USB 2.0
4 st, 2 st interna kontakter
USB 3.0/3.1 Gen1
2 st, 1 st interna kontakter
USB 3.1 Gen1 Type-C
1 st, 1 st interna kontakter
4-pin fläkt
4 st
RGB-Header
Ja
Strömkontakter ATX/EPS 12V
1 st 8-pin, 1 st 4pin

Övrigt

LED-belysning
Ja
Medföljande SATA 6 Gb/s
4 st
Längd
305 mm
Bredd
244 mm
Garanti
3 år

Artikelnummer

Paketbredd
27.3 cm
Pakethöjd
6.8 cm
Paketlängd
33.8 cm
Paketvikt
1.938 kg
Vårt ArtNr
1903194
Tillverkarens ArtNr
90MB12Y0-M0EAY0
Upplagd
2020-05-12 17:10
Releasedatum
2020‑05‑20
Produktblad
