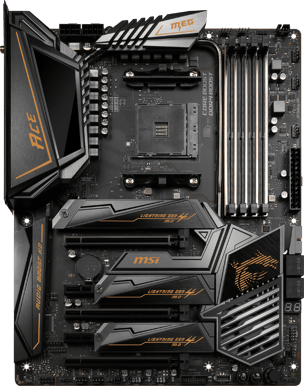

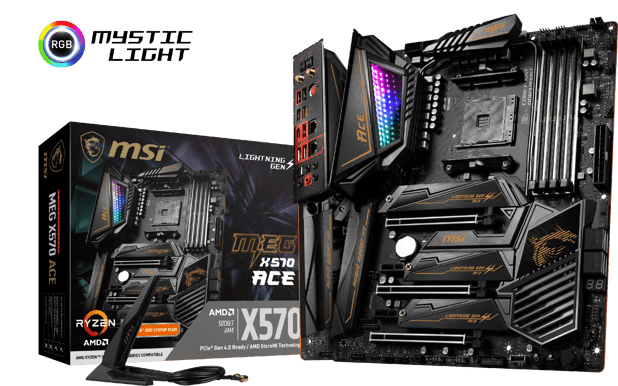

MSI X570 MEG ACE

Välutrustat moderkort

X570 är en toppmodern och högpresterande plattform tillhörande AMD Ryzen 3000-seriens processorer.
AMD X570 är utrustat med stöd för PCI Express 4.0 vilket ger dubbelt så hög bandbredd jämfört mot tidigare generationer..

Se vår sammanfattning av AMD X570


Så här uppdaterar du BIOS utan CPU med MSI Flash BIOS-knappen.


MEG X570 ACE
ACE YOUR ENEMY
MSI MEG X570 ACE overview
MSI CORE BOOST Core Boost Technology
Combining dual 8 pin power connectors and premium layout design, the ACE is ready for unleashing the maximum performance.
MSI SERVER GRADE PCB Server-grade PCB
Server-grade PCB provides higher PCIe 4.0 performance and long-lasting system stability without any compromise.
MSI M.2 SHIELD FROZR M.2 Shield Frozr
Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.
MSI DIGITAL PWM IR Digital PWM
Highest quality components with IR digital power, DrMOS and titanium choke II make sure your system runs smoothly under the most extreme conditions.
MSI EXTENDED HEAT-PIPE Extended Heat-Pipe
Enlarge the surface of heat dissipation, connecting from MOS heatsink to chipset heatsink.
MSI STEEL ARMOR PCIe Steel Armor
Protecting VGA cards against bending and EMI for better performance, stability and strength.
MSI ZERO FROZR Zero Frozr Technology
AI tuning system that auto-adjust fan speed by chipset temperature, even eliminates fan noise by stopping the fans in low-load situation.
MSI MULTIPLE FAN HEADERS Frozr Heatsink Design
Designed with the patented fan and double ball bearings to provide the best performance for enthusiast gamers and prosumers.
MSI MEG X570 ACE IO overview
Latest Wi-Fi 6 Solution Latest Wi-Fi 6 Solution
The latest wireless solution supports MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.
MSI Excellent Network Solution Excellent Network Solution
Onboard 2.5G plus Gigabit LAN with gaming LAN manager deliver the best online gaming experience.
MSI DDR4 Boost with Steel Armor DDR4 Boost with Steel Armor
The fully isolated and shielded DIMM slots to deliver pure data signals for the best gaming and overclocking performance.
MSI LIGHTNING GEN 4 Lightning Gen 4 Solution
The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.
MSI MEG X570 ACE & MPG SEKIRA 500G BG
MYSTIC LIGHT INFINITY
Personalize your PC with 16.8 million colors and 29 effects through Mystic Light RGB LED. Controlled in one click with the Mystic Light APP or a mobile device.
MSI MEG X570 ACE Mystic Light
Customize colors Customize effects Mystic Light App
Works with certified Mystic Light Sync products:
Mystic Light Sync logo Mystic Light vendors
LIGHTNING GEN 4 SOLUTION
The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications.
MSI X570 LIGHTNING GEN 4 M.2 CHART
MSI X570 LIGHTNING GEN 4 PCI-E STEEL ARMOR
REINFORCED, HEAVY SOLDERED CONNECTIONS
MSI X570 LIGHTNING GEN 4 PCI-E OTHERS
NO STRENGTHENING
MSI X570 LIGHTNING GEN 4 PCI-E
FROZR HEATSINK DESIGN
Higher performance generates more heat. Thermal solution is very important to X570 chipset which featured latest Gen4 bandwidth. MSI motherboards featured the patented fan design to provide best performance for enthusiast gamers and prosumers.
MSI MEG X570 ACE FROZR HEATSINK
Double Ball Bearings
50000 hours non-stop working
MSI Double Ball Bearings & PATENTED DESIGN
Patented design
Provides better airflow

Specifikationer

Allmänt

Chipset
AMD X570
Överklockningsstöd
Ja
Processorsocket
AMD AM4
Formfaktor
ATX

Minne

Internminnestyp
DDR4
Minneshastighet (Standard)
3 200 MHz
Minneshastighet (OC)
4 533 MHz
Antalet platser
4 st
Maximalt minne
128 GB
Kanaler
Dual channel

Expansionsplatser

PCI Express generation
PCIe 4.0
PCI Express x16
3 st
PCI Express x1
2 st
CrossFire
Ja
SLI
Ja

USB bakpanel

USB 2.0
2 st
USB 3.0/3.1 Gen1
2 st
USB 3.1 Gen 2
3 st
USB 3.1 Gen 2 Type-C
1 st

SATA

SATA 6.0 Gbit/s
4 st

M.2

Antal M.2
3 st
M.2 storlek plats 1
2242, 2260, 2280
M.2 gränssnitt plats 1
SATA, PCIE, PCIE4
M.2 key plats 1
M
M.2 storlek plats 2
2242, 2260, 2280, 22110
M.2 gränssnitt plats 2
PCIE, PCIE4
M.2 key plats 2
M
M.2 storlek plats 3
2242, 2260, 2280
M.2 gränssnitt plats 3
SATA, PCIE, PCIE4
M.2 key plats 3
M

Övrig lagring

Intel Optane Memory Ready
Nej

RAID

RAID-stöd
Ja
RAID nivå
RAID 0, RAID 1, RAID 10

Nätverk

Trådat nätverk
2 st
Trådad hastighet
10/100/1000 Mbit/s + 2.5Gbit/s
Nätverkskontroller
Intel WGI211AT + Realtek 8125
Trådlöst nätverk
Ja
Trådlös standard
802.11 a/b/g/n/ac/ax
Bluetooth
Ja
Bluetooth standard
5.0

Grafik

Integrerad grafik
Nej

Ljud

Ljudkort
Realtek ALC1220
Analoga utgångar
3st
Analoga ingångar
Ja
Optisk S/PDIF
Ja

Interna kontakter

USB 2.0
4 st, 2 st interna kontakter
USB 3.0/3.1 Gen1
4 st, 2 st interna kontakter
USB 3.1 Gen2 Type-C
1 st, 1 st interna kontakter
4-pin fläkt
7 st
RGB-Header
Ja
TPM-kontakt
Ja
Strömkontakter ATX/EPS 12V
2 st 8-pin

Övrigt

LED-belysning
Ja
Medföljande SATA 6 Gb/s
4 st
Bredd
244 mm
Garanti
3 år

Artikelnummer

Paketbredd
6.9 cm
Pakethöjd
26.8 cm
Paketlängd
35 cm
Paketvikt
2.192 kg
Vårt ArtNr
1901387
Tillverkarens ArtNr
MEG X570 ACE
Upplagd
2019-07-07 15:00
Produktblad
Produktblad
1901387_0.pdf

Frågor och Svar

Här kan du ställa frågor du har om produkten. Vi bevakar och svarar själva de frågor som kommer in, men alla är välkomna att svara på frågor och vi uppmuntrar vårt kunniga community att hänga på!

Maxims avatarbild
Maxim

Är detta kort redo för AMD:s nya 5000-serie CPU:er?

3

Patriks avatarbild
Patrik

Du kan uppdatera bios utan att behöva koppla in cpu. Updating BIOS with Flash BIOS Button Before updating: Please download the latest BIOS file that matches your motherboard model from MSI® website and rename the BIOS file to MSI.ROM. And then, save the MSI.ROM file to the root of USB flash drive. Important Only the FAT32 format USB flash drive supports updating BIOS by Flash BIOS Button. 1. Connect power supply to CPU_PWR1 and ATX_PWR1. (No other components are necessary but power supply.) 2. Plug the USB flash drive that contains the MSI.ROM file into the Flash BIOS Port on rear I/O panel. 3. Press the Flash BIOS Button to flash BIOS, and the button LED starts flashing. 4. After the flashing BIOS process is 100% completed, the LED would be off simultaneously.

0
