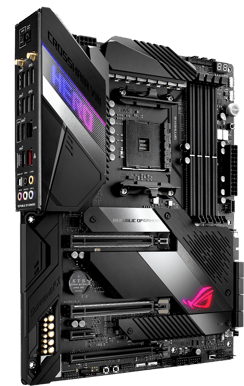

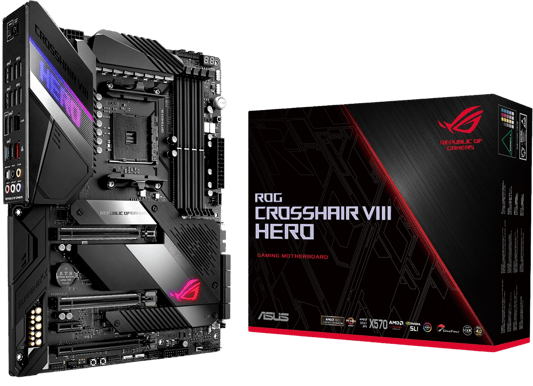

ASUS ROG CROSSHAIR VIII HERO (Wi-Fi) X570

Toppmoderkort för Ryzen 3

X570 är en toppmodern och högpresterande plattform tillhörande AMD Ryzen 3000-seriens processorer.
AMD X570 är utrustat med stöd för PCI Express 4.0 vilket ger dubbelt så hög bandbredd jämfört mot tidigare generationer..

Se vår sammanfattning av AMD X570


ROG CROSSHAIR VIII HERO (WI-FI)



THE CROSSHAIR VIII HERO (WiFi)

Featuring support for 3rd Gen AMD Ryzen™ CPUs, on-board Wi-Fi 6 (802.11ax), Realtek® 2.5 Gbps LAN and PCIe 4.0, coupled with an overhauled metallic design and loaded with renowned ROG features, it's the perfect foundation for your AMD Ryzen rig.

BOOSTED PERFORMANCE, NO BOTTLENECKS

ROG Crosshair VIII Hero (WiFi) comes equipped with an optimized power-design layout and all the cooling headers you need to handle the prodigious power of the latest AMD Ryzen processors without performance-zapping thermal throttling.

POWER DESIGN THAT BUCKS TRENDS

The monstrous compute power of multi-core processors necessitates a power circuit that rapidly responds to massive current swings. Featuring an array of 16 strategically paired power stages, the Hero's VRM is geared for any workload and all operating conditions.

Robust power delivery starts at the component level. Every aspect of the ROG Crosshair VIII Hero's VRM is generously over-specified for the task.

8-PIN PROCOOL II POWER CONNECTORS - ProCool II connectors ensure a snug and reliable connection to the EPS 12V power lines.

POWIRSTAGE® MOSFETS - The VRM is comprised of 16 IR3555 PowIRstages, each rated to handle 60 amps.

MICROFINE ALLOY CHOKES - Each PowIRstage is accompanied by a high-permeability alloy-core choke rated to handle 45 amps

10K JAPANESE-MADE BLACK METALLIC CAPACITORS - Input and output filtering is provided by solid-polymer capacitors rated to last thousands of hours at high operating temperatures.

Conventional motherboard design practices place primary focus on component specs without implementing circuit topologies that provide optimal transient response. The Hero bucks industry trends by utilizing teamed PowIRstages to double the burst current of each phase and rapidly respond to load changes.

COMPREHENSIVE COOLING ZONE

ROG Crosshair VIII Hero (WiFi) features the most comprehensive cooling options ever, configurable via Fan Xpert 4 or the UEFI BIOS.

Multiple temperature sources - Each header can be set to monitor and react to three user-configurable thermal sensors for workload-based cooling. And all settings can be easily managed by Fan Xpert 4 or UEFI.?

Water pump+ - A dedicated header that can supply over 3A to high-performance PWM or DC water pumps.

4-pin PWM/DC fan - Every onboard header supports auto-detection of PWM or DC fans.

Smart protection - A dedicated circuit protects each fan header from over-temperature and over-current.

ROG Water-Cooling Zone - Water In/Out and water-flow headers feed status information straight into the AI Suite utility, so you can keep track of coolant temperatures and the flow rate of the entire loop to ensure the best cooling performance.



ACTIVE CHIPSET HEATSINK SOLUTION

PCIe 4.0 provides twice the bandwidth for data flowing through the chipset, which creates more heat than the previous generation. The Formula features an actively cooled heatsink to prevent throttling during sustained transfers?.

CUSTOM DELTA SUPERFLO FAN - The custom low-noise fan features a high-durability bearing with a 60,000-hour L10 lifespan?.

AIR DUCT - A specially-designed air duct helps the fan generate static pressure and concentrates air flow over the fins?.

FINNED HEATSINK - The heatsink fin density is optimized to maximize surface area while maintaining a low-resistance exhaust path?.



UNCOMPLICATED SYSTEM TUNING?

ROG gives you powerful tools that make optimizing your system fast and easy. For those who relish fine-grained control, the UEFI BIOS has a wealth of advanced options organized into intuitive categories that provide the ability to tweak every aspect of your system?.

ACCURATE VOLTAGE MONITORING - Conventional motherboards use single-ended sensing tapped from a location that isn't ideal, leading to a large disparity between the actual voltage fed to the CPU and the value reported to software. The Hero features a differential sensing circuit that simplifies overclocking and tuning by allowing you to track voltages more accurately.

PERFORMANCE LEVEL UP

AI Suite 3's dashboard-style control panel lets you fine-tune almost every aspect of your system. Get the best balance between performance, cooling, stability, and efficiency via one simple and intuitive interface.?

CPU-PERFORMANCE BOOST - The TurboV Processing Unit (TPU) is an intelligent onboard micro-controller that provides an array of system-tuning features, including the ability to fine-tune voltages, monitor system stats and adjust overclocking parameters.

ALL-AROUND ENERGY EFFICIENCY - With the Energy Processing Unit (EPU) you'll enjoy system-wide power savings. The EPU automatically optimizes power consumption and maximizes savings with Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers

FLEXIBLE COOLING CONTROLS FOR AIR OR LIQUID - Enjoy comprehensive control over fans, water pumps and all-in-one (AIO) coolers, via either Fan Expert 4 or our award-winning UEFI. Whether you're cooling with air or water, Auto-Tuning mode intelligently configures all parameters with a single click. There's also an Extreme Quiet mode, which reduces all fan speeds to below the default minimum — keeping your system whisper-quiet when performing light tasks.?

PRECISE DIGITAL POWER CONTROL - The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, switching frequency and power-efficiency settings, allowing you to fine-tune CPU voltage regulation for ultimate stability and performance.

TURBO APP - AMD's processors feature per-core tuning, and the ASUS Turbo app makes use of this feature by letting you assign applications to specific processor cores, prioritizing computing power where it's needed most.



ULTRAFAST CONNECTION

ROG Crosshair VIII Hero (WiFi) offers advanced connectivity to ensure seamless gaming experiences. With the latest ultrafast networking, including Wi-Fi 6 (802.11x) and dual Ethernet with one 2.5G port, ROG Crosshair VIII Hero removes all bottlenecks for online and LAN play, minimizing lag and providing an overall smoother experience. Additionally, the M.2 supports AMD StoreMI technology to maximize the speed of your SSD for faster load times, and SupremeFX on-board audio provides superb sound, while saving a PCIe slot.?

WIFI 6 (AX200) - ROG Crosshair VIII Hero (WiFi) comes with on-board Wi-Fi 6 (802.11ax) support, offering ultrafast networking speeds, improved network capacity and better performance in dense Wi-Fi environments for exceptional online gaming experiences with the convenience of a wireless connection.

REALTEK 2.5G LAN - ROG Crosshair VIII Hero (WiFi) features the latest Intel® 2.5G Ethernet that offers a huge speed boost for local networking, such as transferring files between PCs or network-attached storage (NAS) devices. This Intel controller has a natural synergy with Intel processors and chipsets, reducing CPU overhead and offering exceptionally high TCP and UDP throughput – so there's more power for games and other tasks.

INTEL ETHERNET - ROG Crosshair VIII Hero (WiFi) features the latest Intel® Ethernet (I211-AT) ensuring data exchanges with your network and the outside world are fast and smooth. Intel LAN reduces CPU overhead and increases TCP and UDP throughput, keeping more processing power.?

SupremeFX - Immerse yourself in sound with SupremeFX audio technology. Utilizing the S1220 codec, SupremeFX is the integrated-audio solution that's engineered to provide a flat frequency response for a neutral, detailed sound signature. And to ensure that pristine signature is perfectly preserved, the front-panel output is driven with dual op amps, delivering sonics with the scale and authority to create virtual worlds via your gaming headset.

UNTHROTTLED TRANSFER SPEED - Dual PCIe 4.0 M.2 Slot support up to 22110 and provide NVMe SSD RAID support for an incredible performance boost. Create a RAID configuration with up to two PCIe 4.0 storage devices to enjoy the fastest data-transfer speeds on the 3rd Generation AMD Ryzen platform.

AMD STOREMI - AMD StoreMI technology is a software utility that accelerates any drive for better system responsiveness with reduced startup and software load times. It combines SSD performance with the affordability and capacity of an HDD by automatically moving frequently accessed data to dedicated SSD storage.?

ASUS NODE CONNECTOR? - ASUS Node is a proprietary bi-directional interface that allow ASUS motherboards to communicate with other system components, opening up a wealth of new options for system builders.?.



THE POWER TO PERSONALIZE

ROG provides a range of intuitive software that enables easy control of your advanced gaming hardware and ensures seamless component compatibility. From RGB lighting, networking and audio to storage optimization and more, ROG gives you the power to personalize your system just the way you want.?

GAMEFIRST V NETWORK CONTROL - GameFirst V is an ROG-exclusive tool that optimizes network traffic and your connection for faster, lag-free online gaming. Select the best Wi-Fi channel for maximum stability and minimum interference, team your gateways and keep tabs on bandwidth-hogging apps, all from an intuitive interface that enables easy, on-the-fly adjustments.

Sonic Studio supports HRTF-based (head-related transfer function*) virtual surround for VR headsets, casting an immersive

aural landscape that draws you deeper into the action. The intuitive Sonic Studio interface also offers a range of EQ options and one-click presets, allowing you to tailor acoustics to suit personal preferences or the characteristics of your headset.

GROW YOUR GAMING WORLD - Gear up with ROG components, from graphics and monitors, to mice and keyboards, and up your game with complementary aesthetics, control and compatibility. The ROG ecosystem is more extensive than any competing brand, so enjoy greater choice as your system expands.

ARMOURY CRATE - Armoury Crate is a new software utility designed to give you centralized control of supported ROG gaming products. From a single intuitive interface, Armoury Crate lets you easily customize RGB lighting and effects for every compatible device in your arsenal and synchronize them with Aura Sync for uni?ed system lighting effects. The software also provides control of settings for a select and growing number of ROG products, including keyboard and mouse preferences as well as laptop overclocking and fan speeds, making it easier to tune the look and feel of your system. Armoury Crate even features dedicated product registration and ROG news areas to help you stay in touch with the ROG gaming community.

RAMCache turns milliseconds into microseconds to boost game-load times. Fully compatible with the latest NVM Express storage options, its uniquely intelligent technology effectively caches an entire storage device so that favorite games and apps launch at breakneck speeds.



Specifikationer

Allmänt

Chipset
AMD X570
Överklockningsstöd
Ja
Processorsocket
AMD AM4
Formfaktor
ATX

Minne

Internminnestyp
DDR4
Minneshastighet (Standard)
3 200 MHz
Antalet platser
4 st
Maximalt minne
128 GB
Kanaler
Dual channel

Expansionsplatser

PCI Express generation
PCIe 4.0
PCI Express x16
3 st
PCI Express x1
1 st
CrossFire
Ja
SLI
Ja

USB bakpanel

USB 3.0/3.1 Gen1
4 st
USB 3.1 Gen 2
7 st
USB 3.1 Gen 2 Type-C
1 st

SATA

SATA 6.0 Gbit/s
8 st

M.2

Antal M.2
2 st
M.2 storlek plats 1
2242, 2260, 2280
M.2 gränssnitt plats 1
SATA, PCIE, PCIE4
M.2 key plats 1
M
M.2 storlek plats 2
2242, 2260, 2280, 22110
M.2 gränssnitt plats 2
SATA, PCIE, PCIE4
M.2 key plats 2
M

Övrig lagring

Intel Optane Memory Ready
Nej

RAID

RAID-stöd
Ja
RAID nivå
RAID 0, RAID 1, RAID 10

Nätverk

Trådat nätverk
2 st
Trådad hastighet
10/100/1000 Mbit/s + 2.5Gbit/s
Nätverkskontroller
Intel I211-AT + Realtek RTL8125-CG
Trådlöst nätverk
Ja
Trådlös standard
802.11 a/b/g/n/ac/ax
Bluetooth
Ja
Bluetooth standard
5.0

Grafik

Integrerad grafik
Nej

Ljud

Ljudkort
ROG SupremeFX
Analoga utgångar
3st
Analoga ingångar
Ja
Optisk S/PDIF
Ja

Interna kontakter

USB 2.0
4 st, 2 st interna kontakter
USB 3.0/3.1 Gen1
2 st, 1 st interna kontakter
USB 3.1 Gen2 Type-C
1 st, 1 st interna kontakter
4-pin fläkt
6 st
RGB-Header
Ja
Strömkontakter ATX/EPS 12V
1 st 8-pin, 1 st 4pin

Övrigt

LED-belysning
Ja
Medföljande SATA 6 Gb/s
4 st
Bredd
244 mm
Garanti
3 år

Artikelnummer

Paketbredd
31.2 cm
Pakethöjd
10.8 cm
Paketlängd
37 cm
Paketvikt
2.737 kg
Vårt ArtNr
1902776
Tillverkarens ArtNr
90MB10T0-M0EAY0
Upplagd
2019-07-07 15:00
