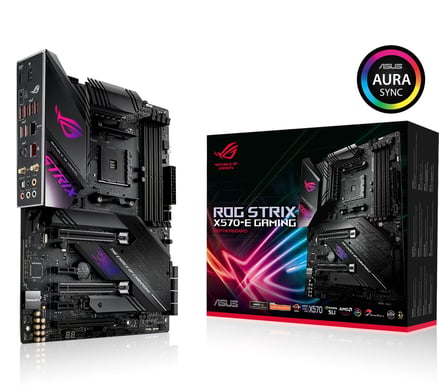

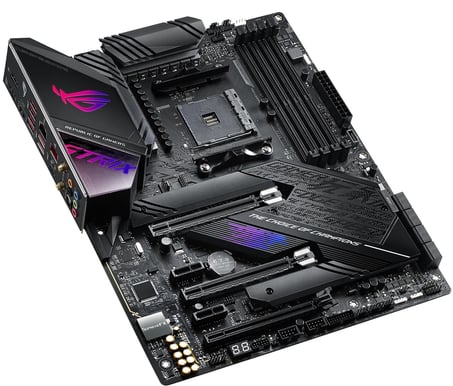

ASUS ROG STRIX X570-E GAMING

Gamingmoderkort från ASUS

X570 är en toppmodern och högpresterande plattform tillhörande AMD Ryzen 3000-seriens processorer.
AMD X570 är utrustat med stöd för PCI Express 4.0 vilket ger dubbelt så hög bandbredd jämfört mot tidigare generationer..
3 990 kr

Webblager

  • 0 st

Butikslager

ASUS ROG STRIX X570-E GAMING

Gamingmoderkort från ASUS

X570 är en toppmodern och högpresterande plattform tillhörande AMD Ryzen 3000-seriens processorer.
AMD X570 är utrustat med stöd för PCI Express 4.0 vilket ger dubbelt så hög bandbredd jämfört mot tidigare generationer..

Se vår sammanfattning av AMD X570


ROG STRIX X570-E GAMING



ROG STRIX X570-E GAMING

The ROG Strix X570-E Gaming motherboard delivers the quintessential ROG experience with a compelling mix of features and undeniable style that provide the ideal foundation for building a powerful ATX gaming system. Next-generation wireless networking delivers the smoothest online gameplay and a comprehensive cooling options ensure stable performance. Topped off with futuristic styling with onboard illumination, ROG Strix X570-E Gaming equips you with all you need to build a formidable weapon to rise above the rest.

SOLID HARDWARE SPECS

With comprehensive cooling options and upgraded power delivery to fuel Ryzen CPUs with more cores, plus faster storage and networking, ROG Strix X570-E Gaming provides all the essentials you need to harness the full potential of components in your build for top-tier gaming performance.

Digital power control and an array of power stages ensures ROG Strix X570-E Gaming has the muscle to control the latest AMD Ryzen CPUs. ProCool II sockets are built to tight specifications to ensure flush contact with the PSU power lines and have a metal armour for improved heat dissipation. The connector's lower impedance helps prevent hotspots and improves reliability.

COOLING INNOVATION

MOS HEATSINK WITH 8MM HEATPIPE - A MOS heatsink provides a large contact area for the MOSFETs and chokes, and a heatpipe enables more efficient cooling of the west and north MOS heatsink for better performance and wattage resistance..

THERMAL PAD - A high-quality thermal pad helps transfer heat from the inductor and phase array to the heatsink.

ACTIVE PCH HEATSINK - A PCH heatsink with a dedicated chipset fan ensures optimal cooling for more stable performance.

Dual M.2 heatsinks - The M.2 heatsink keeps the M.2 SSD at the optimum operating temperature for consistent performance and reliability.

STORAGE, MEMORY AND NETWORKING

DUAL PCIE 4.0 M.2 - Dual PCIe 4.0 M.2 slots support up to type 22110 and provide NVMe SSD RAID support for an incredible performance boost. Create a RAID configuration with up to two PCIe 4.0 storage devices to enjoy the fastest data-transfer speeds on the 3rd Gen AMD Ryzen platform.

NEXT-GEN CONNECTIVITY - ROG Strix X570-E Gaming amps up networking with 2.5G Ethernet and next-gen Intel® Wi-Fi 6 (802.11ax) that surpasses gigabit speeds to take your LAN to the next level. With ROG GameFirst software that offers multi-gate teaming, you'll enjoy the very best online gaming experience.



SUPREMEFX - SHIELDED AUDIO, SUPERIOR SOUND

Immerse yourself in sound with SupremeFX audio technology. Utilizing the S1220A codec, SupremeFX is the integrated-audio solution that's engineered to provide a flat frequency response for a neutral, detailed sound signature. And to ensure that pristine signature is perfectly preserved, the front-panel output is driven with dual op amps, delivering sonics with the scale and authority to create virtual worlds via your gaming headset.



DESIGN & CUSTOMIZATION ?

The arrival of ROG Strix X570-E Gaming brings a brand-new design that features unique rainfall and cyber-text patterns. Together with the most diverse ecosystem of components in the industry that you can easily makes creating and customizing your gaming rig that reflects your personal style wonderfully easy.

TUNE YOUR RIG YOU WANT

The ROG Strix X570-E Gaming motherboard features firmware controls and software utilities designed for all skill levels, making setup, tuning and system maintenance simple. With options from overclocking and cooling to managing network performance and audio characteristics, you can configure your ROG Strix gaming build to perform the way you want.



Active Chipset Heatsink Solution?

PCIe 4.0 provides twice the bandwidth for data flowing through the chipset, which creates more heat than the previous generation. The ROG Strix X570-E Gaming features an actively cooled heatsink to prevent throttling during sustained transfers.

Custom Delta Superflo Fan - The custom low-noise fan features a high-durability bearing with a 60,000-hour L10* lifespan.

Air Duct - A specially-designed air duct helps the fan generate static pressure and concentrates air flow over the fins.

Finned Heatsink - The heatsink fin density is optimized to maximize surface area while maintaining a low-resistance exhaust path. *L10 bearing life is a standard metric that specifies the number of hours that 90% of the bearing are expected to continue successfully operating, as a minimum.



Recensioner

Är du nöjd med din produkt, skriv en recension och låt alla veta!

Specifikationer

Allmänt

  • AMD X570
  • Ja
  • AMD AM4
  • ATX

Minne

  • DDR4
  • 3 200 MHz
  • 4 st
  • 128 GB
  • Dual channel

Expansionsplatser

  • PCIe 4.0
  • 3 st
  • 2 st
  • Ja
  • Ja

USB bakpanel

  • 4 st
  • 3 st
  • 1 st

SATA

  • 8 st

M.2

  • 2 st
  • 2242, 2260, 2280, 22110
  • SATA, PCIE, PCIE4
  • M
  • 2242, 2260, 2280, 22110
  • SATA, PCIE
  • M

Övrig lagring

  • Nej

RAID

  • Ja
  • RAID 0, RAID 1, RAID 10

Nätverk

  • 2 st
  • 10/100/1000 Mbit/s + 2.5Gbit/s
  • Intel I211-AT + Realtek RTL8125-CG
  • Ja
  • 802.11 a/b/g/n/ac/ax
  • Ja
  • 5.0

Grafik

  • Ja
  • AMD APU
  • 1 st
  • 1 st

Ljud

  • SupremeFX S1220A
  • 3st
  • Ja
  • Ja

Interna kontakter

  • 4 st, 2 st interna kontakter
  • 2 st, 1 st interna kontakter
  • 1 st, 1 st interna kontakter
  • 4 st
  • Ja
  • 1 st 8-pin, 1 st 4pin

Övrigt

  • Ja
  • 4 st
  • 244 mm
  • 3 år

Artikelnummer
