Framröstad recension

Philip

Fungerar finfint med min Ryzen 9 3900X @4.4 GHz 1.313 volt på alla kärnor. Moderkortet håller sig också inom en acceptabel temperatur under belastning.

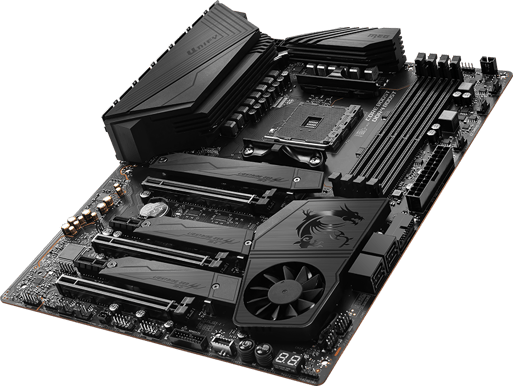

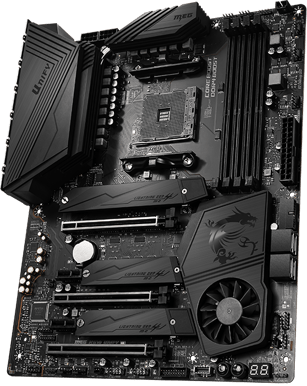

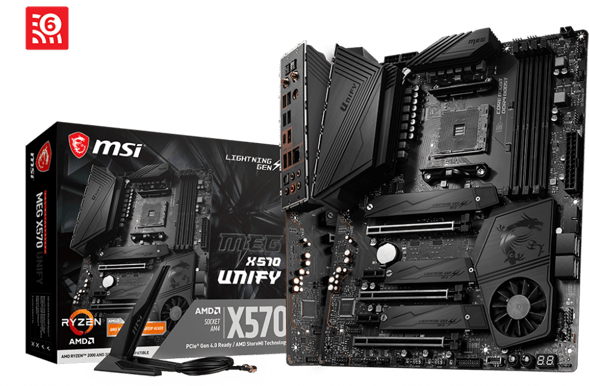

MSI X570 MEG UNIFY

Moderkort UTAN RGB

Högpresterande X570 moderkort i diskret Blackout design, helt utan RBG.

X570 är en toppmodern och högpresterande plattform tillhörande AMD Ryzen 3000-seriens processorer.
AMD X570 är utrustat med stöd för PCI Express 4.0 vilket ger dubbelt så hög bandbredd jämfört mot tidigare generationer..

Så här uppdaterar du BIOS utan CPU med MSI Flash BIOS-knappen.


MEG X570 UNIFY
NEXT-GEN THERMAL SOLUTION
MSI MEG X570 UNIFY THERMAL overview
MSI Aluminum Cover with Extended Heatsink Aluminum Cover with Extended Heatsink
All-metal extended heatsink cover enlarge the surface of heat dissipation, ensures even high-end processors to run in full speed.
MSI M.2 Shield Frozr M.2 Shield Frozr
Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.
MSI Zero Frozr Technology Zero Frozr Technology
AI tuning system that auto-adjust fan speed by chipset temperature, even eliminates fan noise by stopping the fans in low-load situation
MSI Frozr Heatsink Design Frozr Heatsink Design
Designed with the patented fan and double ball bearings to provide the best performance for enthusiast gamers and prosumers.
MEG X570 UNIFY
LIGHTNING FAST TRANSFER SPEED
MSI MEG X570 UNIFY LIGHTNING overview
MSI Latest Wi-Fi 6 Solution Latest Wi-Fi 6 Solution
The latest wireless solution supports MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.
MSI Excellent Network Solution Excellent Network Solution
Onboard 2.5 Gigabit LAN with gaming LAN manager deliver the best online gaming experience.
MSI DDR4 Boost DDR4 Boost
The Fully isolated DIMM slots deliver pure data signals for the best gaming and overclocking performance.
MSI Lightning Gen 4 Solution Lightning Gen 4 Solution
The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.
MEG X570 UNIFY
STABLE CORNERSTONE OF YOUR SYSTEM
MSI MEG X570 UNIFY CORNERSTONE overview
MSI Core Boost Technology Core Boost Technology
Combining dual 8 pin power connectors and premium layout design, the UNIFY is ready for unleashing the maximum performance.
MSI Server-grade PCB Server-grade PCB
Server-grade PCB provides higher PCIe 4.0 performance and long-lasting system stability without any compromise.
MSI IR Digital PWM IR Digital PWM
Highest quality components with IR digital PWM, 60A power stage and titanium choke II make sure your system runs smoothly under the most extreme conditions.
MSI PCIe Steel Armor PCIe Steel Armor
Protecting VGA cards against bending and EMI for better performance, stability and strength.
MSI MEG X570 UNIFY & MPG SEKIRA 500P
MSI MEG X570 UNIFY ALUMINUM COVER WITH EXTENDED HEATSINK
ALUMINUM COVER WITH EXTENDED HEATSINK
All-metal extended heatsink cover enlarge the surface of heat dissipation, ensures even high-end processors to run in full speed.
MSI LIGHTNING GEN 4 SOLUTION
LIGHTNING GEN 4 SOLUTION
The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications.
MSI FROZR HEATSINK DESIGN
FROZR HEATSINK DESIGN
Higher performance generates more heat. Thermal solution is very important to X570 chipset which featured latest Gen4 bandwidth. MSI motherboards featured the patented fan design to provide best performance for enthusiast gamers and prosumers.
MSI NATTIER WAY ON COOLING CONTROL
NATTIER WAY ON COOLING CONTROL
MSI FROZR Heatsink design combines the power of MSI’s exclusive ZERO FROZR and AI tuning technology to auto-adjust fan speed according to the chipset’s temperature. You can also select three different modes (Boost/Balance/Silence) depending on your preferences via Dragon center or MSI UEFI BIOS and enjoy the best performance without compromise.
MSI MEG X570 UNIFY TRIPLE LIGHTNING M.2 WITH M.2 SHIELD FROZR
TRIPLE LIGHTNING M.2 WITH M.2 SHIELD FROZR
Cooling your NVMe SSD delays throttling which results in higher overall performance. Part of the motherboards heatsink design which helps avoid SSD throttling by offering the best thermal protection.
MSI CORE BOOST
CORE BOOST
Core Boost technology combines MSI’s premium layout and full digital power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only does it support Multi-Core CPU's, but it also creates the perfect conditions for your CPU.
MSI MEG X570 UNIFY PRE-INSTALLED IO SHIELDING
PRE-INSTALLED IO SHIELDING
Featuring the pre-installed IO shielding, makes your installation process easier and safer. The patent design protect your IO ports also prevent electrostatic discharge damage, makes your motherboard a strong gaming foundation.
MSI THE LOWEST LATENCY 2.5G GAMING LAN
DOMINATE THE GAME WITH THE LOWEST LATENCY 2.5G GAMING LAN
Get ready to crush your enemies on the battlefield with MSI GAMING LAN. Featuring the highest quality components tuned to deliver the best online gaming experience without lag.
MSI WI-FI 6 & BLUETOOTH
WI-FI 6 & BLUETOOTH
Use your LAN port for online gaming while using WiFi for other online applications. The Wi-Fi 6 adopts latest OFDMA and two-way MU-MIMO technologies, delivering wireless transmission speeds up to 2.4Gbps.

Specifikationer

Allmänt

Chipset
AMD X570
Överklockningsstöd
Ja
Processorsocket
AMD AM4
Formfaktor
ATX

Minne

Internminnestyp
DDR4
Minneshastighet (Standard)
3 200 MHz
Minneshastighet (OC)
4 600 MHz
Antalet platser
4 st
Maximalt minne
128 GB
Kanaler
Dual channel

Expansionsplatser

PCI Express generation
PCIe 4.0
PCI Express x16
3 st
PCI Express x1
2 st
CrossFire
Ja
SLI
Ja

USB bakpanel

USB 2.0
2 st
USB 3.0/3.1 Gen1
2 st
USB 3.1 Gen 2
3 st
USB 3.1 Gen 2 Type-C
1 st

SATA

SATA 6.0 Gbit/s
4 st

M.2

Antal M.2
3 st
M.2 storlek plats 1
2242, 2260, 2280
M.2 gränssnitt plats 1
SATA, PCIE, PCIE4
M.2 key plats 1
M
M.2 storlek plats 2
2242, 2260, 2280
M.2 gränssnitt plats 2
SATA, PCIE, PCIE4
M.2 key plats 2
M
M.2 storlek plats 3
2242, 2260, 2280, 22110
M.2 gränssnitt plats 3
PCIE, PCIE4
M.2 key plats 3
M

Övrig lagring

Intel Optane Memory Ready
Nej

RAID

RAID-stöd
Ja
RAID nivå
RAID 0, RAID 1, RAID 10

Nätverk

Trådat nätverk
1 st
Trådad hastighet
2.5 Gbit/s
Nätverkskontroller
Realtek RTL8125 2.5G
Trådlöst nätverk
Ja
Trådlös standard
802.11 a/b/g/n/ac/ax
Bluetooth
Ja
Bluetooth standard
5.0

Grafik

Integrerad grafik
Nej

Ljud

Ljudkort
Realtek ALC1220
Analoga utgångar
3st
Analoga ingångar
Ja
Optisk S/PDIF
Ja

Interna kontakter

USB 2.0
4 st, 2 st interna kontakter
USB 3.0/3.1 Gen1
4 st, 2 st interna kontakter
USB 3.1 Gen2 Type-C
1 st, 1 st interna kontakter
4-pin fläkt
6 st
RGB-Header
Ja
TPM-kontakt
Ja
Strömkontakter ATX/EPS 12V
2 st 8-pin

Övrigt

LED-belysning
Ja
Medföljande SATA 6 Gb/s
4 st
Bredd
244 mm
Garanti
3 år

Artikelnummer

Paketbredd
6.9 cm
Pakethöjd
26.8 cm
Paketlängd
35 cm
Paketvikt
2.338 kg
Vårt ArtNr
1903076
Tillverkarens ArtNr
MEG X570 UNIFY
Upplagd
2019-10-15 15:00
