Fantastiskt bra moderkort för pengarna.
Kör det tillsammans med:
- Ryzen 5 3600,
- HyperX 16GB (2x8GB) DDR4 3200MHz CL16 Fury
- MSI Geforce RTX 2060 Ventus xs,
- Kingston A2000 500GB M.2 NVMe,
- Corsair RM650 650W (2019)
Några av fördelarna (i ingen speciell ordning) är:
- Inbyggt wifi 6 + LAN 2.5 Gbps + Bluetooth 5.1
- Framtidssäkrad för nästa generation processorer
- PCIe 4.0 (med tredje generationens processor)
- USB c port och tillräckligt med övriga USB kontakter
- Bra ljudkort
- 2st 1.1 M slots
Om jag skall klaga på något så skulle jag gärna sett ytterligare ett par fläkt kontakter, men i verkligheten tror jag inte dom behövs för det är ett kort som inte blir så varmt.
Jag kör med 4 fläktar i mitt system nu och har följande temperaturer i Silent mode
- System = 31 grader
- MOS = 34 grader
- Chipset = 41 grader
- PCIE 33 grader
- M.2 = 30 grader
Till sist vill jag rikta stark kritik mot MSI's kvalitetskontroll då en av pinnarna till chipset fläkten var böjd (verkar vara ett vanligt fel) vilket resulterade att den fläkten gick konstant på 100% (>5000 rpm). Tog mig några dagar att lista ut vad felet var (tack google) men efter att ha böjt tillbaka pinnen så fungerar nu chipset fläkten perfekt och är endast igång när man pressar datorn hårt. Därav 4 stjärnor, annars hade det blivit 5 st
Framtidssäker
Kostnad
Funktioner
Fläktkontakter
Kvalitetskontroll
X570 är en toppmodern och högpresterande plattform tillhörande AMD Ryzen 3000-seriens processorer.
AMD X570 är utrustat med stöd för PCI Express 4.0 vilket ger dubbelt så hög bandbredd jämfört mot tidigare generationer..
Så här uppdaterar du BIOS utan CPU med MSI Flash BIOS-knappen.

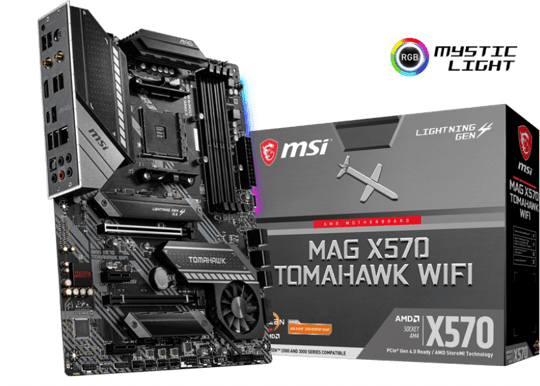

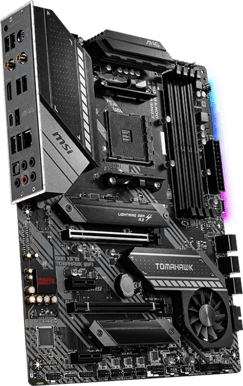

MAG X570 TOMAHAWK WIFI
|
NEXT-GEN THERMAL SOLUTION
|
|
|
|
Extended Heatsink Design
MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run
in full speed.
|
|
|
M.2 Shield Frozr
Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling,
making them run faster.
|
|
|
Zero Frozr Technology
AI tuning system that auto-adjust fan speed by chipset temperature, even eliminates fan noise
by stopping the fans in low-load situation
|
|
|
|
Frozr Heatsink Design
Designed with the patented fan and double ball bearings to provide the best performance for
enthusiast gamers and prosumers.
|
|
|
|
|
|
|
MAG X570 TOMAHAWK WIFI
|
LIGHTNING FAST TRANSFER SPEED
|
|
|
|
Latest Wi-Fi 6 Solution
The latest wireless solution supports MU-MIMO and BSS color technology, delivering speeds up
to
2400Mbps.
|
|
|
Excellent Network Solution
Onboard 2.5 Gigabit LAN with gaming LAN manager deliver the best online gaming experience.
|
|
|
DDR4 Boost
The Fully isolated DIMM slots deliver pure data signals for the best gaming and overclocking
performance.
|
|
|
|
Lightning Gen 4 Solution
The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.
|
|
|
|
|
|
MAG X570 TOMAHAWK WIFI
|
STABLE CORNERSTONE OF YOUR SYSTEM
|
|
|
|
Core Boost Technology
Combining 8+4 pin power connectors and premium layout design is ready for unleashing the maximum performance.
|
|
|
Digital PWM
Highest quality components digital power and DrMOS make sure your system runs smoothly under the most extreme conditions.
|
|
|
PCIe Steel Armor
Protecting VGA cards against bending and EMI for better performance, stability and strength.
|
|
|
|
|
|
|
ALUMINUM COVER WITH EXTENDED HEATSINK
|
All-metal extended heatsink cover enlarge the surface of heat dissipation, ensures even high-end processors
to run in full speed.
|
|
|
|
LIGHTNING GEN 4 SOLUTION
|
The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed. PCIe 4.0
maintains both backward and forward compatibility with older and newer specifications.
|
|
|
|
FROZR HEATSINK DESIGN
|
Higher performance generates more heat. Thermal solution is very important to X570 chipset which featured
latest Gen4 bandwidth. MSI motherboards featured the patented fan design to provide best performance for
enthusiast gamers and prosumers.
|
|
|
|
TRIPLE LIGHTNING M.2 WITH M.2 SHIELD FROZR
|
Cooling your NVMe SSD delays throttling which results in higher overall performance. Part of the motherboards
heatsink design which helps avoid SSD throttling by offering the best thermal protection.
|
|
|
|
Core Boost
|
Core Boost technology combines MSI’s premium layout and digital power design which allows for faster and
undistorted current
delivery to the CPU at pin-point precision. This creates the perfect conditions for multi-core CPU while
doing.
|
|
|
|

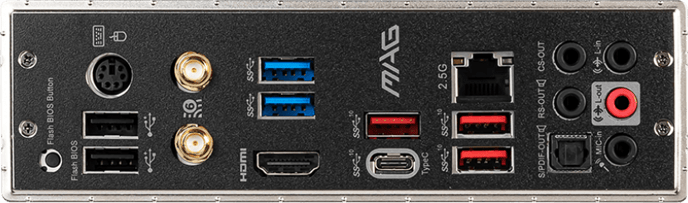

PRE-INSTALLED IO SHIELDING
|
Featuring the pre-installed IO shielding, makes your installation process easier and safer. The patent design
protect your IO ports also prevent electrostatic discharge damage, makes your motherboard a strong gaming
foundation.
|
|
|
|
DOMINATE THE GAME WITH THE LOWEST LATENCY 2.5G GAMING LAN
|
Get ready to crush your enemies on the battlefield with MSI GAMING LAN. Featuring the highest quality
components tuned to deliver the best online gaming experience without lag.
|
|
|
|
WI-FI 6 & BLUETOOTH
|
Use your LAN port for online gaming while using WiFi for other online applications. The Wi-Fi 6 adopts latest
OFDMA and two-way MU-MIMO technologies, delivering wireless transmission speeds up to 2.4Gbps.
|
|
|
|
AMPLIFY YOUR GAME WITH AUDIO BOOST
|
Like a dedicated sound card, Audio Boost offers a HD audio processor, dedicated amplifier and high quality
audio capacitors, all physically isolated from the rest of the motherboard circuitry to ensure the purest
audio signal to locate enemies with pin-point accuracy.
|
|
|
|
UNMATCHED MEMORY PERFORMANCE
|
MSI motherboards are crammed with features to fuel your gaming rig’s memory with more speed, higher
overclockability and increased stability.
|
BEST COMPATIBILITY
|
Optimized traces and a fully isolated memory circuitry ensures perfect stability and performance, so you
never have to worry about your system crashing during games.
|
|
|
|
THE PERFECT FAN LOCATION
|
MSI X570 motherboards provide the ultimate cooling solution for the enthusiast, the Frozr Heatsink design not
only provides maximum airflow, but also maintain the perfect fan location even installed the heavy graphics
card, keep your system runs cool without any overheating issue.
|
|
|
|
