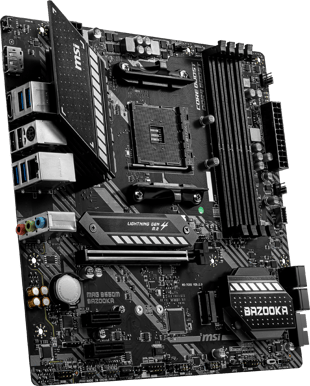

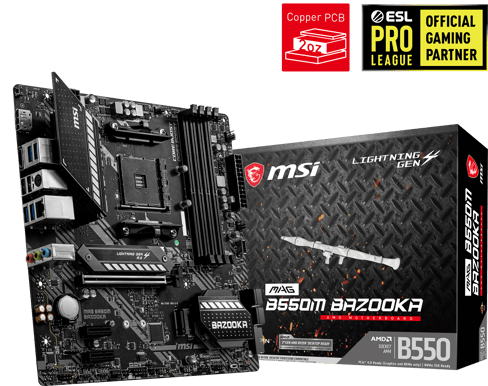

MSI MAG B550M BAZOOKA

Kompakt gamingmoderkort för Ryzen 3000

B550 är en toppmodern och prisvärd plattform tillhörande AMD Ryzen 3000-seriens processorer.
AMD B550 är utrustat med stöd för PCI Express 4.0 vilket ger dubbelt så hög bandbredd jämfört mot tidigare generationer.
MAG B550M BAZOOKA
EXCLUSIVE FEATURE
MSI MAG B550M BAZOOKA CORNERSTONE overview
MSI Core Boost Technology Core Boost Technology
With premium layout design, that is ready for unleashing the maximum performance.
MSI 2oz Thickened Copper PCB 2oz Thickened Copper PCB
2oz thickened copper PCB provides higher performance and long-lasting system stability without any compromise.
MSI Digital PWM Digital PWM
Highest quality component digital power IC makes sure your system runs smoothly under the most extreme conditions.
MSI PCIe Steel Armor PCIe Steel Armor
Protecting VGA cards against bending and EMI for better performance, stability and strength.
MAG B550M BAZOOKA
PREMIUM THERMAL SOLUTION
MSI MAG B550M BAZOOKA THERMAL overview
MSI Extended Heatsink Extended Heatsink
MSI extended heatsink and enhanced circuit design ensures even high-end processors to run in full speed.
MSI M.2 Shield Frozr M.2 Shield Frozr
Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.
MSI Pump Fan Support Pump Fan Support
Control watercooling pump speeds for best flow and noise control.
MSI Heatsinks with 7W/mK Thermal Pa Heatsinks with 7W/mK Thermal Pad
7W/mK thermal pad provides better heat transfer to the heatsink.
MAG B550M BAZOOKA
HIGH-SPEED TRANSMISSION
MSI MAG B550M BAZOOKA LIGHTNING overview
MSI 4K Support 4K Support
Onboard HDMI/DP support up to 4K UHD resolution.
MSI Gigabit Network Solution Gigabit Network Solution
Featuring Gigabit LAN with LAN manager delivers better network experience.
MSI DDR4 Boost DDR4 Boost
The fully isolated DDR circuit to deliver pure data signals for the best gaming and overclocking performance.
MSI Lightning Gen 4 Solution Lightning Gen 4 Solution
The latest Gen 4 PCI-E and M.2 solution with up to 64GB/s banwidth for maximum transfer speed.
ESL PRO LEAGUE PARTNERSHIP
MSI MAG B550M BAZOOKA & MAG VAMPIRIC 100R
MSI MAG B550M BAZOOKA THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE
THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE
With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end CPU to run in full speed with MSI motherboards.
MSI MAG B550M BAZOOKA TWIN TURBO M.2 and M.2 SHIELD FROZR
TWIN TURBO M.2 and M.2 SHIELD FROZR
Cooling your NVMe SSD delays throttling which results in higher overall performance. Part of the motherboards heatsink design which helps avoid SSD throttling by offering the best thermal protection.
MSI MAG B550M BAZOOKA 4 + 2 + 1 DUET RAIL POWER SYSTEM
4 + 2 + 1 DUET RAIL POWER SYSTEM
Unleash and sustain maximum performance with an aggressive VRM design with concurrent stable power delivery. Combining 8pin power connectors and exclusive Core Boost technology, MAG series motherboard is ready to sustain heavy daily work.
  • 4 Duet Rail CPU Power System
  • 2 phases SOC Power
  • 1 phase APU Power
  • Digital PWM IC
MSI MAG B550M BAZOOKA PCB WITH 2OZ THICKENED COPPER
PCB WITH 2OZ THICKENED COPPER
An enhanced PCB design with 2oz thickened copper increases conductivity, improving heat dissipation and performance reliability especially during overclocking.
MSI MAG B550M BAZOOKA LIGHTNING GEN 4
LIGHTNING GEN 4 SOLUTION
The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications.
MSI MAG B550M BAZOOKA CORE BOOST
Core Boost
Core Boost technology combines MSI’s premium layout and digital power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. This creates the perfect conditions for multi-core CPU while doing.
MSI MAG B550M BAZOOKA DDR4 BOOST
UNMATCHED MEMORY PERFORMANCE
MSI motherboards are crammed with features to fuel your system’s memory with more speed, higher overclockability and increased stability. Optimized traces and a fully isolated memory circuitry ensures perfect stability and performance, so you never have to worry about your system crashing.
MSI MAG B550M BAZOOKA FORTIFY YOUR SYSTEM WITH PCI-E STEEL ARMOR
FORTIFY YOUR SYSTEM WITH PCI-E STEEL ARMOR
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.
  • MSI STEEL ARMOR : REINFORCED, HEAVY SOLDERED CONNECTIONS
  • OTHERS : NO STRENGHTENUNG
MSI MAG B550M BAZOOKA AMPLIFY YOUR GAME WITH AUDIO BOOST
AMPLIFY YOUR GAME WITH AUDIO BOOST
Like a dedicated sound card, Audio Boost offers a HD audio processor, dedicated amplifier and high quality audio capacitors, all physically isolated from the rest of the motherboard circuitry to ensure the purest audio signal to locate enemies with pin-point accuracy.

Specifikationer

Allmänt

Chipset
AMD B550
Överklockningsstöd
Ja
Processorsocket
AMD AM4
Formfaktor
mATX

Minne

Internminnestyp
DDR4
Minneshastighet (Standard)
3 200 MHz
Minneshastighet (OC)
3 600 MHz
Antalet platser
4 st
Maximalt minne
128 GB
Kanaler
Dual channel

Expansionsplatser

PCI Express generation
PCIe 4.0
PCI Express x16
1 st
PCI Express x1
2 st
CrossFire
Nej
SLI
Nej

USB bakpanel

USB 2.0
2 st
USB 3.0/3.1 Gen1
4 st

SATA

SATA 6.0 Gbit/s
4 st

M.2

Antal M.2
2 st
M.2 storlek plats 1
2242, 2260, 2280
M.2 gränssnitt plats 1
SATA, PCIE, PCIE4
M.2 key plats 1
M
M.2 storlek plats 2
2242, 2260, 2280
M.2 gränssnitt plats 2
PCIE
M.2 key plats 2
M

Övrig lagring

Intel Optane Memory Ready
Nej

RAID

RAID-stöd
Ja
RAID nivå
RAID 0, RAID 1, RAID 10

Nätverk

Trådat nätverk
1 st
Trådad hastighet
10/100/1000 Mbit/s
Nätverkskontroller
Realtek RTL811HN
Trådlöst nätverk
Nej
Bluetooth
Nej

Grafik

Integrerad grafik
Ja
HDMI-utgång
1 st
DisplayPort-utgång
1 st

Ljud

Ljudkort
Realtek ALC892
Analoga utgångar
1st
Analoga ingångar
Ja
Optisk S/PDIF
Nej

Interna kontakter

USB 2.0
4 st, 2 st interna kontakter
USB 3.0/3.1 Gen1
2 st, 1 st interna kontakter
USB 3.1 Gen1 Type-C
1 st, 1 st interna kontakter
4-pin fläkt
4 st
RGB-Header
Ja
TPM-kontakt
Ja
Seriellport
Ja
Strömkontakter ATX/EPS 12V
1 st 8-pin

Övrigt

Medföljande SATA 6 Gb/s
2 st
Längd
244 mm
Bredd
244 mm
Garanti
3 år

Artikelnummer

Paketbredd
26.9 cm
Pakethöjd
6.5 cm
Paketlängd
34.6 cm
Paketvikt
1.301 kg
Vårt ArtNr
1903292
Tillverkarens ArtNr
MAG B550M BAZOOKA
Upplagd
2020-06-15 08:00
Releasedatum
2020‑06‑16 15:00
