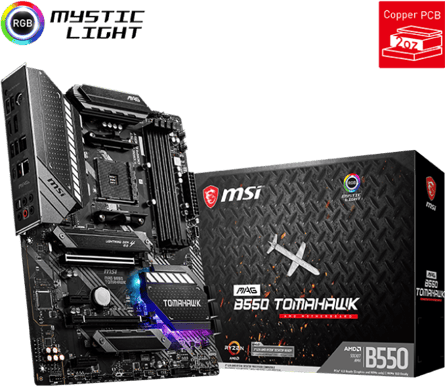

MSI MAG B550 TOMAHAWK

Gamingmoderkort för Ryzen 3000

B550 är en toppmodern och prisvärd plattform tillhörande AMD Ryzen 3000-seriens processorer.
AMD B550 är utrustat med stöd för PCI Express 4.0 vilket ger dubbelt så hög bandbredd jämfört mot tidigare generationer.
MAG B550 TOMAHAWK
EXCLUSIVE FEATURE
MSI MAG B550 TOMAHAWK CORNERSTONE overview
MSI Core Boost Technology Core Boost Technology
With premium layout design, that is ready for unleashing the maximum performance.
MSI 6 layer PCB 6 layer PCB
6 layer PCB provides higher performance and long-lasting system stability without any compromise.
MSI 2oz Thickened Copper PCB 2oz Thickened Copper PCB
An enhanced PCB design improves heat dissipation and performance reliability.
MSI Digital PWM Digital PWM
Highest quality component digital power IC makes sure your system runs smoothly under the most extreme conditions.
MSI PCIe Steel Armor PCIe Steel Armor
Protecting VGA cards against bending and EMI for better performance, stability and strength.
MAG B550 TOMAHAWK
PREMIUM THERMAL SOLUTION
MSI MAG B550 TOMAHAWK THERMAL overview
MSI Extended Heatsink Extended Heatsink
MSI extended heatsink and enhanced circuit design ensures even high-end processors to run in full speed.
MSI M.2 Shield Frozr M.2 Shield Frozr
Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.
MSI Pump Fan Support Pump Fan Support
Control watercooling pump speeds for best flow and noise control.
MSI Heatsinks with 7W/mK Thermal Pad Heatsinks with 7W/mK Thermal Pad
7W/mK thermal pad provides better heat transfer to the heatsink.
MAG B550 TOMAHAWK
HIGH-SPEED TRANSMISSION
MSI MAG B550 TOMAHAWK LIGHTNING overview
MSI 2.5G plus Gigabit LAN 2.5G plus Gigabit LAN
Featuring 2.5G, Gigabit LAN with LAN manager delivers better network experience.
MSI Turbo USB Turbo USB
Featuring the TURBO USB 3.2 Gen 2 10Gbps with reversible Type-C connector.
MSI DDR4 Boost DDR4 Boost
The fully isolated DDR circuit to deliver pure data signals for the best gaming and overclocking performance.
MSI Lightning Gen 4 Solution Lightning Gen 4 Solution
The latest Gen 4 PCI-E and M.2 solution with up to 64GB/s banwidth for maximum transfer speed.
ESL PRO LEAGUE PARTNERSHIP
MSI MAG B550 TOMAHAWK & MAG VAMPIRIC 100R
MSI MAG B550 TOMAHAWK THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE
THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE
With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end CPU to run in full speed with MSI motherboards.
MSI MAG B550 TOMAHAWK TWIN TURBO M.2 and M.2 SHIELD FROZR
TWIN TURBO M.2 and M.2 SHIELD FROZR
Cooling your NVMe SSD delays throttling which results in higher overall performance. Part of the motherboards heatsink design which helps avoid SSD throttling by offering the best thermal protection.
MSI MAG B550 TOMAHAWK 10 + 2 + 1 DUET RAIL POWER SYSTEM
10 + 2 + 1 DUET RAIL POWER SYSTEM
Unleash and sustain maximum performance with an aggressive VRM design with concurrent stable power delivery. Combining 8pin power connectors and exclusive Core Boost technology, MAG series motherboard is ready to sustain heavy daily work.
  • 10 Duet Rail CPU Power System / Smart Power Stage 60A
  • 2 phases SOC Power
  • 1 phases APU Power
  • Digital PWM IC
MSI MAG B550 TOMAHAWK PCB WITH 2OZ THICKENED COPPER
PCB WITH 2OZ THICKENED COPPER
An enhanced PCB design with 2oz thickened copper increases conductivity, improving heat dissipation and performance reliability especially during overclocking.
MSI MAG B550 TOMAHAWK LIGHTNING GEN 4
LIGHTNING GEN 4 SOLUTION
The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications.
MSI MAG B550 TOMAHAWK GAMING RIG
CUSTOMIZE YOUR GAMING RIG
Personalize your PC with 16.8 million colors and 29 effects through Mystic Light RGB LED. Controlled in one click with the Mystic Light APP or a mobile device.
  • Customize colors
  • Customize effects
MSI MAG B550 TOMAHAWK DUAL LAN WITH 2.5G LAN
DUAL LAN WITH 2.5G LAN
MAG B550 TOMAHAWK features high-bandwidth and low-latency 2.5G plus Gigabit LAN for demanding creators and power users. Onboard 2.5Gbps connectivity provides incredible data transfer speed faster than ever before. MSI LAN Manager automatically classifies and prioritizes the latency-sensitive for your applications, giving you the best online experience with low latency.
MSI MAG B550 TOMAHAWK CORE BOOST
Core Boost
Core Boost technology combines MSI’s premium layout and digital power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. This creates the perfect conditions for multi-core CPU while doing.
MSI MAG B550 TOMAHAWK DDR4 BOOST
UNMATCHED MEMORY PERFORMANCE
MSI motherboards are crammed with features to fuel your system’s memory with more speed, higher overclockability and increased stability. Optimized traces and a fully isolated memory circuitry ensures perfect stability and performance, so you never have to worry about your system crashing.
MSI MAG B550 TOMAHAWK MULTIPLE GPU SUPPORTS AND STEEL ARMOR
MULTIPLE GPU SUPPORTS AND STEEL ARMOR
MAG B550 TOMAHAWK supports multiple GPU solution. Optimal PCI-Express slot placement allows for better fitting and airflow. That way, you can enjoy the best graphics at the highest framerate jumping from your screen when running an AMD® CrossFire setup Steel Armor has more solder points on the PCB for more strength and protects the PCI-Express signals against electromagnetic interference for a stutter-free user experience.
MSI MAG B550 TOMAHAWK AMPLIFY YOUR GAME WITH AUDIO BOOST
AMPLIFY YOUR GAME WITH AUDIO BOOST
Like a dedicated sound card, Audio Boost offers a HD audio processor, dedicated amplifier and high quality audio capacitors, all physically isolated from the rest of the motherboard circuitry to ensure the purest audio signal to locate enemies with pin-point accuracy.

Specifikationer

Allmänt

Chipset
AMD B550
Överklockningsstöd
Ja
Processorsocket
AMD AM4
Formfaktor
ATX

Minne

Internminnestyp
DDR4
Minneshastighet (Standard)
3 200 MHz
Minneshastighet (OC)
5 100 MHz
Antalet platser
4 st
Maximalt minne
128 GB
Kanaler
Dual channel

Expansionsplatser

PCI Express generation
PCIe 3.0, PCIe 4.0
PCI Express x16
2 st
PCI Express x1
2 st
CrossFire
Ja
SLI
Nej

USB bakpanel

USB 2.0
2 st
USB 3.0/3.1 Gen1
2 st
USB 3.1 Gen 2
1 st
USB 3.1 Gen 2 Type-C
1 st

SATA

SATA 6.0 Gbit/s
6 st

M.2

Antal M.2
2 st
M.2 storlek plats 1
2242, 2260, 2280, 22110
M.2 gränssnitt plats 1
SATA, PCIE, PCIE4
M.2 key plats 1
M
M.2 storlek plats 2
2242, 2260, 2280
M.2 gränssnitt plats 2
PCIE
M.2 key plats 2
M

Övrig lagring

Intel Optane Memory Ready
Nej

RAID

RAID-stöd
Ja
RAID nivå
RAID 0, RAID 1, RAID 10

Nätverk

Trådat nätverk
2 st
Trådad hastighet
10/100/1000 Mbit/s + 2.5Gbit/s
Nätverkskontroller
Realtek RTL8125B 2.5G + Realtek RTL8111H
Trådlöst nätverk
Nej
Bluetooth
Nej

Grafik

Integrerad grafik
Ja
Grafikmodell
AMD APU
HDMI-utgång
1 st
DisplayPort-utgång
1 st

Ljud

Ljudkort
Realtek ALC1200
Analoga utgångar
3st
Analoga ingångar
Ja
Optisk S/PDIF
Ja

Interna kontakter

USB 2.0
4 st, 2 st interna kontakter
USB 3.0/3.1 Gen1
2 st, 1 st interna kontakter
USB 3.1 Gen1 Type-C
1 st, 1 st interna kontakter
4-pin fläkt
7 st
RGB-Header
Ja
TPM-kontakt
Ja
Strömkontakter ATX/EPS 12V
1 st 8-pin

Övrigt

LED-belysning
Ja
Medföljande SATA 6 Gb/s
2 st
Längd
305 mm
Bredd
244 mm
Garanti
3 år

Artikelnummer

Paketbredd
26.9 cm
Pakethöjd
6.5 cm
Paketlängd
34.6 cm
Paketvikt
2.018 kg
Vårt ArtNr
1903294
Tillverkarens ArtNr
MAG B550 TOMAHAWK
Upplagd
2020-06-04 17:00
Releasedatum
2020‑06‑16 15:00
Produktblad
Produktblad
1903294_0.pdf

Frågor och Svar

Här kan du ställa frågor du har om produkten. Vi bevakar och svarar själva de frågor som kommer in, men alla är välkomna att svara på frågor och vi uppmuntrar vårt kunniga community att hänga på!

Josephs avatarbild

Joseph

Har ni någon koll på när MAX versionen kommer ut med uppdaterat BIOS för nvidias 30xx serie och zen 3?

0

Inet Kundservices avatarbild

Inet Kundservice

Hej, Vi har ingen information gällande lansering utav kommande moderkort vid tillfället. Men lite närmare lansering så kommer det dyka upp på hemsidan! Vänligen,

0

Axels avatarbild

Axel

hej jag undrade om det gör någon skillnad med att inte ha 2.5g lan på moderkortet när man har 250mbit/s på wifit

0

Inet Kundservices avatarbild

Inet Kundservice

Hej! LAN och WLAN är helt separat från varandra och hastigheten är oberoende av den andra. Detta moderkortet har inte trådlöst nätverk alls och man måste då installera något trådlöst nätverkskort. Vänligen,

0

Robins avatarbild

Robin

Tjenis! Kommer jag behöver köpa en adapter till Noctua NH-D15 eller får fläkten plats "as is"?

0

Inet Kundservices avatarbild

Inet Kundservice

Hej Robin! Om du har AM4-monteringskitet till NH-D15 kylaren så kommer du kunna använda den med detta moderkortet. Har du inte det så behöver du köpa till denna: https://www.inet.se/produkt/5320127/noctua-nm-am4-mounting-kit Ha en bra dag!
