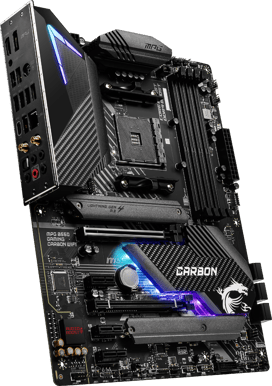

MSI B550 GAMING CARBON WIFI

Gamingmoderkort med WiFi

B550 är en toppmodern och prisvärd plattform tillhörande AMD Ryzen 3000-seriens processorer.
AMD B550 är utrustat med stöd för PCI Express 4.0 vilket ger dubbelt så hög bandbredd jämfört mot tidigare generationer.
MPG B550 GAMING CARBON WIFI
EXCLUSIVE FEATURE
MSI MPG B550 GAMING CARBON WIFI CORNERSTONE overview
MSI Core Boost Technology Core Boost Technology
Combining 8+4 pin power connectors and premium layout design, that is ready for unleashing the maximum performance.
MSI 6 layer PCB 6 layer PCB
6 layer PCB provides higher performance and long-lasting system stability without any compromise.
MSI 2oz Thickened Copper PCB 2oz Thickened Copper PCB
An enhanced PCB design improves heat dissipation and performance reliability.
MSI Digital PWM Digital PWM
Highest quality component digital power IC makes sure your system runs smoothly under the most extreme conditions.
MSI PCIe Steel Armor PCIe Steel Armor
Protecting VGA cards against bending and EMI for better performance, stability and strength.
MPG B550 GAMING CARBON WIFI
PREMIUM THERMAL SOLUTION
MSI MPG B550 GAMING CARBON WIFI THERMAL overview
MSI Aluminum Cover Aluminum Cover
All-metal extended heatsink cover enlarges the surface of heat dissipation, ensuring even high-end processors to run in full speed.
MSI Heatsinks with Additional 7W/mK Choke Thermal Pad Heatsinks with Additional 7W/mK Choke Thermal Pad
7W/mK thermal pad provides better heat transfer to the heatsink.
MSI M.2 Shield Frozr M.2 Shield Frozr
The Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.
MSI Pump Fan Support Pump Fan Support
Control watercooling pump speeds for best flow and noise control.
MSI Enlarged Chipset Heatsink Enlarged Chipset Heatsink
Larger heatsink for chipset ensures better heat dissipation and cooling effects.
MPG B550 GAMING CARBON WIFI
HIGH-SPEED TRANSMISSION
MSI MPG B550 GAMING CARBON WIFI LIGHTNING overview
MSI Turbo USB Turbo USB
Featuring the TURBO USB 3.2 Gen 2 10Gbps with reversible Type-C connector.
MSI 2.5G Network Solution 2.5G Network Solution
Featuring premium 2.5G LAN with LAN manager delivers better network experience.
MSI Intel Wi-Fi 6 Intel Wi-Fi 6
The latest wireless solution supports MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.
MSI DDR4 Boost DDR4 Boost
The Fully isolated DIMM slots to deliver pure data signals for the best gaming and overclocking performance.
MSI Lightning Gen 4 Solution Lightning Gen 4 Solution
The latest Gen 4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.
ESL PRO LEAGUE PARTNERSHIP
MSI MPG B550 GAMING CARBON WIFI & MPG GUNGNIR 110
MSI MPG B550 GAMING CARBON WIFI LIGHTNING GEN 4
LIGHTNING GEN 4 SOLUTION
The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications.
MSI MPG B550 GAMING CARBON WIFI 12+2 DIGITAL POWER with DOUBLER DESIGN
12+2 DIGITAL POWER with DOUBLER DESIGN
Unleash and sustain maximum performance with an aggressive VRM design with concurrent stable power delivery. Combining 8 + 4-pin power connectors and exclusive Core Boost technology, MPG series motherboard is ready to sustain heavy daily work.
MSI MPG B550 GAMING CARBON WIFI THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE
THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE
All Aluminum Cover with additional choke thermal pad rated for 7W/mK level and M.2 Shield Frozr ensure best cooling effects and low temperature.
MSI MPG B550 GAMING CARBON WIFI PCB WITH 2OZ THICKENED COPPER
PCB WITH 2OZ THICKENED COPPER
An enhanced PCB design with 2oz thickened copper increases conductivity, improving heat dissipation and performance reliability especially during overclocking.
MSI MPG B550 GAMING CARBON WIFI GAMING RIG
CUSTOMIZE YOUR GAMING RIG
Personalize your PC with 16.8 million colors and 29 effects through Mystic Light RGB LED. Controlled in one click with the Mystic Light APP or a mobile device.
  • Customize colors
  • Customize effects
MSI MPG B550 GAMING CARBON WIFI MAXIMIUM DATA TRANSFER WITH 2.5G LAN
MAXIMIUM DATA TRANSFER WITH 2.5G LAN
MPG B550 GAMING CARBON WIFI features high-bandwidth and low-latency Ethernet networks for demanding gamers and power users. Onboard 2.5Gbps connectivity provides incredible data transfer speed faster than ever before. MSI LAN Manager automatically classifies and prioritizes the latency-sensitive for your applications, giving you the best online experience with low latency.
MSI WI-FI 6 & BLUETOOTH
WI-FI 6 & BLUETOOTH
Use your LAN port for online gaming while using WiFi for other online applications. The Wi-Fi 6 adopts latest OFDMA and two-way MU-MIMO technologies, delivering wireless transmission speeds up to 2.4Gbps.
MSI MPG B550 GAMING CARBON WIFI CORE BOOST
Core Boost
Core Boost technology combines MSI’s premium layout and digital power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. This creates the perfect conditions for multi-core CPU while doing.
MSI MPG B550 GAMING CARBON WIFI DDR4 BOOST
UNMATCHED MEMORY PERFORMANCE
MSI motherboards are crammed with features to fuel your system’s memory with more speed, higher overclockability and increased stability. Optimized traces and a fully isolated memory circuitry ensures perfect stability and performance, so you never have to worry about your system crashing.
MSI MPG B550 GAMING CARBON WIFI MULTIPLE GPU SUPPORTS AND STEEL ARMOR
MULTIPLE GPU SUPPORTS AND STEEL ARMOR
MPG B550 GAMING CARBON WIFI supports multiple GPU solution. Optimal PCI-Express slot placement allows for better fitting and airflow. That way, you can enjoy the best graphics at the highest framerate jumping from your screen when running an AMD® CrossFire setup Steel Armor has more solder points on the PCB for more strength and protects the PCI-Express signals against electromagnetic interference for a stutter-free user experience.
MSI MPG B550 GAMING CARBON WIFI AMPLIFY YOUR GAME WITH AUDIO BOOST
AMPLIFY YOUR GAME WITH AUDIO BOOST
Like a dedicated sound card, Audio Boost offers a HD audio processor, dedicated amplifier and high quality audio capacitors, all physically isolated from the rest of the motherboard circuitry to ensure the purest audio signal to locate enemies with pin-point accuracy.

Specifikationer

Allmänt

Chipset
AMD B550
Överklockningsstöd
Ja
Processorsocket
AMD AM4
Formfaktor
ATX

Minne

Internminnestyp
DDR4
Minneshastighet (Standard)
2 933 MHz
Minneshastighet (OC)
5 100 MHz
Antalet platser
4 st
Maximalt minne
128 GB
Kanaler
Dual channel

Expansionsplatser

PCI Express generation
PCIe 3.0, PCIe 4.0
PCI Express x16
2 st
PCI Express x1
3 st
CrossFire
Ja
SLI
Nej

USB bakpanel

USB 2.0
4 st
USB 3.0/3.1 Gen1
2 st
USB 3.1 Gen 2
1 st
USB 3.1 Gen 2 Type-C
1 st

SATA

SATA 6.0 Gbit/s
6 st

M.2

Antal M.2
2 st
M.2 storlek plats 1
2242, 2260, 2280, 22110
M.2 gränssnitt plats 1
SATA, PCIE, PCIE4
M.2 key plats 1
M
M.2 storlek plats 2
2242, 2260, 2280
M.2 gränssnitt plats 2
PCIE
M.2 key plats 2
M

Övrig lagring

Intel Optane Memory Ready
Nej

RAID

RAID-stöd
Ja
RAID nivå
RAID 0, RAID 1, RAID 10

Nätverk

Trådat nätverk
1 st
Trådad hastighet
2.5 Gbit/s
Nätverkskontroller
Realtek RTL8125B 2.5G
Trådlöst nätverk
Ja
Trådlös standard
802.11 a/b/g/n/ac/ax
Bluetooth
Ja
Bluetooth standard
5.1

Grafik

Integrerad grafik
Ja
Grafikmodell
AMD APU
HDMI-utgång
1 st
DisplayPort-utgång
1 st

Ljud

Ljudkort
Realtek ALC1200
Analoga utgångar
3st
Analoga ingångar
Ja
Optisk S/PDIF
Ja

Interna kontakter

USB 2.0
4 st, 2 st interna kontakter
USB 3.0/3.1 Gen1
2 st, 1 st interna kontakter
USB 3.1 Gen1 Type-C
1 st, 1 st interna kontakter
4-pin fläkt
7 st
RGB-Header
Ja
TPM-kontakt
Ja
Strömkontakter ATX/EPS 12V
1 st 8-pin, 1 st 4pin

Övrigt

LED-belysning
Ja
Medföljande SATA 6 Gb/s
2 st
Längd
304 mm
Bredd
244 mm
Garanti
3 år

Artikelnummer

Paketbredd
26.9 cm
Pakethöjd
6.5 cm
Paketlängd
34.6 cm
Paketvikt
1.973 kg
Vårt ArtNr
1903296
Tillverkarens ArtNr
B550 GAMING CARBON WIFI
Upplagd
2020-06-04 17:00
Releasedatum
2020‑06‑16 15:00
Produktblad
Produktblad
1903296_0.pdf
