Framröstad recension

Ashton

Grym mAtx moderkort! I särklass bästa b550m som det går att köpa just nu! Smakar det så kostar det !

Wifi 6 + Bluetooth 5.0

Biffigt Kylfläns för OC

Stilren robust look

Priset

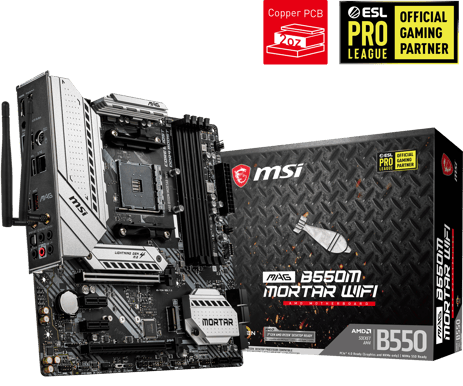

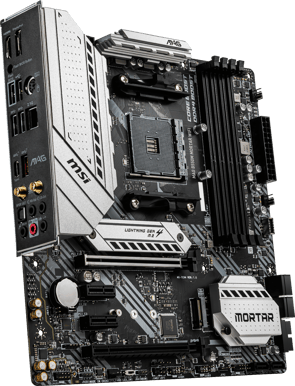

MSI MAG B550M MORTAR WIFI

Kompakt gamingmoderkort med WiFi

B550 är en toppmodern och prisvärd plattform tillhörande AMD Ryzen 3000-seriens processorer.
AMD B550 är utrustat med stöd för PCI Express 4.0 vilket ger dubbelt så hög bandbredd jämfört mot tidigare generationer.
MAG B550M MORTAR WIFI
EXCLUSIVE FEATURE
MSI MAG B550M MORTAR WIFI CORNERSTONE overview
MSI Core Boost Technology Core Boost Technology
With premium layout design, that is ready for unleashing the maximum performance.
MSI 2oz Thickened Copper PCB 2oz Thickened Copper PCB
2oz thickened copper PCB provides higher performance and long-lasting system stability without any compromise.
MSI Digital PWM Digital PWM
Highest quality component digital power IC makes sure your system runs smoothly under the most extreme conditions.
MSI PCIe Steel Armor PCIe Steel Armor
Protecting VGA cards against bending and EMI for better performance, stability and strength.
MAG B550M MORTAR WIFI
PREMIUM THERMAL SOLUTION
MSI MAG B550M MORTAR WIFI THERMAL overview
MSI Extended Heatsink Extended Heatsink
MSI extended heatsink and enhanced circuit design ensures even high-end processors to run in full speed.
MSI M.2 Shield Frozr M.2 Shield Frozr
Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.
MSI Pump Fan Support Pump Fan Support
Control watercooling pump speeds for best flow and noise control.
MSI Heatsinks with Additional 7W/mK Choke Thermal Pad Heatsinks with Additional 7W/mK Choke Thermal Pad
7W/mK thermal pad provides better heat transfer to the heatsink.
MAG B550M MORTAR WIFI
HIGH-SPEED TRANSMISSION
MSI MAG B550M MORTAR WIFI LIGHTNING overview
MSI 2.5G LAN 2.5G LAN
Featuring 2.5G LAN with LAN manager delivers better network experience.
MSI Turbo USB Turbo USB
Featuring the TURBO USB 3.2 Gen 2 10Gbps with reversible Type-C connector.
MSI Intel Wi-Fi 6 Intel Wi-Fi 6
The latest wireless solution support MU-MIMO and BSS color technology. delivering speeds up to 2400Mbps.
MSI DDR4 Boost DDR4 Boost
The fully isolated DDR circuit to deliver pure data signals for the best gaming and overclocking performance.
MSI Lightning Gen 4 Solution Lightning Gen 4 Solution
The latest Gen 4 PCI-E and M.2 solution with up to 64GB/s banwidth for maximum transfer speed.
ESL PRO LEAGUE PARTNERSHIP
MSI MAG B550M MORTAR WIFI & MAG VAMPIRIC 100R
MSI MAG B550M MORTAR WIFI THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE
THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE
With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end CPU to run in full speed with MSI motherboards.
MSI MAG B550M MORTAR WIFI TWIN TURBO M.2 and M.2 SHIELD FROZR
TWIN TURBO M.2 and M.2 SHIELD FROZR
Cooling your NVMe SSD delays throttling which results in higher overall performance. Part of the motherboards heatsink design which helps avoid SSD throttling by offering the best thermal protection.
MSI MAG B550M MORTAR WIFI 8 + 2 + 1 DUET RAIL POWER SYSTEM
8 + 2 + 1 DUET RAIL POWER SYSTEM
Unleash and sustain maximum performance with an aggressive VRM design with concurrent stable power delivery. Combining 8pin power connectors and exclusive Core Boost technology, MAG series motherboard is ready to sustain heavy daily work.
  • 8 Duet Rail CPU Power System ( Smart Power Stage / 60A )
  • 2 phases SOC Power
  • 1 phase APU Power
  • Digital PWM IC
MSI MAG B550M MORTAR WIFI PCB WITH 2OZ THICKENED COPPER
PCB WITH 2OZ THICKENED COPPER
An enhanced PCB design with 2oz thickened copper increases conductivity, improving heat dissipation and performance reliability especially during overclocking.
MSI MAG B550M MORTAR WIFI LIGHTNING GEN 4
LIGHTNING GEN 4 SOLUTION
The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications.
MSI MAG B550M MORTAR WIFI MAXIMIUM DATA TRANSFER WITH 2.5G LAN
MAXIMIUM DATA TRANSFER WITH 2.5G LAN
MAG B550M MORTAR WIFI features high-bandwidth and low-latency Ethernet networks for demanding gamers and power users. Onboard 2.5Gbps connectivity provides incredible data transfer speed faster than ever before. MSI LAN Manager automatically classifies and prioritizes the latency-sensitive for your applications, giving you the best online experience with low latency.
MSI MAG B550M MORTAR WIFI WI-FI 6 & BLUETOOTH
WI-FI 6 & BLUETOOTH
Use your LAN port for online gaming while using WiFi for other online applications. The Wi-Fi 6 adopts latest OFDMA and two-way MU-MIMO technologies, delivering wireless transmission speeds up to 2.4Gbps.
MSI MAG B550M MORTAR WIFI CORE BOOST
Core Boost
Core Boost technology combines MSI’s premium layout and digital power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. This creates the perfect conditions for multi-core CPU while doing.
MSI MAG B550M MORTAR WIFI DDR4 BOOST
UNMATCHED MEMORY PERFORMANCE
MSI motherboards are crammed with features to fuel your system’s memory with more speed, higher overclockability and increased stability. Optimized traces and a fully isolated memory circuitry ensures perfect stability and performance, so you never have to worry about your system crashing.
MSI MAG B550M MORTAR WIFI MULTIPLE GPU SUPPORTS AND STEEL ARMOR
MULTIPLE GPU SUPPORTS AND STEEL ARMOR
MAG B550M MORTAR WIFI supports multiple GPU solution. Optimal PCI-Express slot placement allows for better fitting and airflow. That way, you can enjoy the best graphics at the highest framerate jumping from your screen when running an AMD® CrossFire setup Steel Armor has more solder points on the PCB for more strength and protects the PCI-Express signals against electromagnetic interference for a stutter-free user experience.
MSI MAG B550M MORTAR WIFI AMPLIFY YOUR GAME WITH AUDIO BOOST
AMPLIFY YOUR GAME WITH AUDIO BOOST
Like a dedicated sound card, Audio Boost offers a HD audio processor, dedicated amplifier and high quality audio capacitors, all physically isolated from the rest of the motherboard circuitry to ensure the purest audio signal to locate enemies with pin-point accuracy.

Specifikationer

Allmänt

Chipset
AMD B550
Överklockningsstöd
Ja
Processorsocket
AMD AM4
Formfaktor
mATX

Minne

Internminnestyp
DDR4
Minneshastighet (Standard)
3 200 MHz
Minneshastighet (OC)
4 400 MHz
Antalet platser
4 st
Maximalt minne
128 GB
Kanaler
Dual channel

Expansionsplatser

PCI Express generation
PCIe 4.0
PCI Express x16
2 st
PCI Express x1
2 st
CrossFire
Ja
SLI
Nej

USB bakpanel

USB 2.0
2 st
USB 3.0/3.1 Gen1
2 st
USB 3.1 Gen 2
1 st
USB 3.1 Gen 2 Type-C
1 st

SATA

SATA 6.0 Gbit/s
6 st

M.2

Antal M.2
2 st
M.2 storlek plats 1
2242, 2260, 2280
M.2 gränssnitt plats 1
SATA, PCIE, PCIE4
M.2 key plats 1
M
M.2 storlek plats 2
2242, 2260, 2280
M.2 gränssnitt plats 2
PCIE
M.2 key plats 2
M

Övrig lagring

Intel Optane Memory Ready
Nej

RAID

RAID-stöd
Ja
RAID nivå
RAID 0, RAID 1, RAID 10

Nätverk

Trådat nätverk
1 st
Trådad hastighet
2.5 Gbit/s
Nätverkskontroller
Realtek RTL8125B 2.5G
Trådlöst nätverk
Ja
Trådlös standard
802.11 a/b/g/n/ac/ax
Bluetooth
Ja
Bluetooth standard
5.1

Grafik

Integrerad grafik
Ja
HDMI-utgång
1 st
DisplayPort-utgång
1 st

Ljud

Ljudkort
Realtek ALC1200
Analoga utgångar
3st
Analoga ingångar
Ja
Optisk S/PDIF
Ja

Interna kontakter

USB 2.0
4 st, 2 st interna kontakter
USB 3.0/3.1 Gen1
2 st, 1 st interna kontakter
USB 3.1 Gen1 Type-C
1 st, 1 st interna kontakter
4-pin fläkt
4 st
RGB-Header
Ja
TPM-kontakt
Ja
Strömkontakter ATX/EPS 12V
1 st 8-pin

Övrigt

Medföljande SATA 6 Gb/s
2 st
Längd
244 mm
Bredd
244 mm
Garanti
3 år

Artikelnummer

Paketbredd
26.9 cm
Pakethöjd
6.5 cm
Paketlängd
34.6 cm
Paketvikt
1.628 kg
Vårt ArtNr
1903310
Tillverkarens ArtNr
MAG B550M MORTAR WIFI
Upplagd
2020-06-04 17:00
Releasedatum
2020‑06‑16 15:00
Produktblad
Produktblad
1903310_0.pdf

Frågor och Svar

Här kan du ställa frågor du har om produkten. Vi bevakar och svarar själva de frågor som kommer in, men alla är välkomna att svara på frågor och vi uppmuntrar vårt kunniga community att hänga på!

Annas avatarbild
Anna

Hej! Stöder detta moderkort ryzen 5000

0

Davids avatarbild
David

Hej igen Anna , Då bör du kolla efter ett MSI B550 moderkort , Den har stöd för användning av 5000 Serie AMD Ryzen Processor. 1.MSI MPG Moderkort Gaming Plus Artikel nummer : 1903295 Direktlänk : https://www.inet.se/produkt/1903295/msi-mpg-b550-gaming-plus

0

Pauloks avatarbild
Paulok

Hej! Kan jag installera rtx 3080, en Ryzen 9 plus en corsair nx500 ssd på denna?

0

Inet Kundservices avatarbild
Inet Kundservice

Hej Paulok, Det bör inte vara något problem där men vi skulle nog behöva avvakta lite till att vi har mer uppgifter om korten och hur mycket bandbredd de kräver. Vänligen,

0
