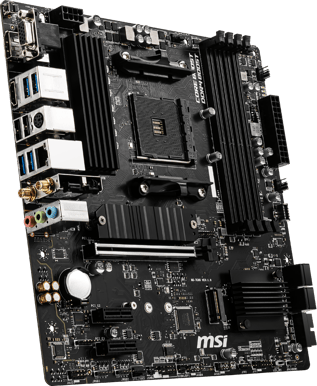

MSI B550M PRO-VDH WIFI

Moderkort för Ryzen 3000 med WiFi

B550 är en toppmodern och prisvärd plattform tillhörande AMD Ryzen 3000-seriens processorer.
AMD B550 är utrustat med stöd för PCI Express 4.0 vilket ger dubbelt så hög bandbredd jämfört mot tidigare generationer.
B550M PRO-VDH WIFI
BUSINESS ELEGANCE
MSI B550M PRO-VDH WIFI overview
MSI Flash BIOS Button Flash BIOS Button
Simply use a USB key to flash any BIOS within seconds, without installing a CPU, memory or graphics card.
MSI Wi-Fi Wi-Fi
Delivering AC speeds up to 433Mbps with lower CPU loading and better long-term usage.
MSI Audio Boost Audio Boost
Reward your ears with studio grade sound quality for the most immersive gaming experience.
MSI 2oz Thickened Copper PCB 2oz Thickened Copper PCB
An enhanced PCB design improves heat dissipation and performance reliability.
MSI Core Boost Core Boost
With premium layout and digital power design to support more cores and provide better performance.
MSI DDR4 BOOST DDR4 Boost
The fully isolated DDR circuit to deliver pure data signals for the best performance and stability.
MSI M.2 Shield Frozr M.2 Shield Frozr
Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.
MSI B550M PRO-VDH WIFI & 7G07R
MSI B550M PRO-VDH WIFI CORE BOOST
Core Boost
Core Boost technology combines MSI’s premium layout and digital power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, but creating the perfect conditions for your CPU overclocking.

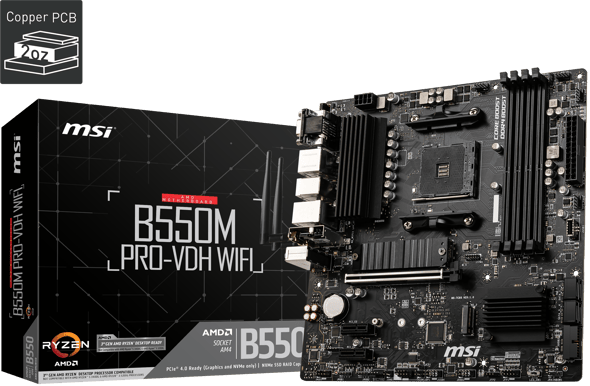

MSI B550 -A PRO PCB WITH 2OZ THICKENED COPPER
PCB WITH 2OZ THICKENED COPPER
An enhanced PCB design with 2oz thickened copper increases conductivity, improving heat dissipation and performance reliability especially during overclocking.
MSI B550M PRO-VDH WIFI USB Type-C ready in Front case panel
USB Type-C ready in Front case panel
Get all the performance benefits from the USB Type-C connector. This reversible USB connector allows for effortless connecting of USB devices.
MSI B550M PRO-VDH WIFI LIGHTNING GEN4 M.2 WITH M.2 SHIELD FROZR
LIGHTNING GEN4 M.2 WITH M.2 SHIELD FROZR
Cooling your NVMe SSD delays throttling which results in higher overall performance. Part of the motherboards heatsink design which helps avoid SSD throttling by offering the best thermal protection.
MSI B550 -A PRO LIGHTNING GEN 4 SOLUTION
LIGHTNING GEN 4 SOLUTION
The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications.
MSI B550M PRO-VDH WIFI UNMATCHED MEMORY PERFORMANCE
UNMATCHED MEMORY PERFORMANCE
MSI motherboards are crammed with features to fuel your system’s memory with more speed, higher overclockability and increased stability. Optimized traces and a fully isolated memory circuitry ensures perfect stability and performance, so you never have to worry about your system crashing.
MSI B550M PRO-VDH WIFI STEEL ARMOR
STEEL ARMOR

Steel Armor has more solder points on the PCB for more strength and protects the PCI-Express signals against electromagnetic interference for a stutter-free user experience.

MSI B550M PRO-VDH WIFI EXTEND YOUR RGB EXPERIENCE WITH EASE
EXTEND YOUR RGB EXPERIENCE WITH EASE

Add your color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.

MSI B550M PRO-VDH WIFI INTEL® WI-FI AC & BLUETOOTH
INTEL® WI-FI AC & BLUETOOTH

Use your LAN port for online gaming while using WiFi for other online applications. The Intel® Wi-Fi / Bluetooth solution delivers AC speeds up to 433Mbps.

MSI B550M PRO-VDH WIFI AUDIO BOOST
AUDIO BOOST

Reward your ears with studio grade sound quality. MSI Audio Boost delivers the highest sound quality through the use of premium quality audio components. This lets you enjoy breathtaking, studio quality sound to create the most immersive sound experience.

Specifikationer

Allmänt

Chipset
AMD B550
Överklockningsstöd
Ja
Processorsocket
AMD AM4
Formfaktor
mATX

Minne

Internminnestyp
DDR4
Minneshastighet (Standard)
3 200 MHz
Minneshastighet (OC)
4 400 MHz
Antalet platser
4 st
Maximalt minne
128 GB
Kanaler
Dual channel

Expansionsplatser

PCI Express generation
PCIe 4.0
PCI Express x16
1 st
PCI Express x1
2 st
CrossFire
Nej
SLI
Nej

USB bakpanel

USB 2.0
2 st
USB 3.0/3.1 Gen1
4 st

SATA

SATA 6.0 Gbit/s
4 st

M.2

Antal M.2
2 st
M.2 storlek plats 1
2242, 2260, 2280
M.2 gränssnitt plats 1
SATA, PCIE, PCIE4
M.2 key plats 1
M
M.2 storlek plats 2
2242, 2260, 2280
M.2 gränssnitt plats 2
PCIE
M.2 key plats 2
M

Övrig lagring

Intel Optane Memory Ready
Nej

RAID

RAID-stöd
Ja
RAID nivå
RAID 0, RAID 1, RAID 10

Nätverk

Trådat nätverk
1 st
Trådad hastighet
10/100/1000 Mbit/s
Nätverkskontroller
Realtek RTL 8111HN
Trådlöst nätverk
Ja
Trådlös standard
802.11 a/b/g/n/ac
Bluetooth
Ja
Bluetooth standard
4.2

Grafik

Integrerad grafik
Ja
VGA-utgång
1 st
HDMI-utgång
1 st
DisplayPort-utgång
1 st

Ljud

Ljudkort
Realtek ALC892
Analoga utgångar
1st
Analoga ingångar
Ja
Optisk S/PDIF
Nej

Interna kontakter

USB 2.0
4 st, 2 st interna kontakter
USB 3.0/3.1 Gen1
2 st, 1 st interna kontakter
USB 3.1 Gen1 Type-C
1 st, 1 st interna kontakter
4-pin fläkt
4 st
RGB-Header
Ja
TPM-kontakt
Ja
Seriellport
Ja
Strömkontakter ATX/EPS 12V
1 st 8-pin

Övrigt

Medföljande SATA 6 Gb/s
2 st
Längd
244 mm
Bredd
244 mm
Garanti
3 år

Artikelnummer

Paketbredd
27.2 cm
Pakethöjd
6.5 cm
Paketlängd
28 cm
Paketvikt
1.121 kg
Vårt ArtNr
1903311
Tillverkarens ArtNr
B550M PRO-VDH WIFI
Upplagd
2020-06-15 08:00
Releasedatum
2020‑06‑16 15:00
