Beräknade leveransdatum är preliminära och kan komma att justeras.
Detta är en LHR-modell (“Lite Hash Rate,” eller “LHR,”) som inte lämpar sig för mining.

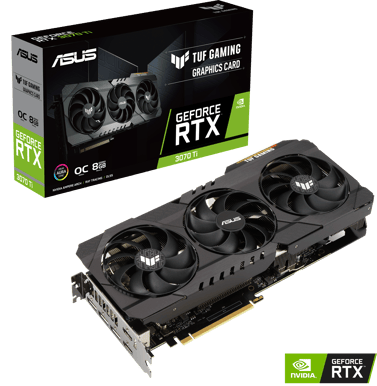

The TUF Gaming GeForce RTX™ 3070 Ti has been stripped down and built back up to provide more robust power and cooling. A new all-metal shroud houses three powerful axial-tech fans that utilize durable dual ball fan bearings. Fan rotation has been optimized for reduced turbulence, and a stop mode brings all three fans to a halt at low temps. Beneath, independent heatsinks for the GPU and memory keep thermals under tight control. Additional features, including TUF components, Auto-Extreme Technology, a new GPU bracket, and a backplate vent make the TUF a proper powerhouse. For builders looking for a new "old faithful", this card has your back.
- NVIDIA Ampere Streaming Multiprocessors: The building blocks for the world's fastest, most efficient GPUs, the all-new Ampere SM brings 2X the FP32 throughput and improved power efficiency.
- 2nd Generation RT Cores: Experience 2X the throughput of 1st gen RT Cores, plus concurrent RT and shading for a whole new level of ray tracing performance.
- 3rd Generation Tensor Cores: Get up to 2X the throughput with structural sparsity and advanced AI algorithms such as DLSS. These cores deliver a massive boost in game performance and all-new AI capabilities.
- Axial-tech fan design has been newly tuned with a reversed central fan direction for less turbulence.
- Dual ball fan bearings can last up to twice as long as sleeve bearing designs.
- Military-grade capacitors and other TUF components enhance durability and performance.
- GPU Tweak II provides intuitive performance tweaking, thermal controls, and system monitoring.
TUF Gaming cards leverage our tried-and-true Axial-tech fan design, with three fans working in tandem to satisfy the thermal demands of NVIDIA's new high-octane design. The fans rely on dual ball fan bearings to ensure consistent performance and increased longevity compared to sleeve bearings and other bearing types.
The two side fans spin counterclockwise to reduce turbulence. And to eliminate unnecessary noise, a stop mode halts all fans when the GPU temp falls below 50 degrees and power consumption is low.
To get heat into the heatsink array efficiently, so that it can be whisked away by the powerful Axial-tech fans, we use a manufacturing process that improves the surface smoothness of the heatspreader at the microscopic level. The extra flatness allows for better contact with the die, helping to enhance thermal transfer.
The heat spreader draws heat up into heatpipes that carry it through a fin stack that fills most of the card's large, 2.7-slot footprint. This generation of TUF Gaming graphics cards also feature a dedicated heatsink for VRAM to keep temperatures well under maximum operating specs.
Components are selected for TUF Gaming graphics cards based on their durability and performance. In addition to top-shelf chokes and MOSFETs, capacitors that meet military-grade certification make the TUF stand tall amongst the competition. The components are soldered to the PCB using our advanced Auto-Extreme automated manufacturing process. Smooth joints on the rear of the PCB and the elimination of human errors ensure each graphics card meets our rigorous specifications. Finally, to ensure flawless performance when it counts, the cards are subjected to a grueling 144-hour validation trial.
An all-aluminum shroud adds robust protection to TUF Gaming graphics cards and a no-nonsense industrial design and grayscale colorway fits into any build with ease.
It's Cooler Out Back
The underside of the card reveals a host of improvements. Most of the rear is swathed in a protective metal backplate that prominently features a wide vent. The vent allows hot air to escape towards chassis exhaust fans instead of being recycled back into the cooler. Beneath the GPU, a bracket provides consistent mounting pressure between the die and heat spreader. Stainless steel is used for the I/O bracket to protect ports and provide a more secure mount. A conveniently placed Dual Bios switch allows customization of the card's default performance profile without software.
The top-side RGB element can be customized to display a range of aesthetic and functional effects and also synced with other ASUS components to enable uniform lighting. To fulfill the power demands of the GeForce RTX 3070 Ti, two 8-pin connectors are present, along with onboard LEDs that light up if PSU PCIe power connectors are not plugged in correctly.
Fades in & out
Flashes on & off
Fades between the colors of rainbow
A display that mimic the nighttime sky
Changes color with CPU/ GPU load or temperature
Pulses to the beat of your music
Matches color to a selected region on your screen
Lighting is turned off
Harness the hardware
Hardware isn't the only area where research and development is being applied to take things to the next level. The ROG team has been building up the GPU Tweak II software utility to offer unique features along with the standard monitoring, tweaking, and tuning you expect. Like all of our premium graphics cards, the TUF Gaming GeForce RTX 3070 Ti is bundled with XSplit streaming software and wtfast's Gamers Private Network to make sure that your online experience is the best it can be.
NVIDIA AMPERE ARCHITECTURE
The all-new NVIDIA Ampere architecture delivers the ultimate play, featuring advanced 2nd generation Ray Tracing Cores and 3rd generation Tensor Cores with greater throughput.
RTX. IT'S ON.
Experience today's biggest blockbusters like never before with the visual fidelity of real-time ray tracing and the ultimate performance of AI-powered DLSS.
DLSS AI ACCELERATION
NVIDIA DLSS is groundbreaking AI rendering that boosts frame rates with uncompromised image quality using the dedicated AI processing Tensor Cores on GeForce RTX. This gives you the performance headroom to crank up settings and resolutions for an incredible visual experience. The AI revolution has come to gaming.
- GeForce RTX 3070 Ti
- 1 580 MHz
- 1 815 MHz
- Streamprocessorer / pipes
- 6 144 st
- 8 GB
- 19 000 MHz
- 256 bitar
- Ja, (2st, 2.1)
- Ja, (3st, 1.4a)
- Max. antal skärmar
- 4 st
- Rek. watt (dator)
- 750 W
- 2 st 8-pin
- 350 W
- 299.9 mm
- 51.7 mm
- 126.9 mm
- 2.7 st
- NVIDIA GeForce Experience
- PCI Express 4.0, 16x
- 3 år
- 23.3 cm
- 8.8 cm
- 40.5 cm
- 1.964 kg
- Vårt ArtNr
- Tillverkarens ArtNr
- 2021-06-24 11:01
