Fractal Design Focus G Svart

Låt din hårdvara glänsa

Focus G är hörnstenen för ditt bygge och visar din hårdvara på sättet den förtjänar tack vare mycket utrymme, goda kabeldragningsmöjligheter samt en stor fönstersida.

Focus G har plats för 165mm höga luftkylare, 380mm grafikkort, 230mm nätaggregat, upp till 6st fläktar (varav det medföljer 2st 120mm LED-fläktar), upp till 3st 2.5" respektive 2st 3.5" hårddiskar (vibrationsdämpande burar) samt två stycken 5.25" enheter.

Plats för en 280mm radiator i fronten samt en 240mm i toppen.

The new Focus G series from Fractal Design is the cornerstone for your PC build, showcasing the hardware aesthetics at the heart of your system with elegant accents and sophisticated style.

Contemporary ATX case design accommodates high-performance components with smart and efficient space utilization for a compact footprint.

Extensive cooling options are available with support for tall CPU heatsink/fan combos and water cooling with multiple dual-fan radiators.

Filtered front, top and base air intakes maintain a dust-free environment while expert cable management options keep wiring tidy.

With edge-to-edge visibility, clean contemporary styling and two Silent Series LED fans, the Focus makes your hardware the center of attention.



Key features

  • Available in Black, White, Petrol Blue, Mystic Red, and Gunmetal Gray
  • Large windowed side panel

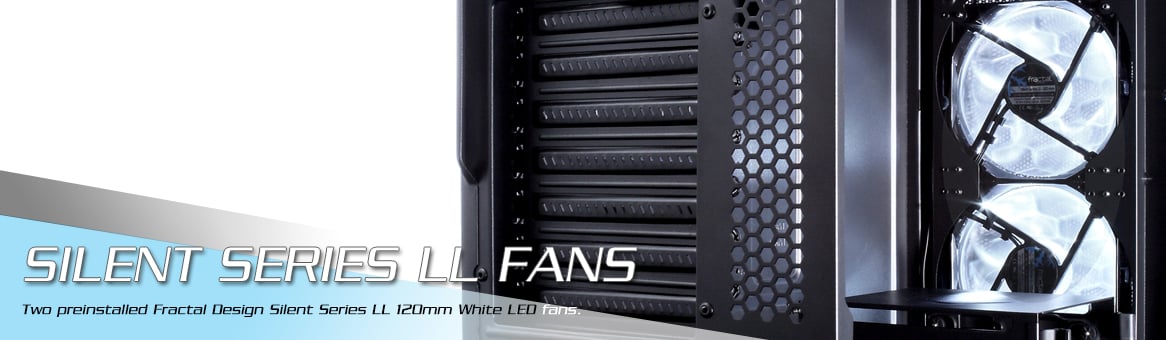

  • Two preinstalled Fractal Design Silent Series LL 120mm White LED fans
  • Six total fan positions for high-airflow capability

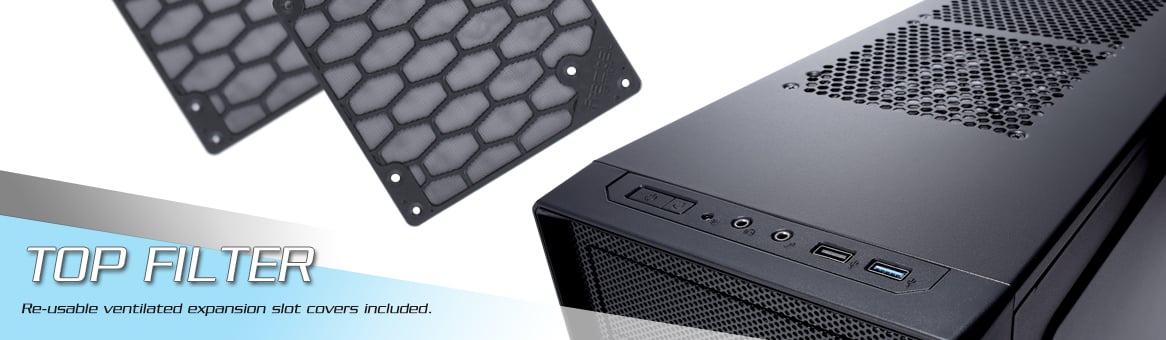

  • Filtered front, top and base air intakes for a dust free interior
  • Support for high-profile CPU coolers and multiple radiator configurations
  • 18 - 25 mm of space for cable routing behind the motherboard plate
  • Support for graphics cards up to 380 mm long without compromising hard drive space

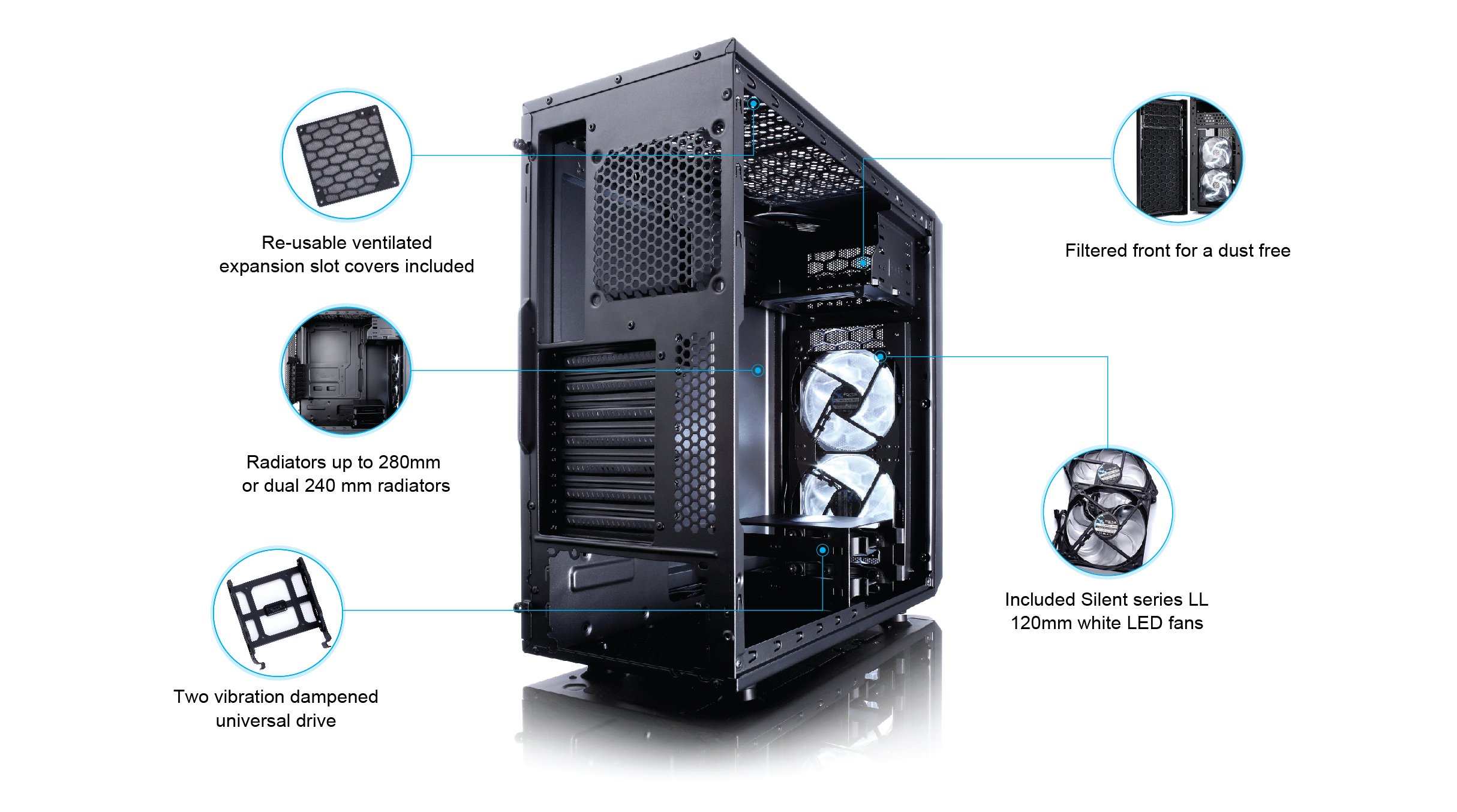

  • Two vibration dampened universal drive bays with support for6TB+ HDDs and 15mm SSDs, plus an additional 2.5" mount behind the motherboard tray

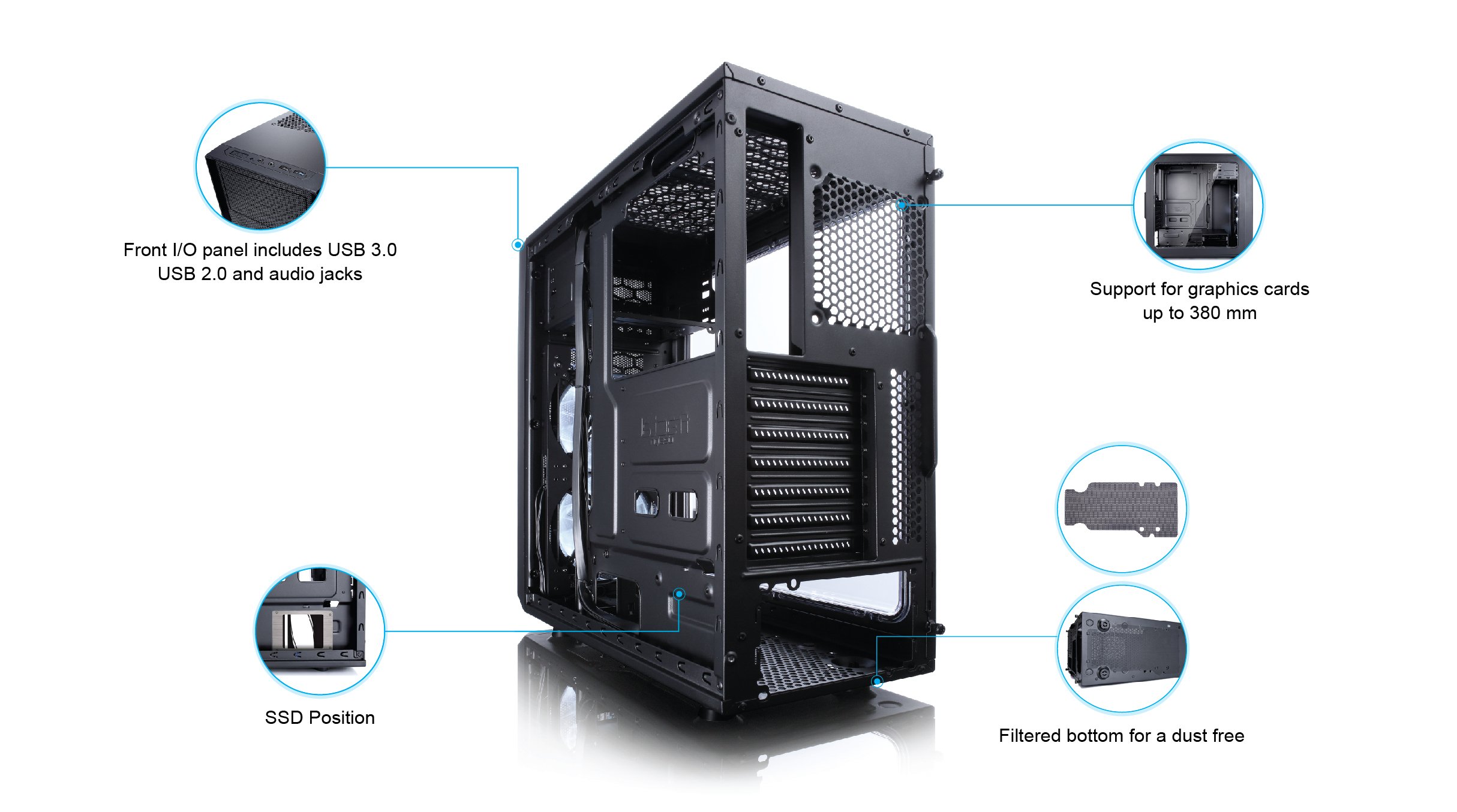

  • Front I/O panel includes USB 3.0, USB 2.0 and audio jacks
  • Kensington anti-theft padlock bracket and re-usable ventilated expansion slot covers included



Specification

  • Colors available: Multiple colors
  • Side panel window: Large
  • 3.5" or 2.5" Drive capacity: 2
  • Dedicated 2.5" drive capacity: 1
  • Expansion slots: 7
  • Motherboard compatibility: ATX, mATX, ITX
  • Power supply type: ATX
  • Total fan mounts: 6
  • Front fan: 2x 120 or 2x 140 2x Silent Series LL 120mm LED fans included
  • Top fan: 2x 120
  • Rear fan: 1x 120
  • Bottom fan: 1x 120
  • Side fan: No
  • Dust filters: Top fans Bottom fan + PSU Front fans
  • Front radiator: 120/240mm 140/280mm Limitation: 280 requires that the bottom 5.25" slot is unused
  • Top radiator: 240mm
  • Rear radiator: 120mm (max width 120mm)
  • Power supply depth limit: Maximum 230mm
  • Graphics card length limit: 380mm
  • CPU cooler height limit: 165mm
  • Cable routing: 18-25 mm space
  • Cable routing grommets: No
  • Fixed velcro straps: No
  • Padlock and Kensington lock support: Yes
  • Captive thumbscrews: Both side panels


  • Package contents

    • Focus G computer case
    • User manual
    • Accessory box

    Specifikationer

    Färg
    Svart
    Formfaktor
    ATX
    Moderkortsstöd
    ATX, mATX, Mini-ITX
    Ljuddämpad
    Nej
    Fönstersida
    Ja
    LED-belysning
    Ja
    Dammfilter
    Ja
    Expansionsplatser
    7 st

    Hårddisk / Optisk media

    2.5" (standard)
    1 st
    Delade 2.5"/3.5" (standard)
    2 st
    5.25" platser (standard)
    2 st

    Frontpanel

    Ljudutgång (3.5mm)
    Ja
    Mikrofoningång (3.5mm)
    Ja
    USB 2.0
    1 st
    USB 3.0/3.1 Gen 1
    1 st

    Fläktar / Fläktplatser

    Medföljande fläktar
    2 st 120mm, (Silent LL Vit LED)
    Fläktplatser fram
    2 st 120/140mm
    Fläktplatser bak
    1 st 120mm
    Fläktplatser topp
    2 st 120/140mm
    Fläktplatser botten
    1 st 120mm

    Vattenkylning

    Radiator fram (max)
    240mm, 280mm
    Radiator bak (max)
    120mm
    Radiator topp (max)
    240mm

    Mått och vikt

    Max höjd CPU-kylare
    165 mm
    Max längd PSU
    230 mm
    Formfaktor PSU
    ATX PS2
    Max längd grafikkort (standardutförande)
    380 mm
    Bredd
    205 mm
    Djup
    464 mm
    Höjd
    444 mm
    Vikt
    4.5 kg

    Övrigt

    Garanti
    3 år

    Artikelnummer

    Paketbredd
    27.6 cm
    Pakethöjd
    53.8 cm
    Paketlängd
    50.1 cm
    Paketvikt
    6.418 kg
    Vårt ArtNr
    6902329
    Tillverkarens ArtNr
    FD-CA-FOCUS-BK-W
    Upplagd
    2017-05-24 15:00
    Produktblad
