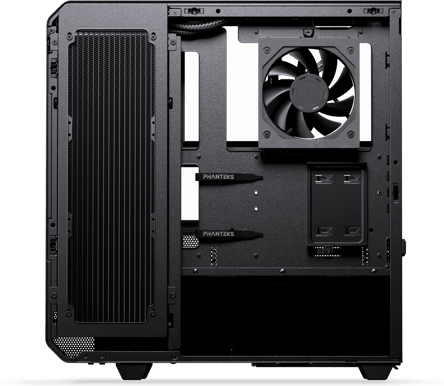

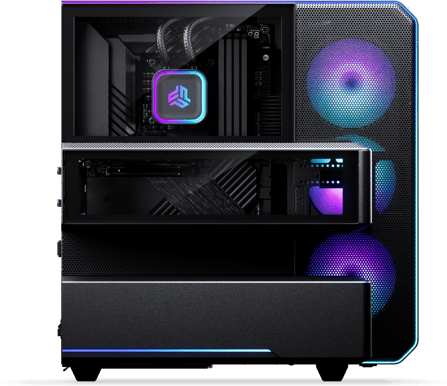

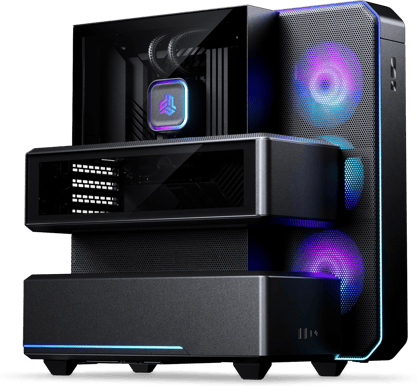

Phanteks EX5 PLUS Svart
Integrerad 360 mm AIO-kylning för ett svalt och högpresterande bygge
Snabbfakta
- SidopanelGlas
- ModerkortsstödATX, mATX, Mini-ITX
- LjuddämpadNej
- Medföljande fläktar4 st 120mm
- Max längd grafikkort (standardutförande)358 mm
Lagerinformation
Webblager
Butikslager
Köpinformation
Betala senare
Mer infoTillbehör
4,8 av 5 stjärnor.
4,7 av 5 stjärnor.
4,8 av 5 stjärnor.
4,8 av 5 stjärnor.
Hajps (12)
Flikar - Mer info (markerad), Specifikationer, Jämför, Frågor och svar

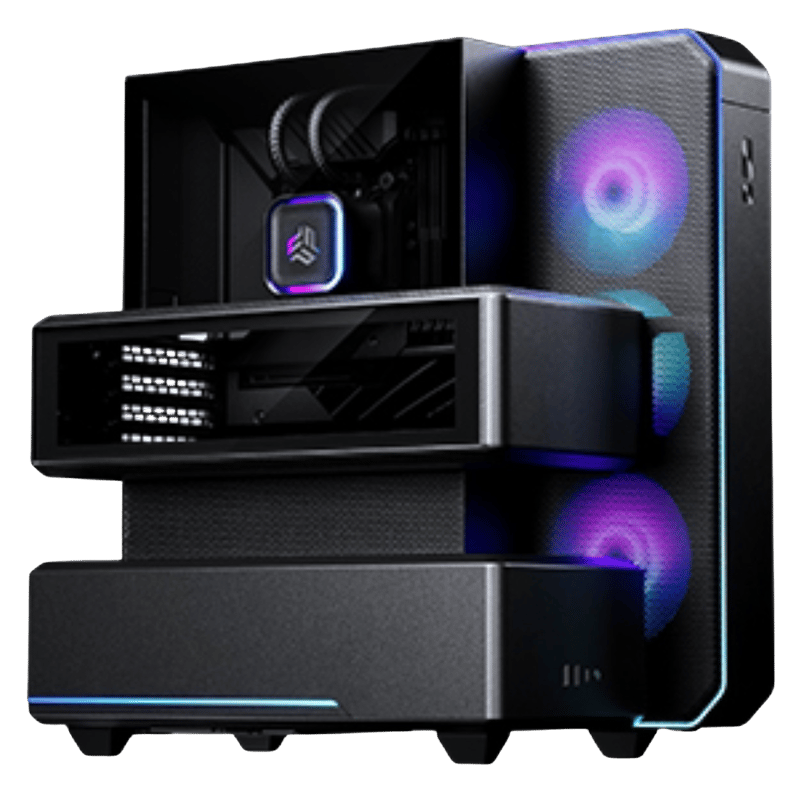

EX5 PLUS
DESIGNED FOR A “NO-TUBES” AESTHETIC
EX5 PLUS adds an integrated custom ARGB 360 AIO with hidden 90-degree tubing for a cleaner build and easier assembly. Its chambered airflow design isolates the CPU, GPU, and PSU to provide non-recirculating fresh air for cooler, more stable performance. The compartmentalized layout features a rear-mounted cooling fan for the mainboard, VRM, and SSD, a tempered-glass GPU showcase, and ATX-standard compatibility.
EX5 PLUS
- Pre-installed custom 360 AIO liquid cooler with ARGB cap.
- Designed for a “no-tubes” aesthetic.Tubes are routed inside the chassis.
- The unique compartmentalized design offers each component direct fresh air.
ABOUT PHANTEKS
We strive to develop top-quality and superior products, this is why we are continuously pursuing excellence in developing new products to bring satisfaction to PC enthusiasts and computer users.

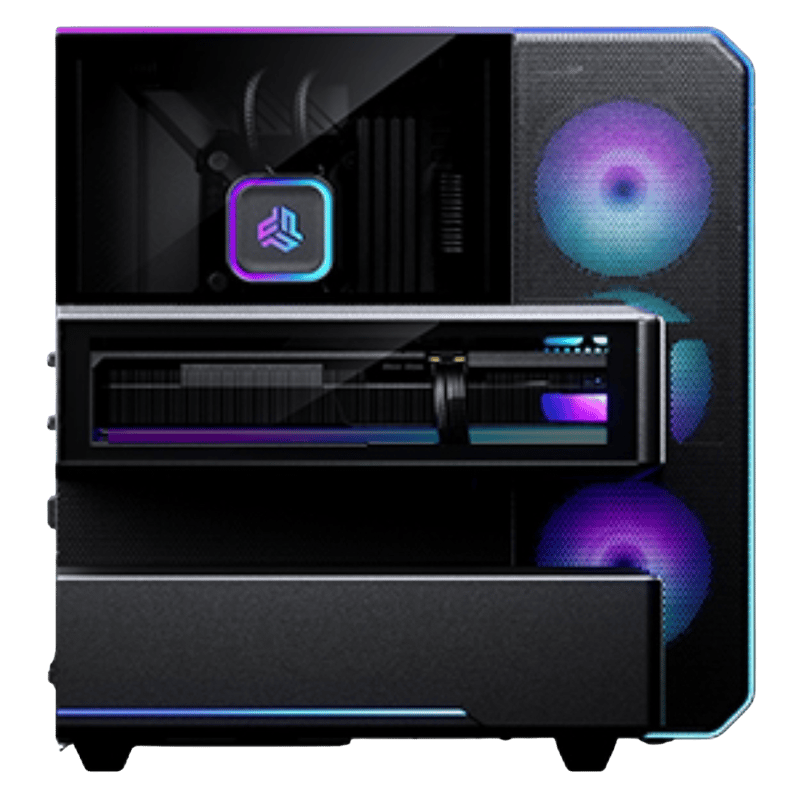

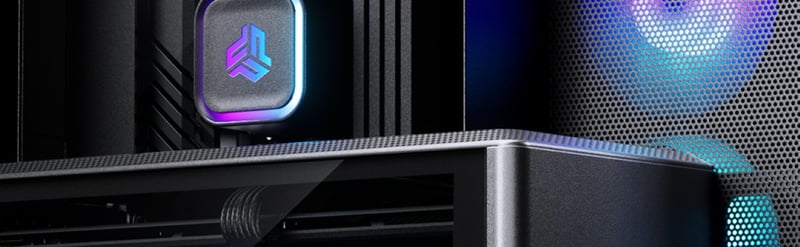

PRE-INSTALLED CUSTOM 360 AIO LIQUID COOLER
• Designed for a “no-tubes” aesthetic tubes are routed inside the chassis
• Tempered glass views for GPU and mainboard

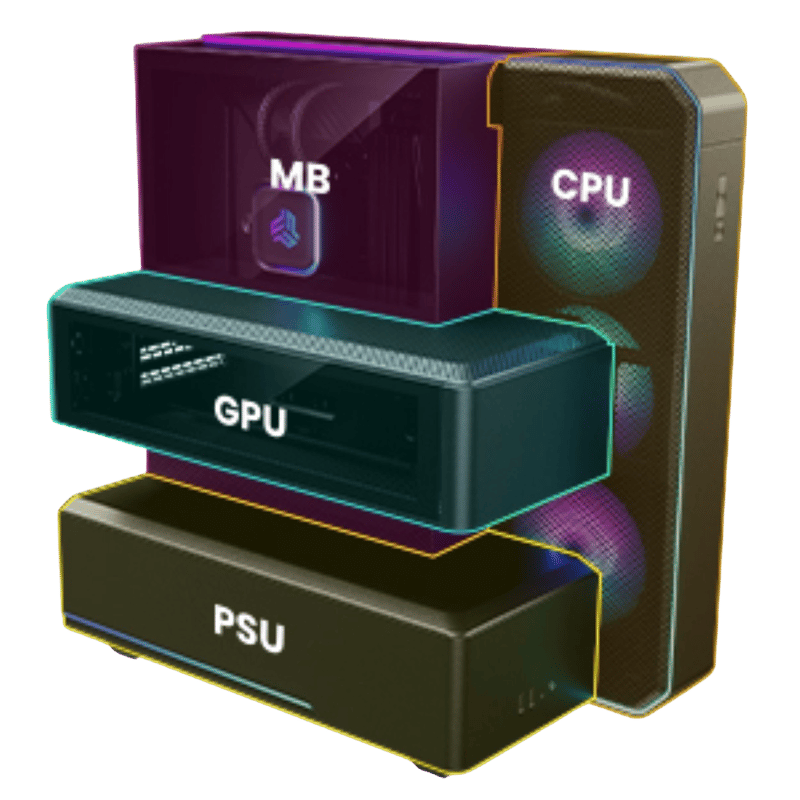

COMPARTMENTALIZED LAYOUT DESIGN
• Thermal zone isolation with dedicated chambers, prevents ambient heat bleed between components

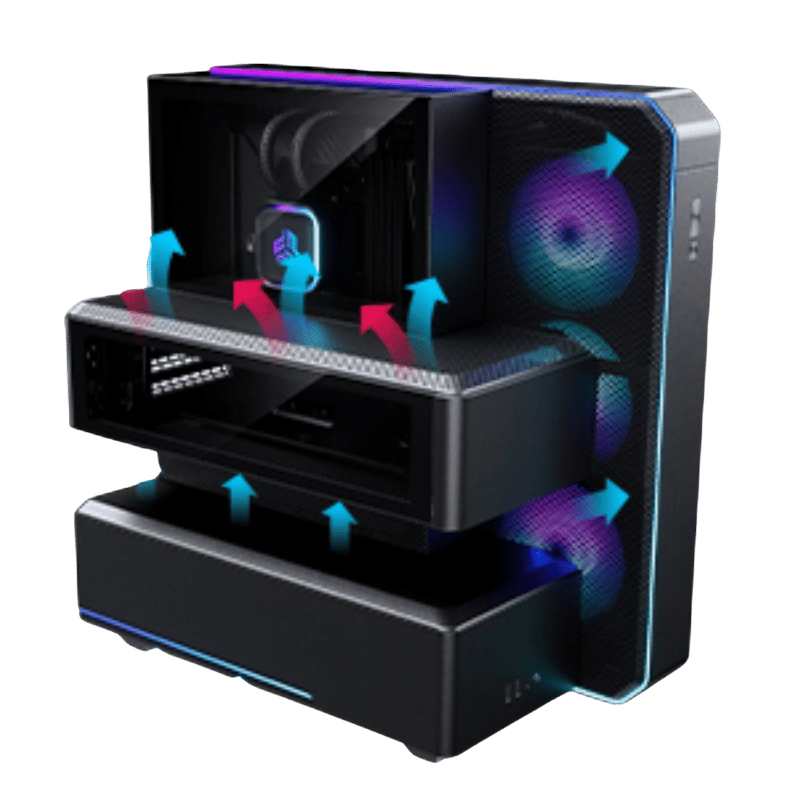

DIRECT-PATH AIRFLOW EFFICIENCY
• Smooth intake-to-exhaust paths maximize cooling • Optimized cooling efficiency

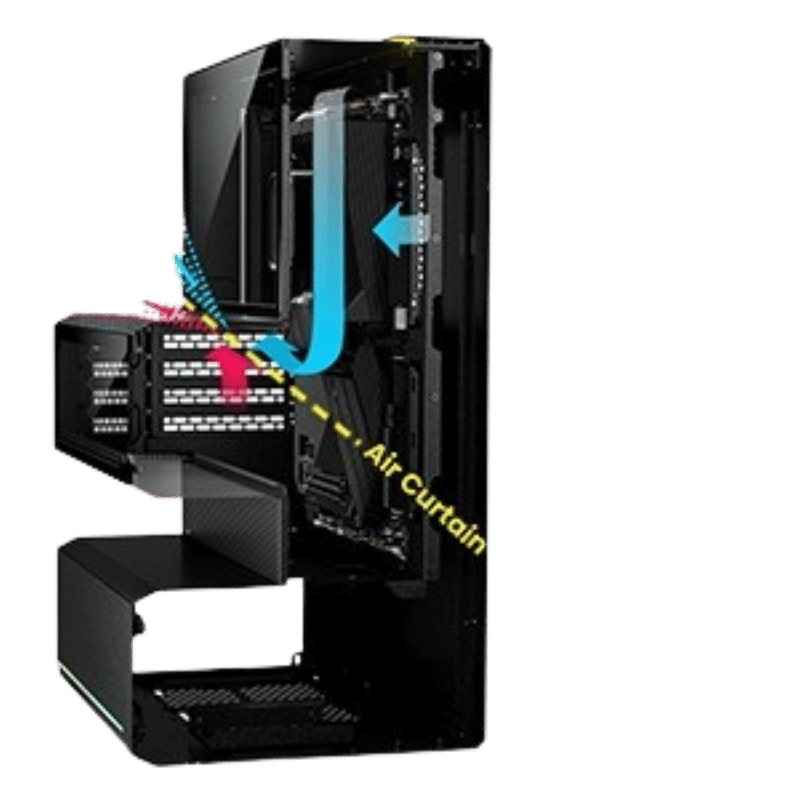

THE “AIR CURTAIN” EFFECT
• A targeted rear mainboard fan creates an active barrier of airflow that blocks GPU heat from bleeding into the mainboard area
• Continuous airflow over VRMs, system RAM, and M.2 storage for maximum thermal efficiency

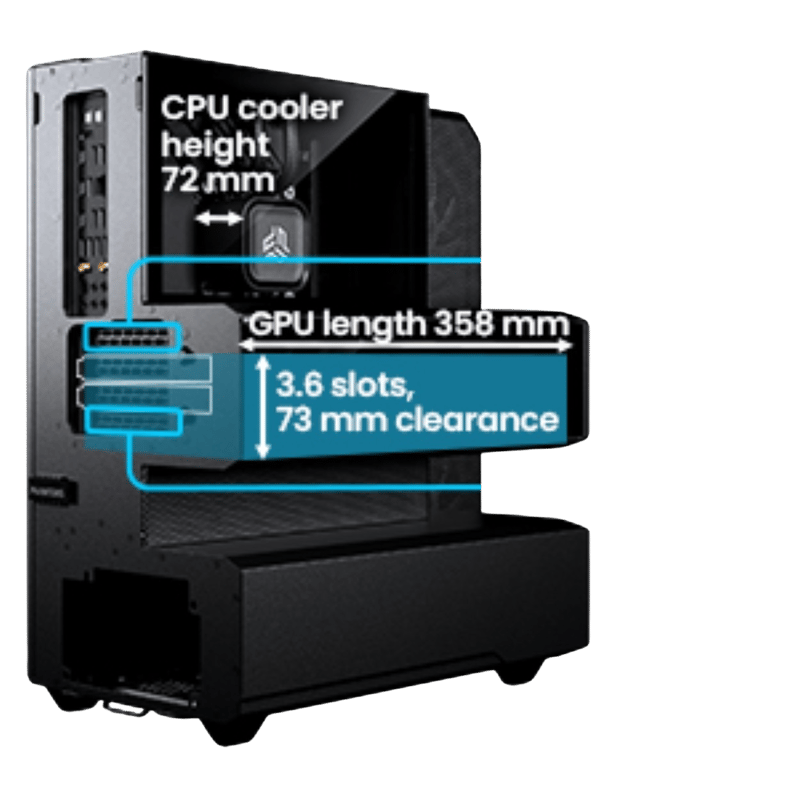

ULTIMATE GPU & CPU COOLER FLEXIBILITY
• Fits 3.6-slot, 358mm GPUs in the vast majority of configurations with standard PCIe slot 2 mainboards.
*Note: Verify your mainboard’s primary PCIe slot position and GPU dimensions prior to assembly to ensure exact slot clearance.

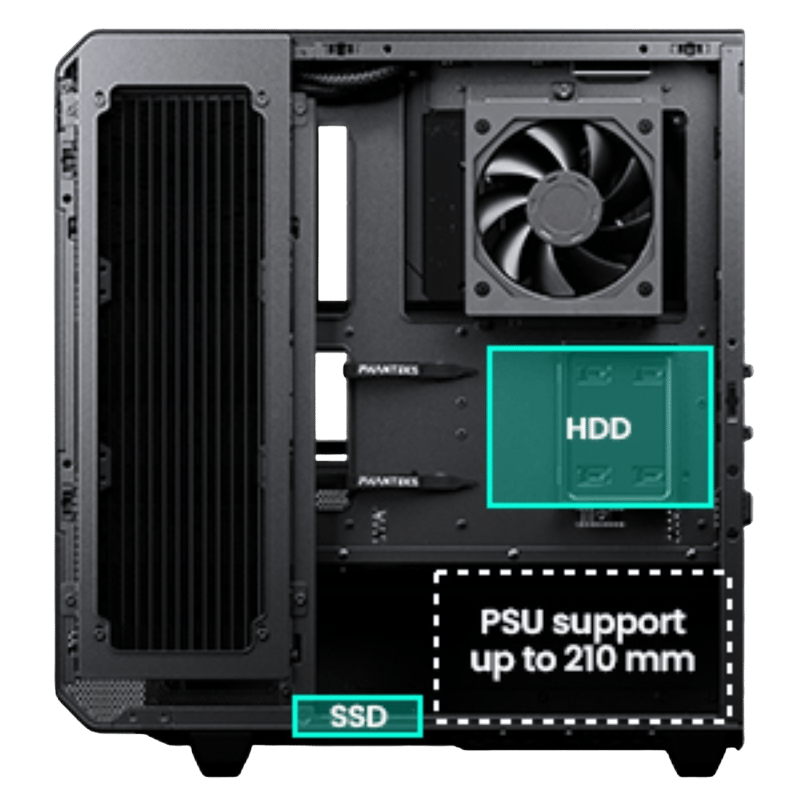

EFFORTLESS CABLE MANAGEMENT
• Ample room and features for easy cable management
• 1x 3.5” HDD + 1x 2.5” SSD support
- Färg
- Svart
- Formfaktor
- ATX
- Sidopanel
- Glas
- Moderkortsstöd
- ATX, mATX, Mini-ITX
- Ljuddämpad
- Nej
- Typ av sidopanel
- Solid, Glas klar
- Meshfront
- Nej
- Dammfilter
- Ja
- Fläktkontroller
- Nej
- Expansionsplatser
- 4 st
Hårddisk / Optisk media
- 2.5" (standard)
- 1 st
- 3.5" (standard)
- 1 st
Frontpanel
- Ljudutgång (3.5mm)
- Ja, Kombinerad ljud/mikrofon
- Mikrofoningång (3.5mm)
- Ja, Kombinerad ljud/mikrofon
- USB 3.0/3.1 Gen 1
- 2 st, 1 st interna kontakter
- USB 3.1 Gen2 Type-C
- 1 st, 1 st interna kontakter
- Resetknapp
- Ja
Fläktar / Fläktplatser
- Medföljande fläktar
- 4 st 120mm
- Fläktplatser sidan
- 4 st 120mm
Vattenkylning
- Radiator sidan (max)
- 240mm, 360mm
Mått och vikt
- Max höjd CPU-kylare
- 72 mm
- Max längd PSU
- 210 mm
- Formfaktor PSU
- ATX PS2
- Max längd grafikkort (standardutförande)
- 358 mm
- Bredd
- 234 mm
- Djup
- 449 mm
- Höjd
- 474 mm
- Vikt
- 9,35 kg
Övrigt
- Modell
- Plus
- Tillverkarens garanti
- 5 år
Artikeldata
- Paketbredd
- 51,9 cm
- Pakethöjd
- 31,5 cm
- Paketlängd
- 55,6 cm
- Paketvikt
- 11,06 kg
- Vårt ArtNr
- 6907758
- Tillverkarens ArtNr
- PH-EX526P_DBK01
- Upplagd
- 2026-09-10 11:25
- Releasedatum
- 2026‑10‑01
- Produktblad
